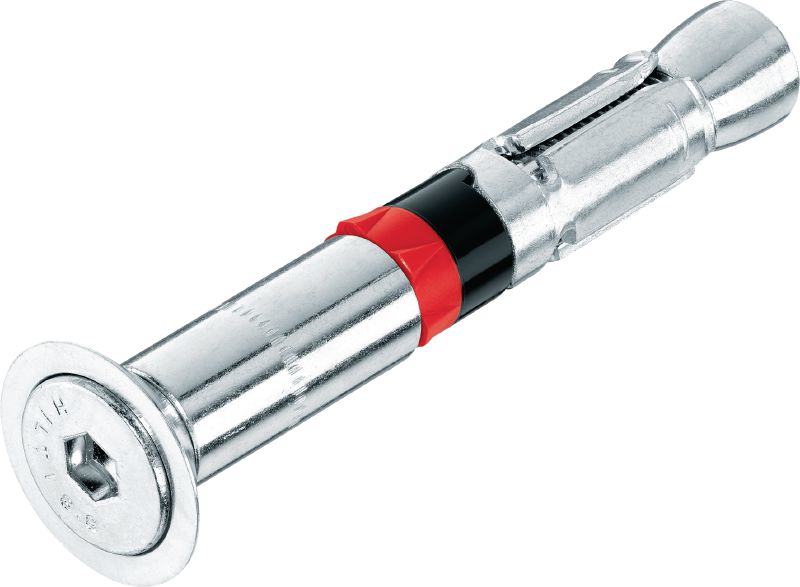

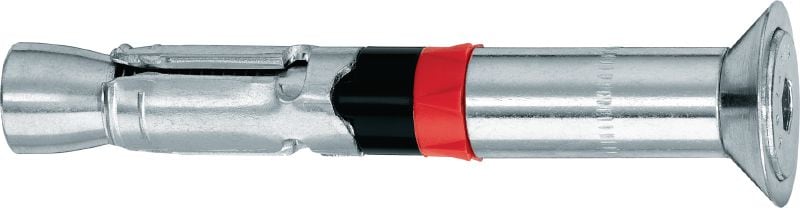

HSL4-SK Heavy-duty wedge anchor
Ultimate-performance heavy-duty wedge anchor with approvals for flush-mount fastenings in concrete (carbon steel, countersunk)
- Head configuration: Countersunk
- Approvals / test reports: ETA, Fire, ICC-ES report (concrete), LABC, Nuclear (NQA-1), Seismic
- Base materials: Concrete (cracked), Concrete (uncracked)
Technical Data
Head configuration
Countersunk
Approvals / test reports
ETA, Fire, ICC-ES report (concrete), LABC, Nuclear (NQA-1), Seismic
Base materials
Concrete (cracked), Concrete (uncracked)
PROFIS software
Yes
Documents
Features & Applications
Features
- Aesthetic appearance and no tripping hazard due to flush installation
- High tensile and shear load capacity, force-controlled expansion allows follow-up expansion
- ETA Option 1 for cracked and uncracked concrete
- ICC-ES/AC 193 for cracked and uncracked concrete and seismic
- Suitable for dynamic loading including fatigue, seismic and shock
Applications
- Fastenings in safety-relevant and/or dynamic applications where a flush installation or aesthetic appearance is required, including applications in nuclear power plants
- Applications where extensive approval back-up or technical back-up is required
- Examples are medical equipment, hand rails, machines, car hoists, safety fences, pumps, etc.
- Applications requiring an aesthetic countersunk head finish
For approval or certificate information, please see individual items.
