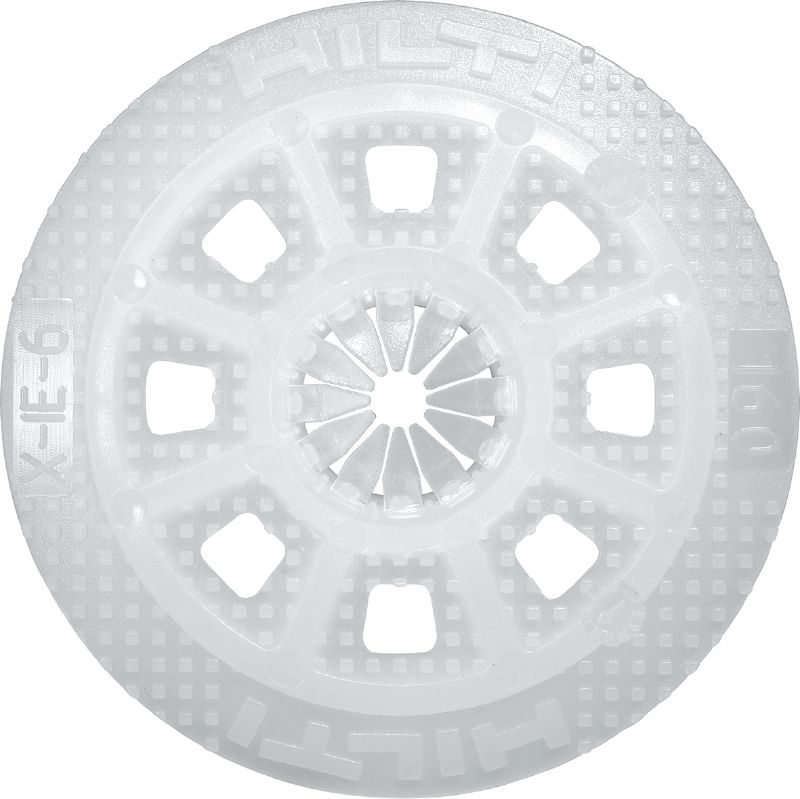

X-IE 6 Insulation fastener
White insulation fastener for EPS board on concrete
- Application: Rigid Board Insulation, Mineral Wool Insulation
- Insulation material: Mineral wool, Soft board (e.g. EPS), Hard board (e.g. XPS, PUR, PIR)
- Base materials: Concrete (soft), Concrete (tough), Concrete (uncracked), Steel, Masonry (solid limestone brick)
ultimate
Customers also searched for insulation fastener, insulating ceilings, insulating panels, direct fastening or insulating.
Technical Data
Application
Rigid Board Insulation, Mineral Wool Insulation
Insulation material
Mineral wool, Soft board (e.g. EPS), Hard board (e.g. XPS, PUR, PIR)
Base materials
Concrete (soft), Concrete (tough), Concrete (uncracked), Steel, Masonry (solid limestone brick)
Approvals
ITB
For use with (tools)
DX-IE
Minimum thickness of base material (concrete)
80 mm
Minimum thickness of base material (steel)
4 mm
Material
High-density polyethylene (HDPE), Halogen-free, Silicone-free
Colour
Colourless
Product class
Ultimate
Documents
Features & Applications
Features
- Extremely quick insulation fastening system – up to five times faster than conventional methods
- High-strength fastener with low failure rate
- Collapsible section: no crushing of the insulation material
- Excellent thermal efficiency in a one-step solution – no cap is required
- Gauge included for easy visual control of correct fastener driving depth
Applications

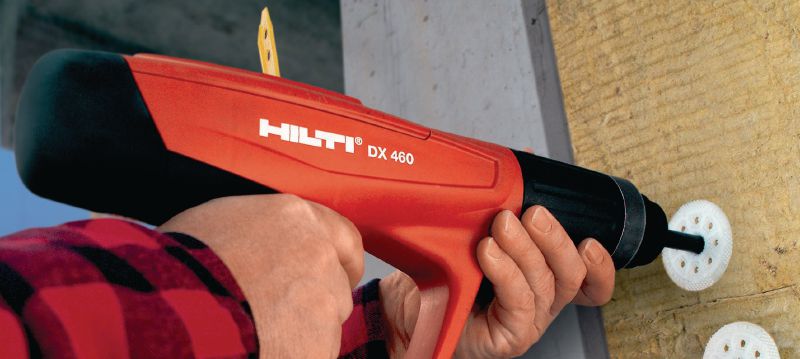

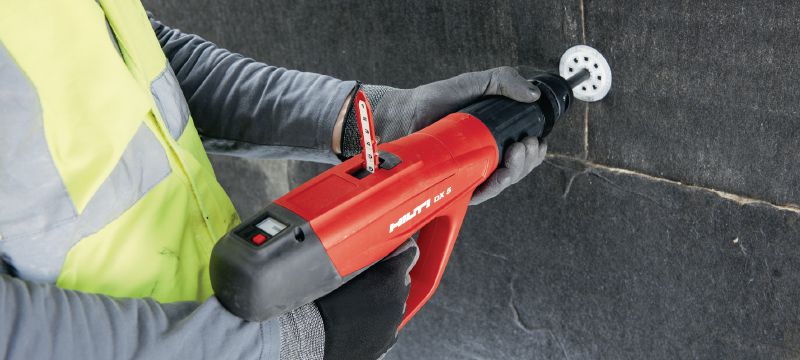

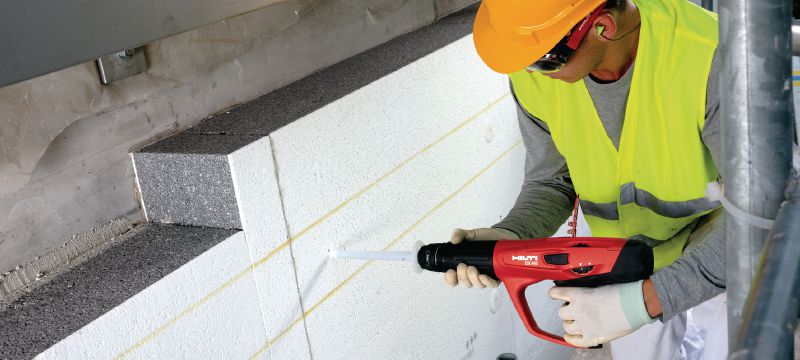

- Fastening insulation on facades

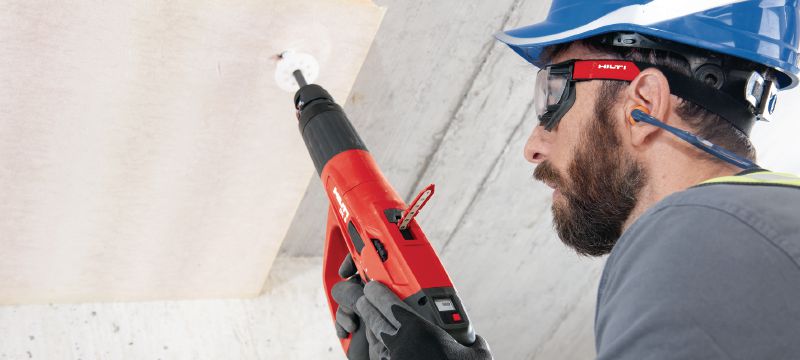

- Fastening insulation on ceilings

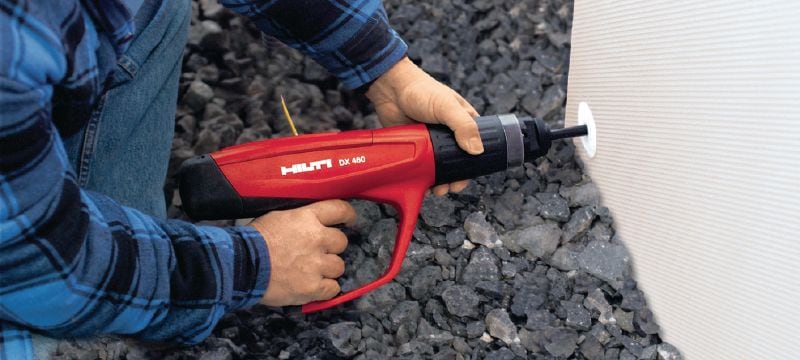

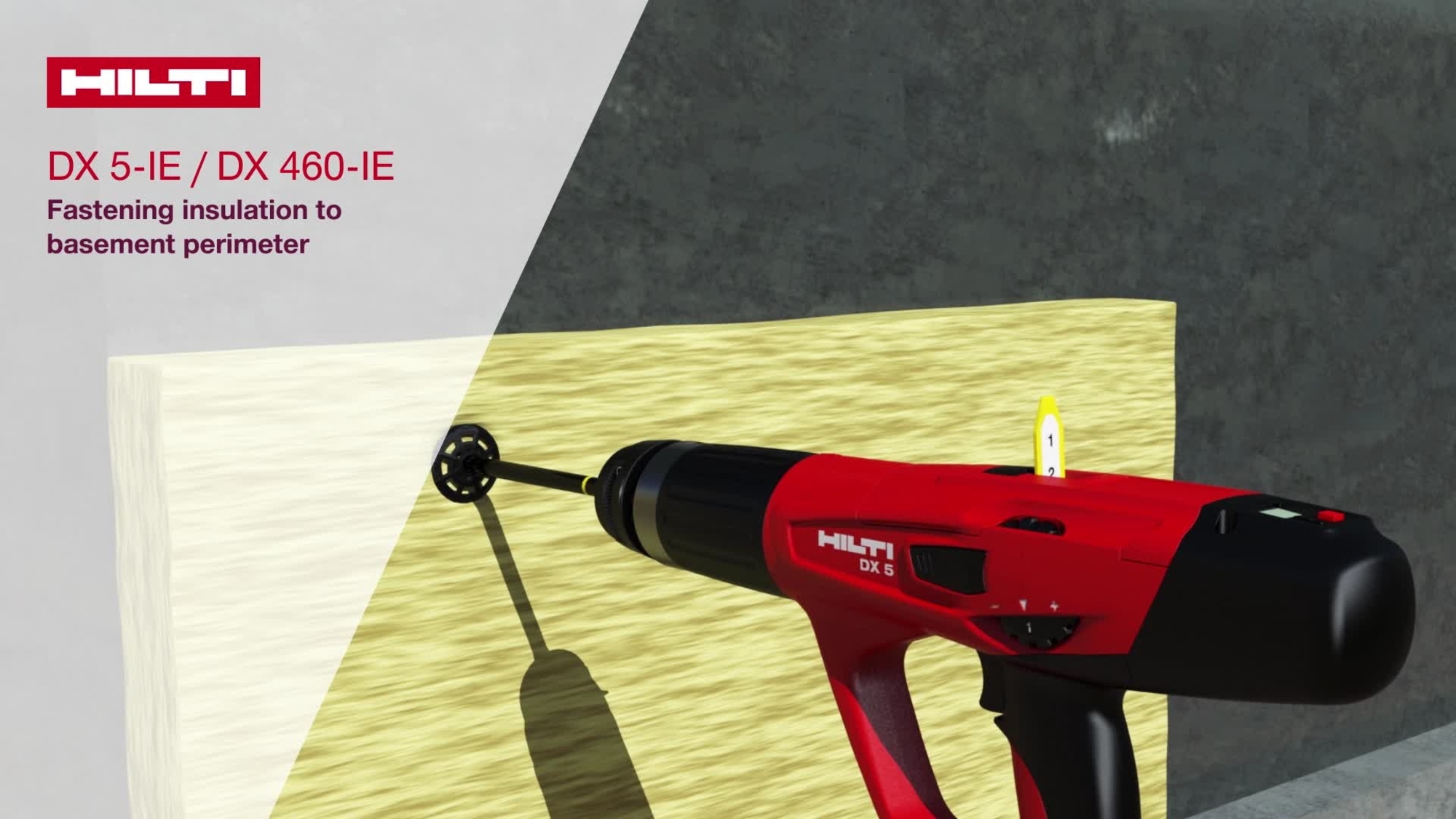

- Fastening insulation on cellar exteriors
- Fastening mineral wool insulation
- Suitable for non ETICS insulation applications
For approval or certificate information, please see individual items.
