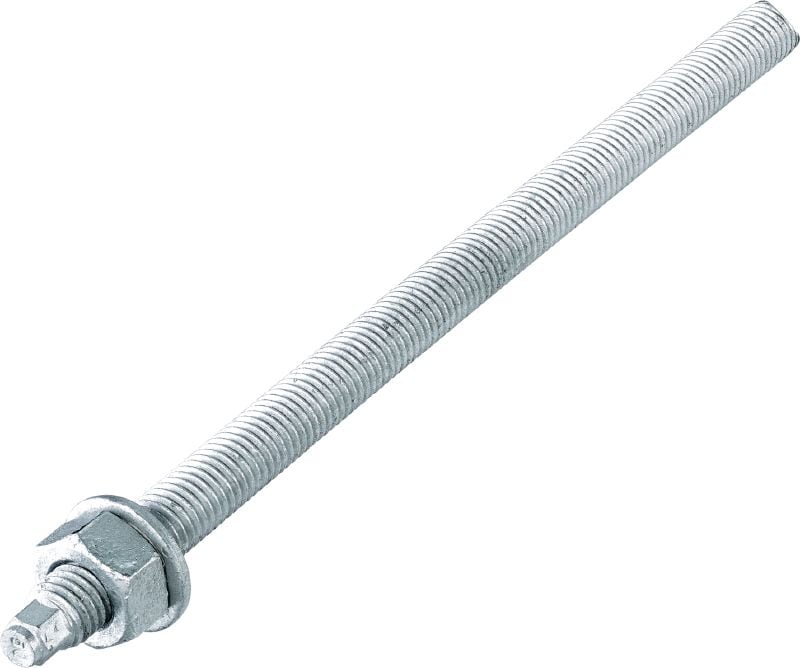

HAS-U 5.8 HDG Anchor rod

High-performance anchor rod for capsule and injectable hybrid/epoxy anchoring in concrete and masonry (5.8 carbon steel, hot-dip galvanised)

  • Material, corrosion: Carbon steel, HDG (hot-dip galvanised)/sherardised
  • Environmental conditions: Indoor with temporary condensation, Outdoor (more than 1km to coast)
  • Base materials: Concrete (cracked), Concrete (non-cracked), Masonry (hollow), Masonry (solid)

Technical Data

Material, corrosion
Carbon steel, HDG (hot-dip galvanised)/sherardised
Environmental conditions
Indoor with temporary condensation, Outdoor (more than 1km to coast)
Base materials
Concrete (cracked), Concrete (non-cracked), Masonry (hollow), Masonry (solid)
PROFIS software
Yes
Approvals / test reports
ETA

Documents

Features & Applications

Features

  • Head marking for easy verification of steel grade and rod length, even after installation
  • Chisel-tip anchor rod for use with HVU2 adhesive capsules and for easy insertion when using with Hilti HIT injectable adhesive anchors
  • Replaces HIT-V and HAS / HAS-E rods
  • Large range of anchor rod diameters (M6-M39)
  • Custom lengths and additional diameters up to M39 available upon request

Applications

  • Fastenings in concrete and masonry in combination with compatible Hilti HIT adhesive anchoring systems

For approval or certificate information, please see individual items.
