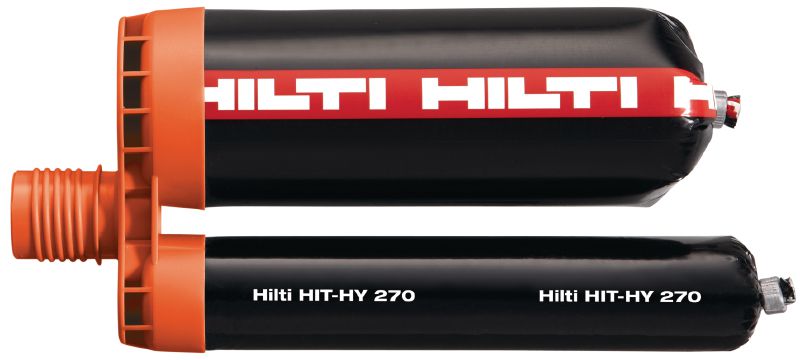

HIT-HY 270 Adhesive anchor

Ultimate-performance injectable hybrid mortar with approvals for fastening and retrofitting in hollow and solid masonry

  • Base materials: Masonry (hollow), Masonry (solid)
  • Base material condition: Dry, Wet
  • Approvals / test reports: ETA

Technical Data

Base materials
Masonry (hollow), Masonry (solid)
Base material condition
Dry, Wet
Approvals / test reports
ETA
PROFIS software
Yes
Anchoring elements
AM rods, HIT-SC mesh sleeves, HIT-V threaded rods
Environmental conditions
Dry indoor, Indoor with temporary condensation, Outdoor (more than 1km to coast)
Cleaning procedures
Manual cleaning
Storage and transportation temperature range
5 - 25 °C
In-service temperature – range
-40 - 80 °C
Free of styrene
Yes

Documents

Features & Applications

Features

  • Seismic ETA masonry approval, new TR053 and technical data available – significantly increases your flexibility when designing steel-to-masonry connections
  • Simplify code-compliant design – design fastenings in masonry, including under seismic loads, with greater speed and ease using the PROFIS Engineering software suite
  • Compatible with HIT-SC composite sleeves for use in hollow base materials – offering greater flexibility through use of multiple sleeve combinations and also minimising mortar waste by allowing more accurate dosing
  • On-site anchor testing available – request Hilti’s on-site anchor testing service for verification of both tensile and shear loads in both horizontal and vertical directions

Applications

  • Fastening structural steel to hollow and solid masonry
  • Cost-effective seismic retrofitting and structural strengthening of old masonry walls
  • Refurbishment and renovations of older masonry buildings
  • Heavy bracing of items such as sunshades on insulated materials
  • Fastening glass balustrade assemblies

For approval or certificate information, please see individual items.
