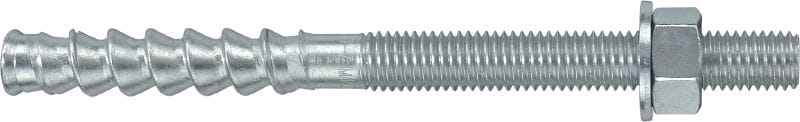

Ultimate-performance anchor rod for injectable hybrid anchors (carbon steel)

  • Material, corrosion: Carbon steel, zinc-plated
  • Environmental conditions: Dry indoor
  • Base materials: Concrete (cracked), Concrete (non-cracked)

Customers also searched for chemical anchorThreaded rodChemical boltAnchor bolt or I-bolt.

Choose options

Quantity
Total Pieces
NaN
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

No products available

Please Contact us to find a solution.

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Environmental conditions
Dry indoor
Base materials
Concrete (cracked), Concrete (non-cracked)
PROFIS software
Yes
Approvals / test reports
ETA, ICC-ES report (concrete), Seismic
Cleaning procedures
Non-cleaning
Type of fastening
Pre-fastening, Through-fastening

Documents

Features & Applications

Features

  • Suitable for very high loads in cracked concrete and seismic applications according to ICC-ES and ETA C2 approvals
  • No hole cleaning required (above 5°C/ 41°F) with HIT-HY 200
  • More reliable and productive solution thanks to potential elimination of the hole cleaning process
  • Variable depth of embedment to fully utilise the anchor capacity
  • Head marking for easy verification of rod length, even after installation

Applications

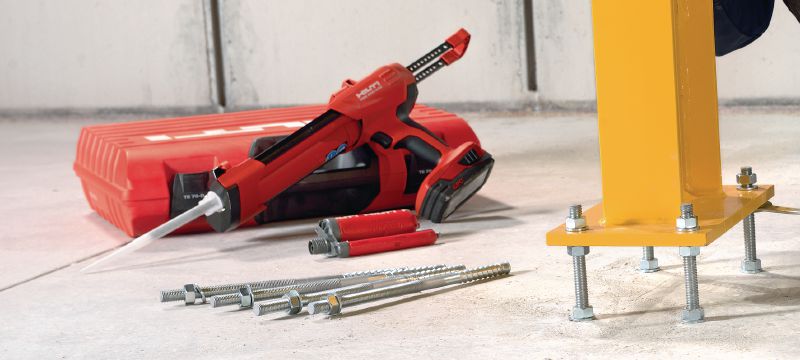

  • Fastenings in cracked and uncracked concrete made with Hilti HIT-HY 200
  • Seismic anchoring applications (e.g. bracing of reinforced concrete buildings)

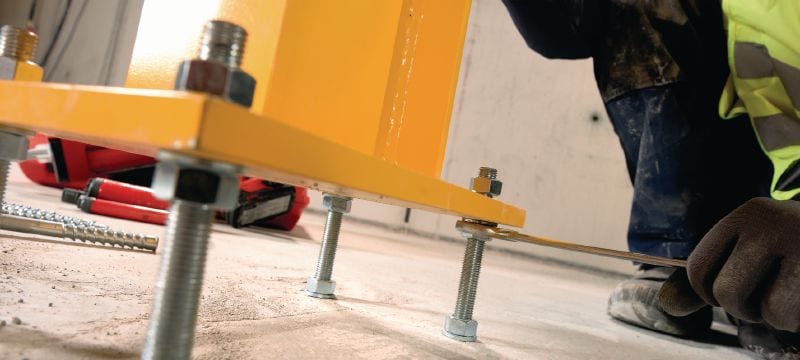

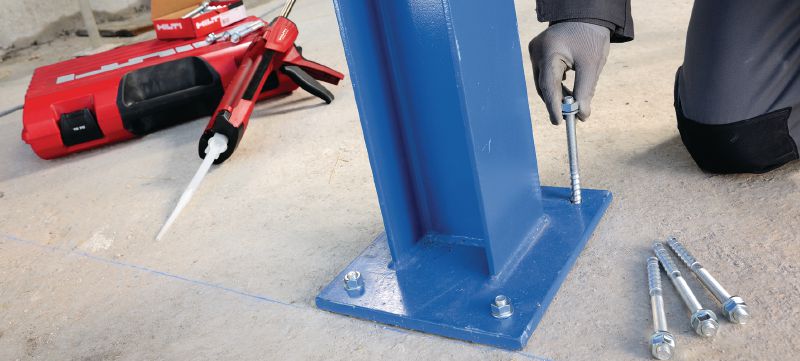

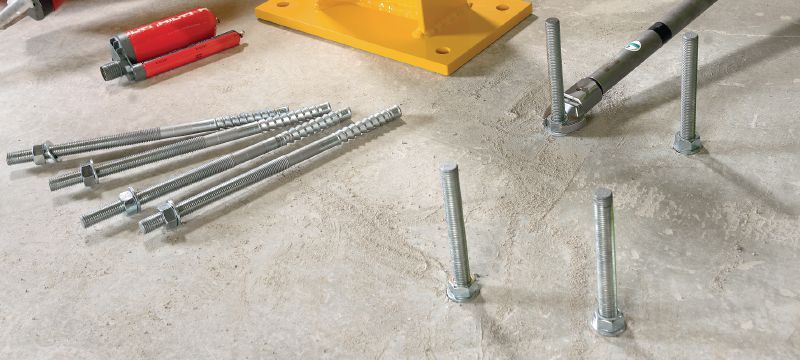

  • Anchoring structural steel connections (e.g. steel columns, beams)
  • Anchoring secondary steel structures (e.g. racking, guard rails, sound barriers)
  • Anchoring safety barriers, balustrades, fire escape staircases

For approval or certificate information, please see individual items.
