HIT-Z Anchor rod

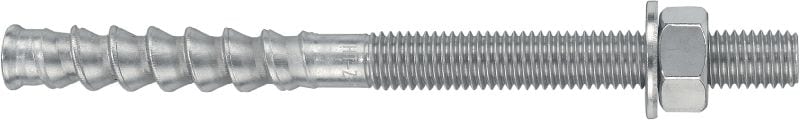

Anchor rod HIT-Z-R M20x215 #2018438

70038.tif

High-performance cone-shaped anchor rod for use with injectable mortars for fastenings in concrete

  • Material, corrosion: Carbon steel, zinc-plated, Stainless steel, A4, Carbon steel, Multilayer coating
  • Drill bit diameter: 22 mm
  • Useable thread length: 91 mm

Choose options

Material composition
  • Steel, A4 (SS316)
Anchor size
  • M20
Anchor length
  • 215 mm
Head configuration
  • Externally threaded
Pack size
  • 6 pc
 Product options
Quantity
Packs
Total Pieces
6
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
SR 1,046.40
SR 174.40
/
1 Piece

Technical Data

Material, corrosion
Carbon steel, zinc-plated, Stainless steel, A4, Carbon steel, Multilayer coating
Drill bit diameter
22 mm
Useable thread length
91 mm
PROFIS software
Yes

Documents

pdf ETA 11/0354 for HIT-CT 1 injection mortar for anchoring applications, English [ 868.2 KB ]
pdf ETA-11/0493_HIT-HY 200-A_Anchor_EC2&TR055_50&100years_122020, English, German, Polish [ 7 MB ]
pdf ETA 12/0006 for HIT-HY 200-A injection mortar and HIT-Z(-F)(-R) rod for anchoring applications, English, German, Polish [ 9.1 MB ]
pdf ETA-19/0632 HIT-HY 200-A/R V3 with HIT-Z Anchor, English, German, Polish [ 19.5 MB ]
pdf ETA-19/0802 HIT-HY 200-A/R V3 with HIT-Z(-R)-D TP Jul-2023 (dynamic), English, German, Polish [ 6.7 MB ]

Features & Applications

Features

  • High-performance in cracked concrete and seismic applications (ICC-ES and ETA C2 approval), available in various lengths and materials compositions
  • Faster and simpler installation - No hole cleaning required with HIT-HY 200
  • More design flexibility - Variable anchor embedment depth allows for more cost-efficient fastening designs
  • More peace of mind - Clear head markings allow easy verification of rod length, even after installation
  • Available in carbon steel, multilayer coating and stainless steel

Applications

  • Fastenings in concrete in combination with HIT-HY 200
  • Ideal for seismic fastenings
  • Ideal for thin concrete with shallow embedment
