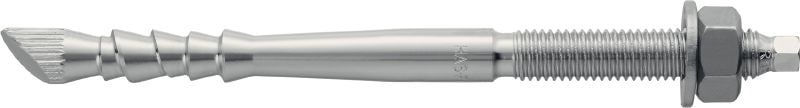

Ultimate-performance anchor rod for adhesive capsules in cracked concrete (A4 stainless steel)

  • Material, corrosion: Stainless steel, A4
  • Environmental conditions: Costal areas / Roads with de-icing salt, Outdoor (more than 1km to coast), Outdoor with heavy industrial pollution
  • Base materials: Concrete (cracked), Concrete (non-cracked)

Customers also searched for chemical anchorThreaded rodChemical boltAnchor bolt or I-bolt.

Technical Data

Material, corrosion
Stainless steel, A4
Environmental conditions
Costal areas / Roads with de-icing salt, Outdoor (more than 1km to coast), Outdoor with heavy industrial pollution
Base materials
Concrete (cracked), Concrete (non-cracked)
PROFIS software
Yes
Approvals / test reports
BZS/shock, ETA, Fire
Type of fastening
Pre-fastening

Documents

Features & Applications

Features

  • High-performance capsule anchor
  • Minimal sensitivity to cracked concrete (tension zone)
  • Minimal sensitivity to dynamic loads
  • Minimal sensitivity to application irregularities
  • Highly flexible solution

Applications

  • Suitable for fastenings in cracked concrete in combination with Hilti HVU-TZ capsules

For approval or certificate information, please see individual items.
