HVU-TZ Anchor capsule

Configurator
Technical Data
Documents
Features & Applications
Related Products
6019.tif
6846.tif
5315.tif
7402.tif

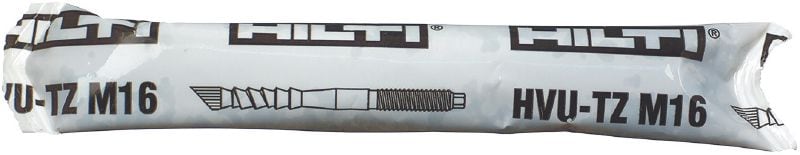

Ultimate-performance foil adhesive capsule for anchoring in concrete with dynamic loads

  • Approvals / test reports: ETA, Fire
  • Base material condition: Dry
  • PROFIS software: Yes

Customers also searched for chemical anchor, chemical capsule, anchors, adhesive anchor or glue anchor.

Choose options

Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Approvals / test reports
ETA, Fire
Base material condition
Dry
PROFIS software
Yes
Material composition
Hybrid urethane methacrylate adhesive
In-service temperature – range
-40 - 80 °C
Storage and transportation temperature range
5 - 25 °C
Seismic loading
No
Installation direction
All
Cleaning procedures
Manual cleaning, Non-cleaning

Documents

Approval document
Technical information
Certificate
pdf ETA-17/0200 for adhesive capsule HVU-TZ and HAS-TZ, English, German, Polish [ 2.1 MB ]
pdf ETA 03/0032 for HVZ adhesive anchor system (ETAG 001-05, Option 1), German, English [ 2.8 MB ]

Features & Applications

Features

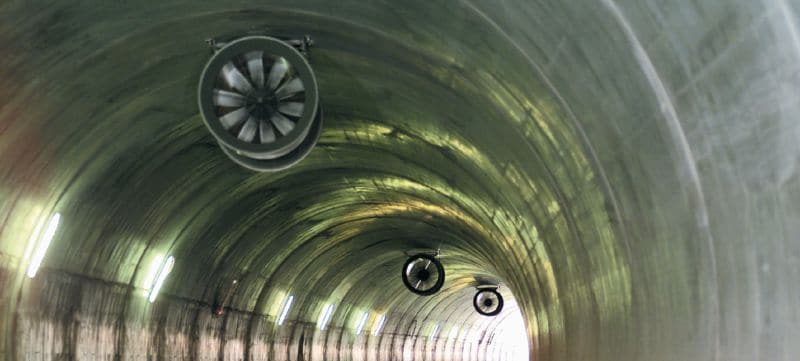

  • Tested according to standard temperature curve (ISO 834) and the German tunnel temperature curve (ZTV-ING, part 5)
  • Formulated for flexibility – you can use these adhesive capsules for a wide range of load conditions, concrete types and approval requirements
  • Suitable for use in cracked concrete
  • Suitable for dynamic loading subject to fatigue and shock
  • Flexible foil capsule instead of glass: a robust product for real jobsite conditions

Applications

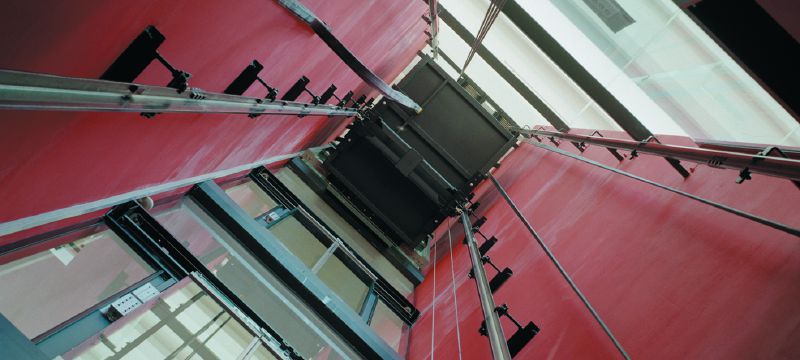

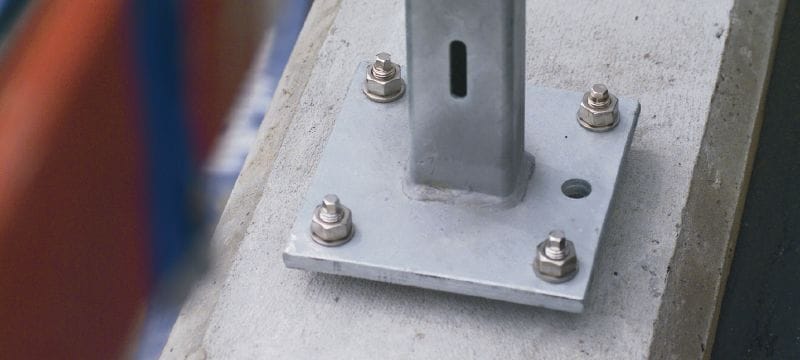

  • Heavy-duty fastenings in cracked concrete (steel structures, machinery, crash and noise barriers, curtain wall structures, railings.)
  • For safety-relevant fastenings
  • Dynamic loads

For approval or certificate information, please see individual items.
