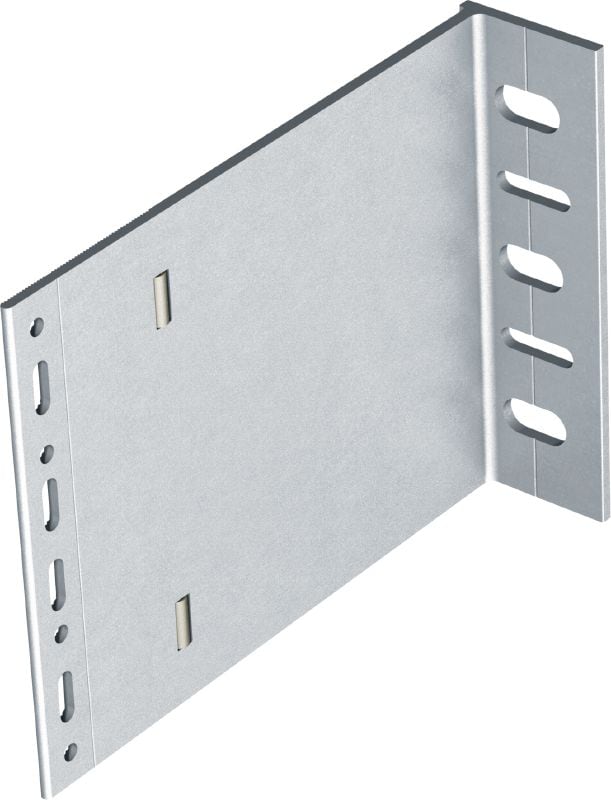

Versatile wall bracket for installing rainscreen façade substructures

  • Material composition: EN AW-6063 T66
  • Width: 46 mm
  • Height: 150 mm

Technical Data

24_MFT_FOX_V_194_L_6_5_11 (221852)
Material composition
EN AW-6063 T66
Width
46 mm
Height
150 mm

Documents

Features & Applications

Features

  • Labour saving – optimised bracket design and innovative fastening solutions help to lower your total cost of installation
  • Easier installation – optimised helping hand and clearer markings to simplify bracket fastening and rail alignment

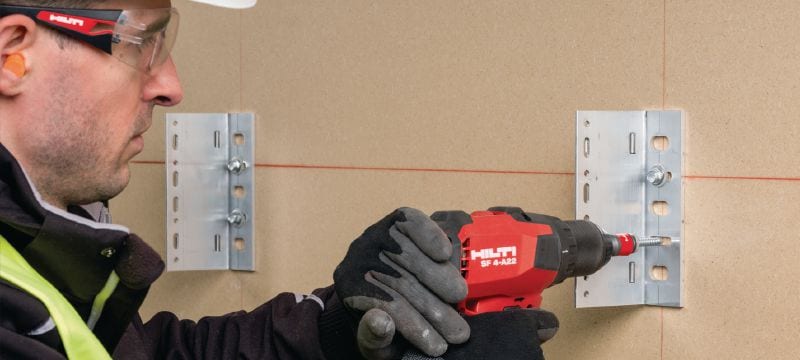

  • Multiple fastening options – can be installed using suitable anchors, screws or direct fastening (DX)
  • Pre-assembled bracket – arrives on-site ready to fasten to the wall or slab
  • Engineering support available – contact your local Hilti team for project-specific advice on optimising the ventilated façade substructure

Applications

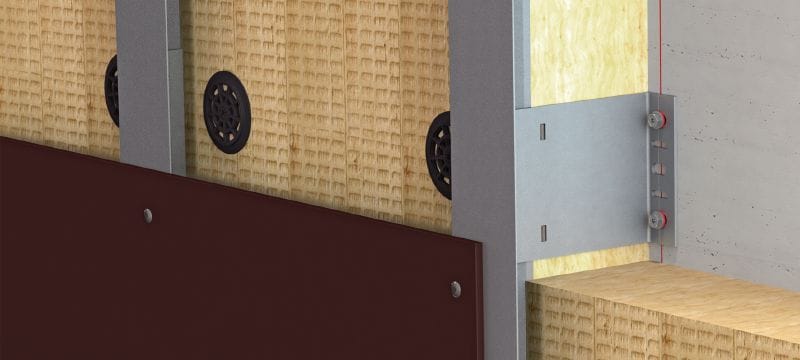

  • Fastening rainscreen façade substructure to concrete, masonry, metal studs and wood
  • Mounting façade substructures on the primary structure (helping hand bracket)
  • Installing vertical support rails
  • Suitable for all façade cladding

For approval or certificate information, please see individual items.
