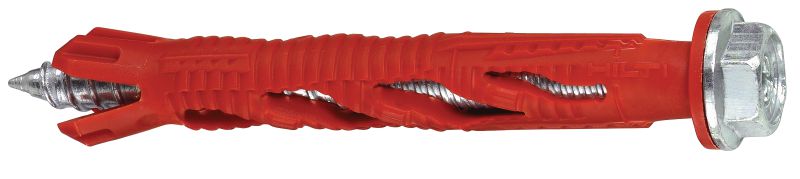

HRD-H Plastic screw anchor

Frame anchor HRD-H 10x60 #423870

Pre-assembled plastic anchor for concrete and masonry with screw (carbon steel, hex head)

  • Head configuration: Hex head
  • Approvals / test reports: ETA, Fire
  • Material, corrosion: Carbon steel, zinc-plated

Customers also searched for plastic anchorhexagon head plastic anchorpolyamid anchoranchors or anchoring.

Choose options

Anchor size
  • 10 mm
Anchor length
  • 60 mm
  • 80 mm
  • 100 mm
  • 140 mm
Pack size
  • 50 pc
Product options
Quantity
Packs
Total Piece
50
You can not see your company prices

Please Log in or register to see your company prices.

SR 200.85

SR 4.02 / 1 Piece

Technical Data

Head configuration
Hex head
Approvals / test reports
ETA, Fire
Material, corrosion
Carbon steel, zinc-plated
Wrench size
13 mm
Bit size
T40

Documents

Features & Applications

Features

  • Unbeatable versatility – flexible embedment depth (approved at 50 mm and 70 mm) makes these plastic anchors suitable for a vast range of fastenings and base materials
  • Multiple versions available – choose from multiple screw heads and corrosion resistance options depending on your project’s needs
  • Time-saving on the jobsite – these concrete plastic anchors arrive ready to use with the screw pre-assembled in the wall plug
  • Extensive documentation available – see the technical data sheet for essential load, resistance, design and installation information

Applications

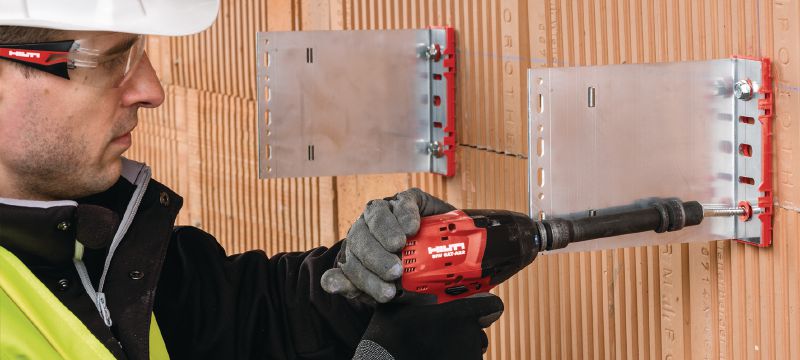

  • Rainscreen/ventilated façades – fastening façade mounting brackets to concrete and masonry
  • Metal fabrication – fastening handrails, balustrades, railings, window bars and other architectural metalwork to concrete and masonry
  • Suitable for fastening fixtures up to 150 mm thick (60-200 mm anchor length available)

For approval or certificate information, please see individual items.
