MFT-FOX VT L

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG001406_v2.tif
LCG001408_v2.tif
LCG001424_v1.tiff
MFT-FOX VT L 6,5 (68862)

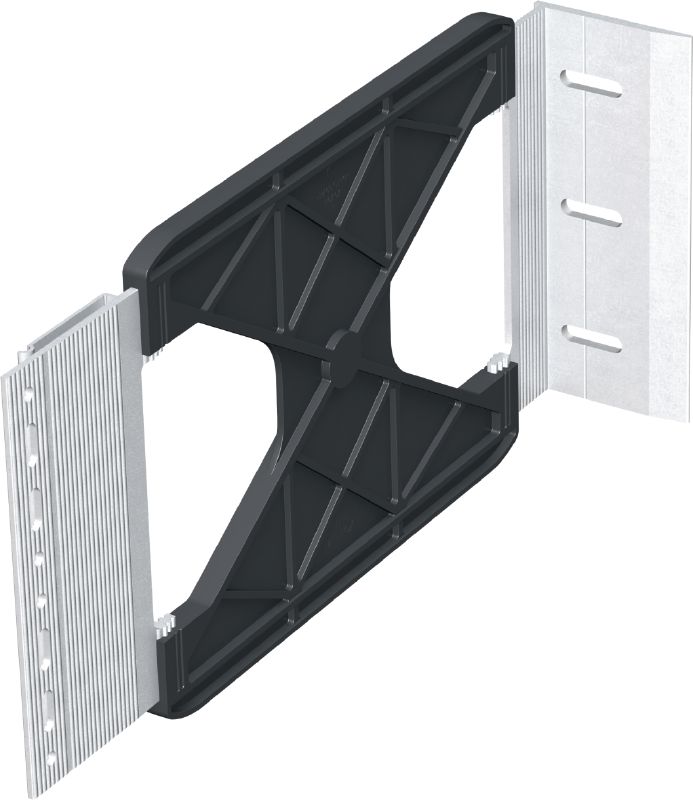

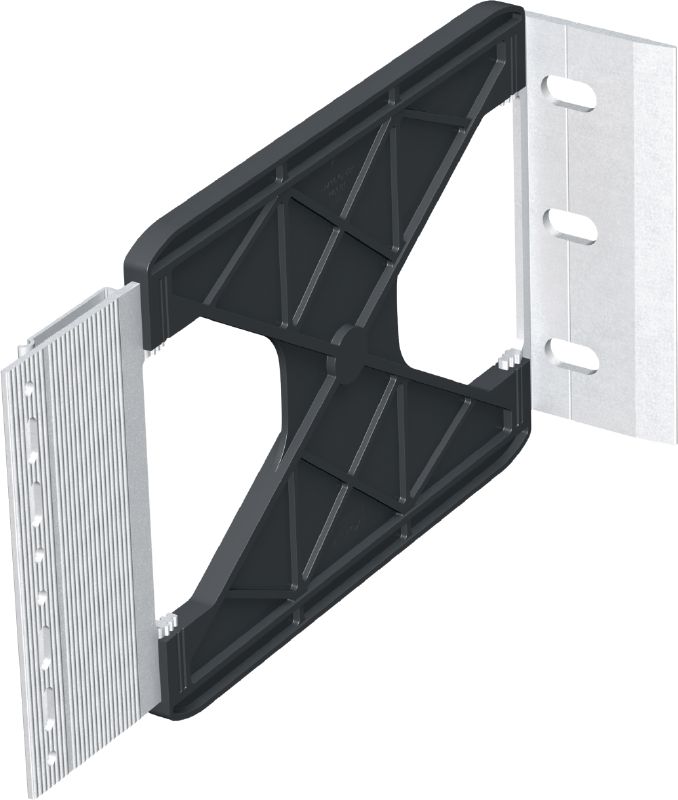

Bracket

  • Material composition: Polyamide, EN AW-6063 T66
  • Width: 62 mm
  • Height: 150 mm

Choose options

Length
  • 220 mm
  • 240 mm
  • 260 mm
  • 280 mm
  • 300 mm
  • 320 mm
Hole diameter - D
  • 6.5 mm
  • 11 mm
Pack size
  • 20 pc
  • 25 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From SR 2,310.00

Technical Data

Details
Technical illustrations
Material composition
Polyamide, EN AW-6063 T66
Width
62 mm
Height
150 mm

Documents

Approval document
Sustainability Documentation
Operating Instruction
pdf ETA-21/0174 EN, English [ 1.3 MB ]

Features & Applications

Features

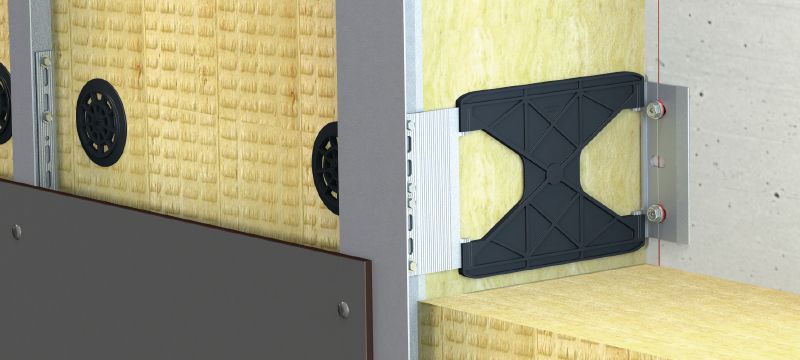

  • Thermal bridge-free solution
  • Glass-fibre reinforced plastic and aluminium compound for low thermal conductivity and high load performance
  • Simple installation
  • Bracket with round and elongated holes for fixed and sliding points with max. 40 mm adjustability
  • Hole diameter 6.5 mm for DX fastening and screws for concrete, steel and wood

Applications

  • Suitable for low-energy buildings, Passivhaus and Minergie standard
  • Suitable for all facade cladding

For approval or certificate information, please see individual items.
