Nuron

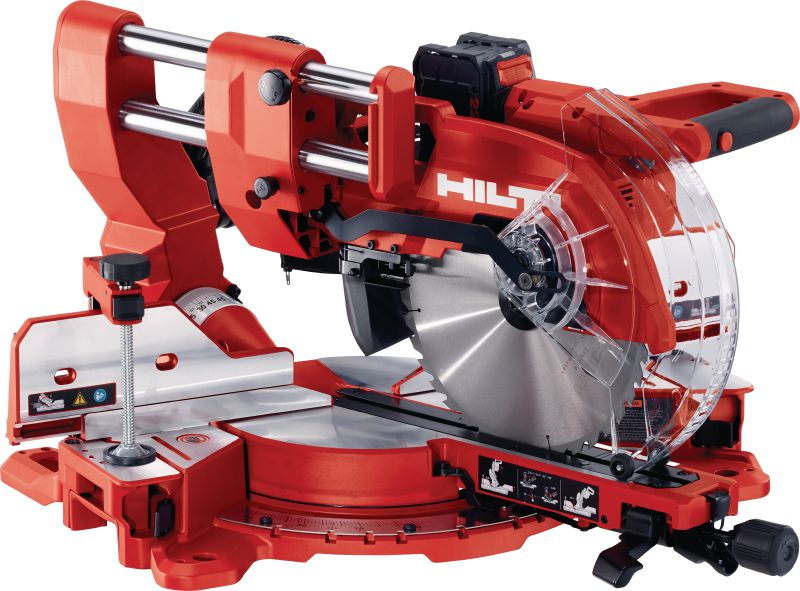

SM 60-22 Cordless Miter Saw

Cordl. miter saw SM 60-22 box #2390413

Configurator
Technical Data
Documents
Features & Applications
Related Products
L132897 (3344406)
L149782_cropped (3388188)
L149739_cropped (3480293)
L149773_cropped (3388181)
L149729_cropped (3388177)
L151083_cropped (3527667)
L152017_cropped (3621147)
L152020_cropped (3621183)
L152018_cropped (3621165)

Dual-bevel sliding compound Miter Saw with a cross cut capacity up to 100x355mm│4"x 13-3/4" (Nuron battery platform)

  • Blade diameter: 305 mm
  • Base material: Wood, Plastic
  • No load RPM: gear 1: 4300 rpm

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
SR 7,200.00
SR 7,200.00 / 1 Piece

Technical Data

Blade diameter
305 mm
Base material
Wood, Plastic
No load RPM
gear 1: 4300 rpm
Guiding rail compatibility
No
Max. bevel angle
48 °
Max. mitre angle
60 °
A-weighted emission sound pressure level
101 dB (A) 1
Triaxial vibration value for sawing into wood (ah,W)
2.5 m/s² 2
  1. according to EN 60745
  2. according to EN 60745-2-5

Documents

pdf Operating Instruction SM 60-22 01, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Swedish, Turkish, Ukrainian, Chinese, Serbian [ 11.9 MB ]

Features & Applications

Features

  • Precision cutting – miter (≤ 60° right ≤ 52° left) and bevel (up to 48°) adjusts in both directions for smooth compound cuts and accurate straight cuts throughout the saw's lifetime
  • Variable speed control – 6 speeds (2000-4300 RPM) allow you to match blade speed with material to optimise cutting quality, performance and battery life when paired with our blades
  • Ergonomic and efficient – forward-sliding rail saves space while front-facing bevel adjustments help streamline your workflow
  • Integrated LED shadow queue – queue up your workpiece for faster and more accurate cuts, even in low-light conditions
  • Safer and cleaner – fast blade brake and effective dust removal for a safer and cleaner working environment

Applications

  • Commercial wood framing, especially precise, serial cuts in beams, structural elements and temporary supports
  • Clean cuts for concrete formwork such as tilt walls and architectural concrete
  • Bevel and miter cuts for case work, mill work and interior woodwork such as cabinets, molding and trim

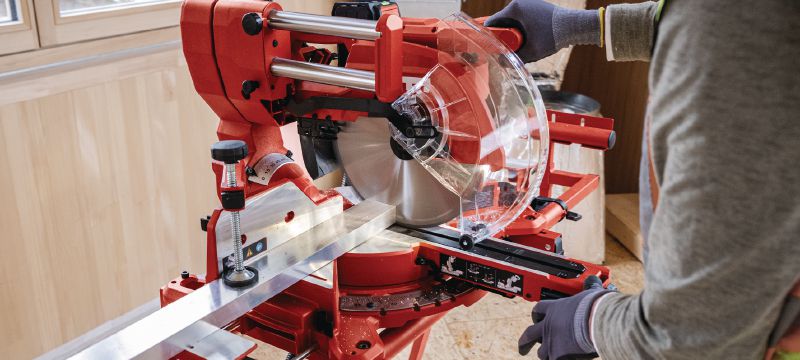

  • Cutting aluminium extrusions on-site for building envelope applications
  • Straight cuts in PVC, ABS and occasional cuts in aluminium and conduit for flush connections in plumbing and electrical installations
