Nuron

TE 2-22 Cordless rotary hammer

Compact and light weight SDS Plus cordless rotary hammer with pistol grip for best maneuverability when drilling overhead (Nuron battery platform)

  • Weight according to EPTA-Procedure 01/2003 without battery: 2.3 kg
  • Optimum hammer drilling range: 4 - 12 mm
  • Single impact energy: 1.5 J

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery
2.3 kg
Optimum hammer drilling range
4 - 12 mm
Single impact energy
1.5 J
Hammer drilling diameter range
4 - 22 mm
Hammer drilling RPM
1090 rpm
Full hammering frequency
4860 impacts/minute
Functionality
Reverse mode, LED working light
Triaxial vibration value for hammer drilling into concrete (ah,HD)
13.7 m/s² 1
A-weighted emission sound power level
103 dB (A) 2
A-weighted emission sound pressure level
95 dB (A) 3
  1. according to EN 62841-2-6
  2. according to EN 60745
  3. according to EN 60745

Documents

Features & Applications

Features

  • Unbeatable grip and agility – TE 2-22 is our lightest and slimmest cordless rotary hammer, with improved in-line pistol grip designed to help you work in cramped quarters without the muscle strain
  • Virtually dust-free drilling – when used with a Hilti DRS-D or DRS-S dust removal attachment or hollow drill bit and compatible Hilti vacuum cleaner
  • Safer work at heights – use the included belt hook and optional tool tether to free your hands without compromising on tool drop protection
  • Improved drilling precision – LED light provides better visibility of your work area, and the enhanced grip provides more comfortable control
  • On the Nuron battery platform – cordless tools without compromise thanks to longer-lasting batteries, power-saving drill bits and a range of services to keep you productive, today and tomorrow

Applications

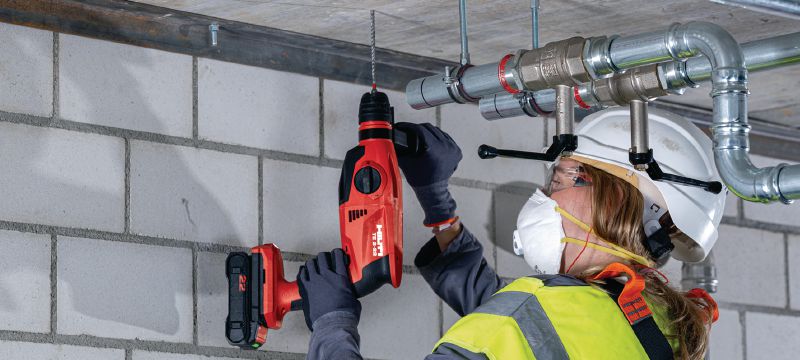

  • Drilling into concrete and masonry, especially overhead or in tight spaces
  • Interior finishing – installing drywall track and suspended ceilings
  • Metal fabrication – fastening metal fixtures to concrete, such as handrails, staircases, sun blinds and safety barriers
  • Electrical and telecom – installing cables, switchgear, outlet boxes and lights
  • Any smaller drilling jobs, when cordless convenience and comfortable handling is more efficient overall than minimising the time-per-fastening

For approval or certificate information, please see individual items.
