Nuron

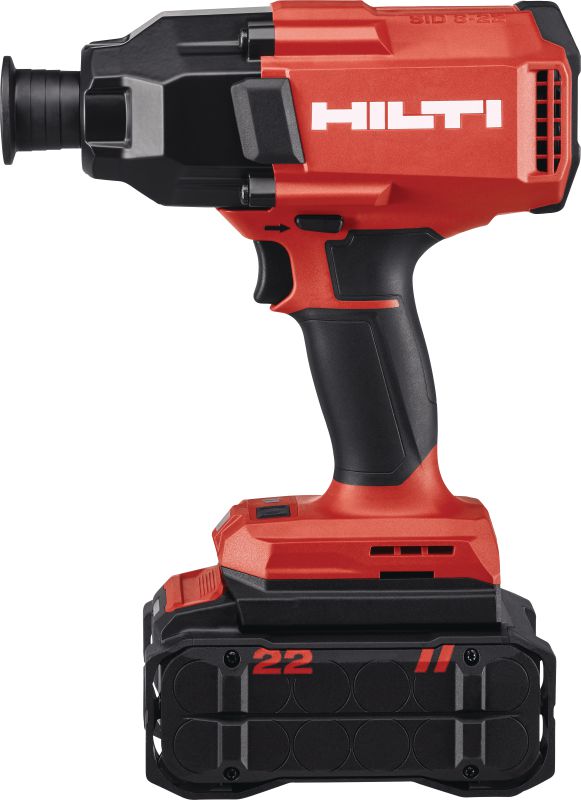

SID 8-22 7/16" Impact Driver

Ultimate class cordless impact driver for large diameter drilling and fastening

  • Feature: Powerful high efficiency hammering mechanism
  • Chuck type: 7/16" hexagonal
  • No load RPM: gear 1: 1700 rpm; gear 2: 1200 rpm

Technical Data

Feature
Powerful high efficiency hammering mechanism
Chuck type
7/16" hexagonal
No load RPM
gear 1: 1700 rpm; gear 2: 1200 rpm
Maximum torque
500 Nm (1); 1000 Nm (2) 1
Full hammering frequency
3400 impacts/minute
Number of gears
2
Dimensions (LxWxH)
218 x 86 x 233 mm
Tool body weight
2.8 kg
A-weighted emission sound pressure level
98 dB (A) 2
Rated voltage
21.6 V
  1. Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk of over-tightening and damaging the screw or workpiece.
  2. according to EN 60745

Documents

Features & Applications

Features

  • Work faster and smarter – get up to 50% faster driving speed, with two speeds and lower torque for greater control
  • Smaller and more ergonomic design – more compact body allows for greater ease and comfort
  • Quick chuck – 7/16” one-click chuck with lip for easy bit changes, even while wearing gloves
  • Smoother drilling – combine with Hilti’s alloy-coated auger bits for faster and smoother drilling
  • Work any time – powerful LED light on the impact driver illuminates your jobsite day and night

Applications

  • Ideal for heavy-duty wood drilling and fastening for utility poles and structural wood bolt connections
  • Drilling, fastening and bolting hardware in wood utility poles and timber
  • Easier one-hand driving of lag bolts and Spax screws in wood

For approval or certificate information, please see individual items.
