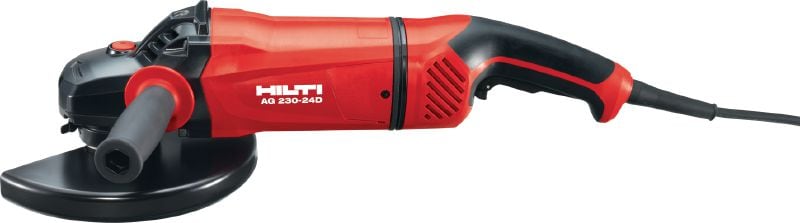

AG 230-24D Angle grinder
2400W angle grinder with dead man's switch, rotatable grip and long-lasting carbon brush, for discs up to 230 mm
- Disc diameter: 230 mm
- Weight according to EPTA-Procedure 01/2003 without battery: 6.5 kg
- Max. cutting depth: 68 mm
Technical Data
Disc diameter
230 mm
Weight according to EPTA-Procedure 01/2003 without battery
6.5 kg
Max. cutting depth
68 mm
No load RPM
gear 1: 6500 rpm
Trigger type
Deadman switch
A-weighted emission sound pressure level
97 dB (A) 1
Triaxial vibration value for angle grinding (ah,AG)
5.8 m/s² 2
Disclaimer
Use the specified guard for the type of disc selected
- according to EN 60745
- according to EN 60745-2-3
Documents
Features & Applications
Features
- Active Torque Control (ATC) stops the tool body from spinning uncontrollably if the disc jams – helping to reduce a common safety hazard
- Hilti Smart Power technology automatically adjusts power output to suit the material being cut – helping to deliver consistently high cutting performance and to protect the motor from overload
- Active Vibration Reduction (AVR) makes the tool much less tiring to use – helping to increase daily productivity

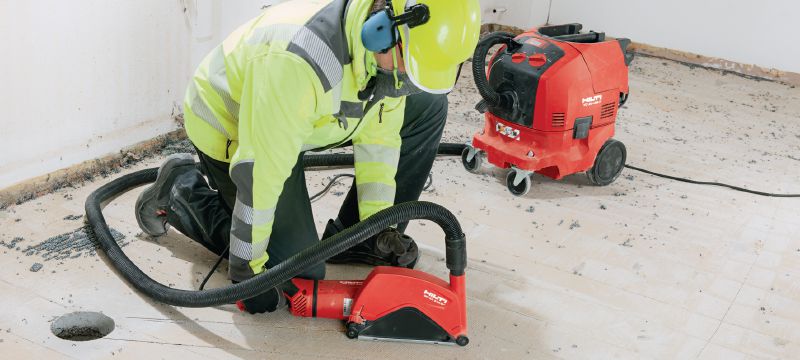

- Rugged dust removal hood (optional) for virtually dustless operation and soft grips for greater working comfort
- Adjustable side handle – for a secure, comfortable grip when working in any position
Applications

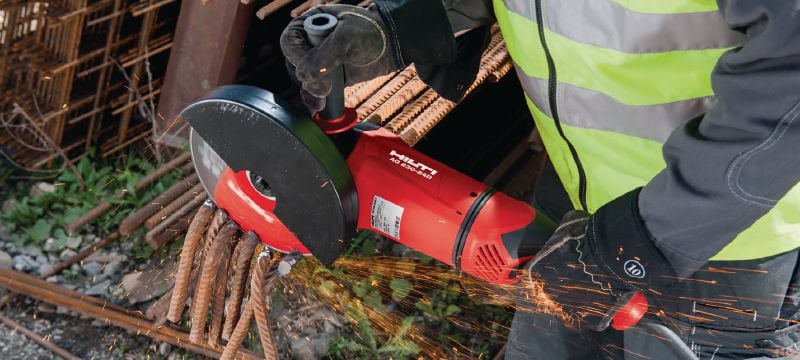

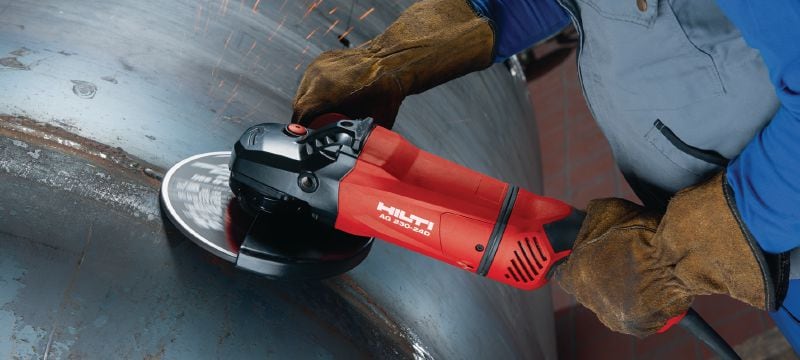

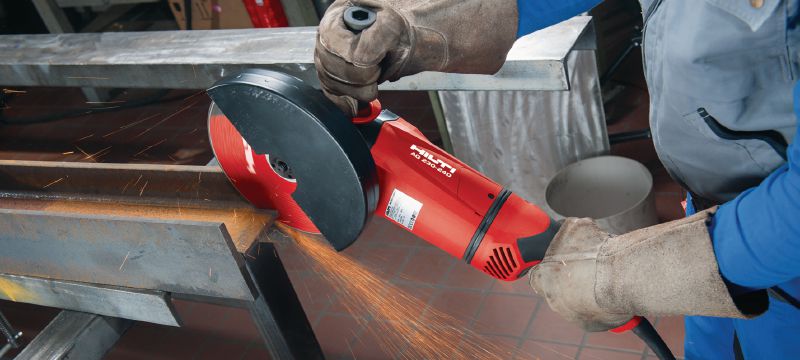

- Cutting and grinding steel and metal
- Cutting concrete
- Slitting for the installation of cable conduits in concrete and brick
For approval or certificate information, please see individual items.
Hilti Tool Service

Hilti Tool Service
- Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
- After the no-cost period, repair costs are capped
- Product warranty against parts and manufacturing irregularities for as long as we service the tool
- Product warranty against parts and manufacturing irregularities for 20 years
- 3-month no-cost period after each paid repair
LifeTime Services
- No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
- After the no-cost period, repair costs are capped for as long as we service the tool
- 3-month no-repair-cost period again after every paid repair
- Materials and workmanship warranty over the entire life of the tool
- Pick-up and delivery service
