Nuron

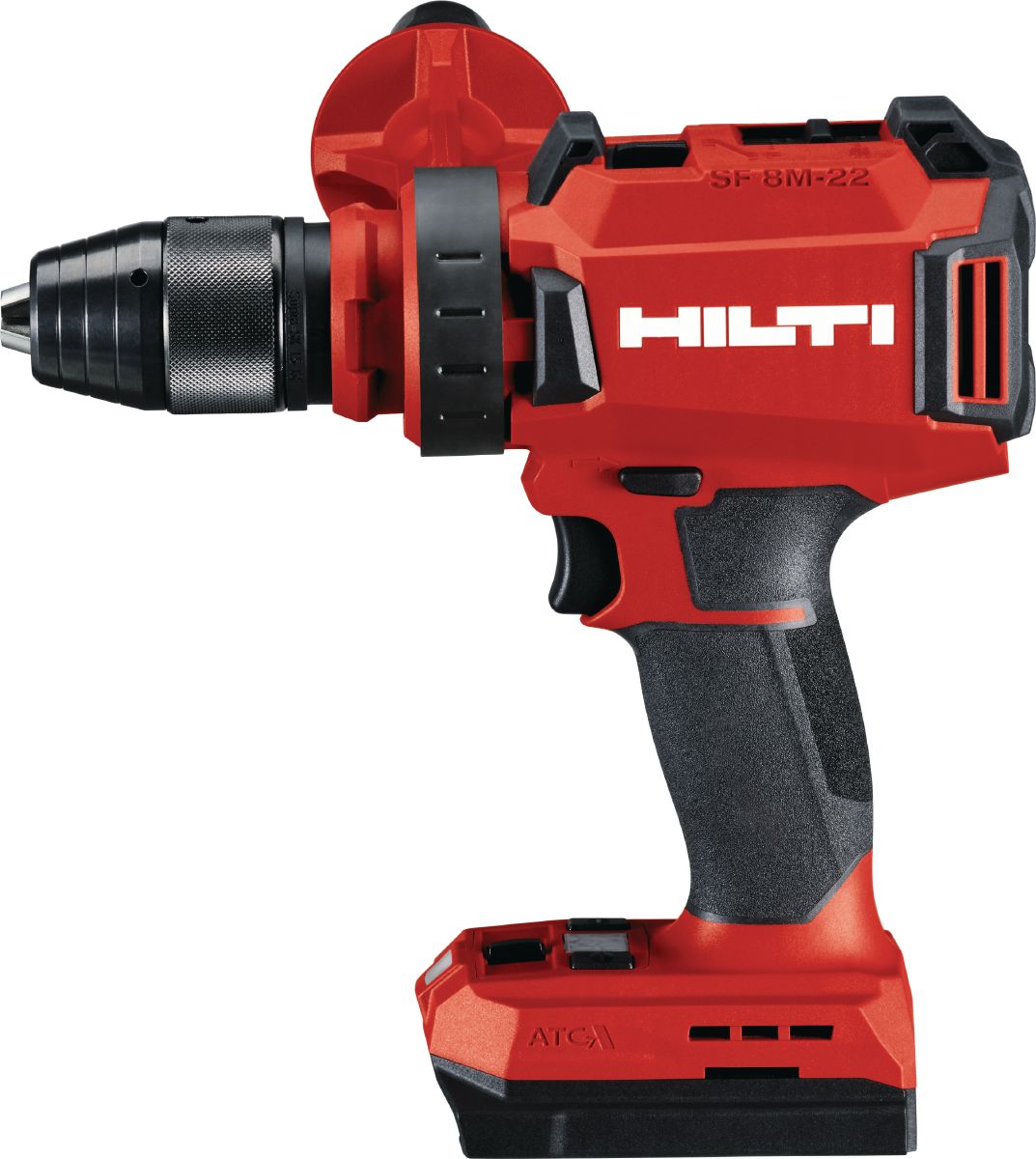

SF 8M-22 Cordless drill driver

Cordl. drill driver SF 8M-22 box #2434844

L601766 (4482885)
L161198_cropped (5554372)
L161232_cropped (5554379)
L161241_cropped (5554385)

Ultimate cordless drill driver with interchangeable chucks and higher RPM for drilling, driving and thread tapping in metal (Nuron battery platform)

  • Maximum torque (soft/hard joint): 55 Nm (soft joint), 75 Nm (hard joint)
  • No load RPM: gear 1: 400 rpm; gear 2: 670 rpm; gear 3: 2100 rpm; gear 4: 3500 rpm
  • Chuck clamping range: 2 - 13 mm

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Maximum torque (soft/hard joint)
55 Nm (soft joint), 75 Nm (hard joint)
No load RPM
gear 1: 400 rpm; gear 2: 670 rpm; gear 3: 2100 rpm; gear 4: 3500 rpm
Chuck clamping range
2 - 13 mm
Number of gears
4
Torque increments
15
Dimensions (LxWxH)
216 x 70 x 226 mm
Tool body weight
1.792 kg
A-weighted emission sound pressure level
78 dB (A) 1
Rated voltage
21.6 V
Triaxial vibration value for drilling into metal (ah,D)
1.7 m/s² 2
  1. according to EN 60745
  2. according to EN 60745-2-1

Features & Applications

Features

  • More flexibility and productivity – the interchangeable chuck design helps maximise versatility, with a new right-angle chuck and different chucks that can be swapped out in seconds (thread tapping M3-M16, self-tightening chuck, universal chucks)
  • Next-generation performance in metal – the higher 3500 RPM, soft joint torque (60Nm)and four speeds help the SF 8M-22 cordless drill driver handle demanding metal drilling and screwdriving with ease
  • Compact and comfortable handling – our shortest drill driver specialised for metal, with a new HTX Alcantara grip for increased control and comfort
  • Safer work environments – Active Torque Control (ATC) helps prevent the tool body from uncontrolled spinning if the drill bit sticks and an LED work light in the base provides a clear view of your work area
  • Longer runtime – the powerful battery and brushless motor combine for more drilling and driving per charge at consistently high speeds

Applications

  • Drilling in metal with HSS bits up to 20 mm (25/32") diameter
  • Drilling in sheet metal up to 3 mm (1/8") thick with step drill bits up to 40 mm (1-9/16") diameter
  • Drilling holes in metal using hole saws up to 102 mm (4")
  • Thread tapping up to size M16 (approx. 5/8") (square shank bits suitable with thread tap chucks)
  • Countersinking in metal up to 31 mm (1-7/32") diameter
