Nuron

SF 6H-22 Cordless hammer drill driver

Cordl. ham. dr. driver SF 6H-22 case #2254885

Configurator
Technical Data
Documents
Features & Applications
Related Products
Hilti Tool Service
L125812 (226272)
L142546_cropped (228498)
L142531_cropped (228494)
L142565_cropped (228505)

Power-class hammer drill driver with Active Torque Control and advanced ergonomics for universal drilling and driving on wood, metal and masonry (Nuron battery platform)

  • Maximum torque (soft/hard joint): 65 Nm (soft joint), 85 Nm (hard joint)
  • No load RPM: gear 1: 490 rpm; gear 2: 2000 rpm
  • Chuck clamping range: 2 - 13 mm

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
SR 2,499.00
SR 2,499.00 / 1 Piece

Technical Data

Maximum torque (soft/hard joint)
65 Nm (soft joint), 85 Nm (hard joint)
No load RPM
gear 1: 490 rpm; gear 2: 2000 rpm
Chuck clamping range
2 - 13 mm
Number of gears
2
Torque increments
15
Dimensions (LxWxH)
208 x 68 x 215 mm
Tool body weight
1.677 kg
A-weighted emission sound pressure level
98 dB (A) 1
Rated voltage
21.6 V
Triaxial vibration value for drilling into metal (ah,D)
1.1 m/s² 2
  1. according to EN 60745
  2. according to EN 60745-2-1

Documents

pdf Operating Instruction SF 6(H)-22 (03), Arabic, Bulgarian, cn, Greek, English, Japanese, Kazakh, Korean, Romanian, Russian, Turkish, Ukrainian, Chinese, Serbian [ 4.1 MB ]

Features & Applications

Features

  • High-speed, high-torque cordless hammer drill driver built to help you save time with every hole you drill or screw you drive, including in masonry
  • Uncompromised cordless performance – drill and drive more per charge at consistently high speed thanks to Nuron batteries and the brushless motor
  • Built to last – full metal chuck, brushless motor, rubber bumpers and optimised cooling to better withstand intense use under tough jobsite conditions
  • Advanced safety features – Active Torque Control (ATC) helps to prevent the tool body from uncontrolled spinning if the drill bit sticks, and an LED work light in the base provides a clear view of your work area
  • On the Nuron battery platform – cordless tools without compromise thanks to longer-lasting batteries, energy-saving drill bits and a range of services to keep you more productive, today and tomorrow

Applications

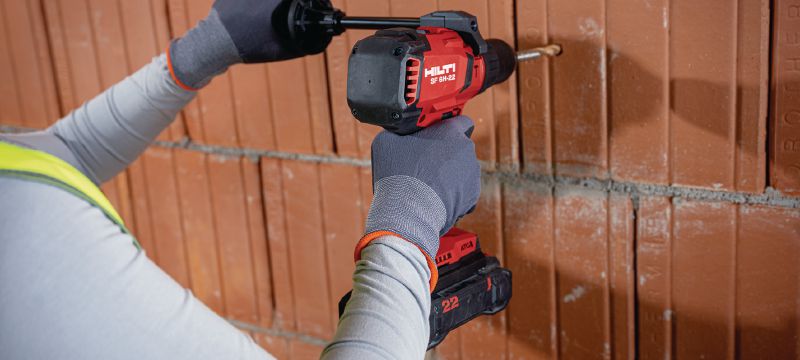

  • Hammer drilling in brick, masonry and aerated concrete (max. diameter 14 mm)
  • Cutting recesses and through-holes with hole saws (max. diameter 127mm)
  • Drilling with auger and spade bits in wood (max. diameter 32 mm)
  • Fast driving of self-drilling screws in metal (max. diameter 6.3 mm)

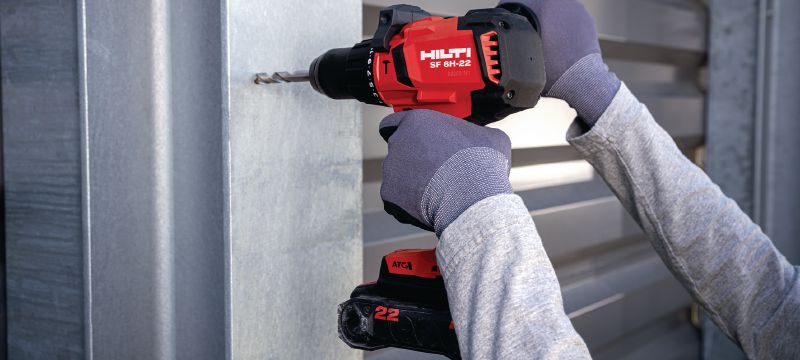

  • Fast drilling with high torque in metal (max. diameter 13 mm)
