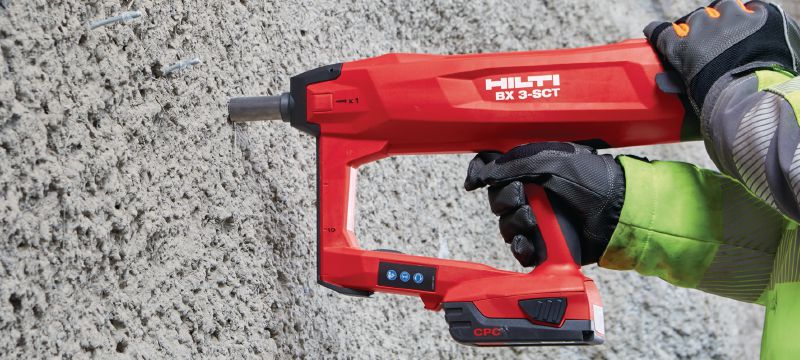

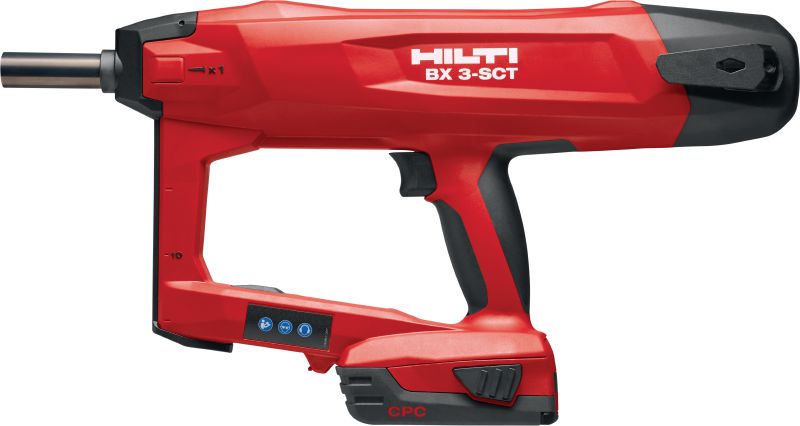

BX 3-SCT Sprayed concrete testing tool

Battery-powered fastening tool for sprayed concrete testing using compatible SCT studs

  • Fastener intake: Threaded stud
  • Fastener length range: 52 - 87 mm
  • Bluetooth: No

Technical Data

Fastener intake
Threaded stud
Fastener length range
52 - 87 mm
Bluetooth
No
Power source type
22 V battery platform
Rated voltage
21.6 V

Documents

Features & Applications

Features

  • Propellant-free tool – benefit from the lower noise, recoil and maintenance of a fully electric testing tool, while avoiding the storage, import and disposal hassles of powder-actuated versions
  • Combustion-free operation – suitable for shotcrete testing in sensitive areas such as tunnels, mines and enclosed spaces where powder cartridges can be prohibited
  • Versatile shotcrete testing tool – expanded capabilities so you can use a BX 3-SCT on a wider compressive strength range
  • On the Hilti CPC battery platform – power this sprayed concrete testing tool using the same batteries as all your other Hilti 22V power tools

Applications

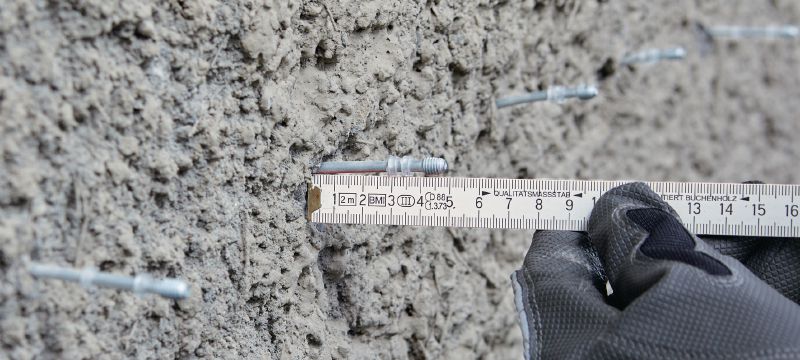

  • Quick measurement of the early strength of sprayed concrete (shotcrete) using compatible SCT studs

For approval or certificate information, please see individual items.
