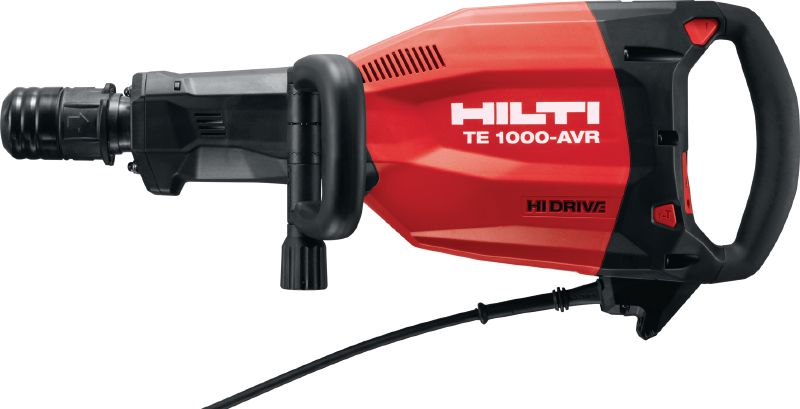

TE 1000-AVR TE-S demolition hammer

Breaker TE 1000-AVR 230V univ cord #2167743

Configurator
Technical Data
Documents
Features & Applications
Related Products
L115602 (196340)
L067752.tiff
L069678.tiff
L067778.tiff
TE 1000-AVR (2) detachable cord

Versatile breaker for demolishing or chiseling floors and occasional wall applications (with universal power cord)

  • Working direction: Floor, Wall
  • Tool chuck type: TE-S
  • Weight according to EPTA-Procedure 01/2003 without battery: 12.5 kg

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
SR 12,160.00
SR 12,160.00 / 1 Piece

Technical Data

Working direction
Floor, Wall
Tool chuck type
TE-S
Weight according to EPTA-Procedure 01/2003 without battery
12.5 kg
Single impact energy
26 J
Full hammering frequency
1950 impacts/minute
Max. chiselling performance
7800 cm³/min
Dimensions (LxWxH)
710 x 141 x 305 mm
Triaxial vibration for chiselling in concrete
5.9 m/s² 1
Dust removal system available
TE DRS-B
A-weighted emission sound pressure level
88 dB (A) 2
Rated input power
1750 W
  1. according to EN 60745-2-6
  2. according to EN 60745

Documents

Material safety datasheet
Operating Instruction
pdf Material safety datasheet Hilti Grease (AR) [ 926.5 KB ]
pdf Material safety datasheet Hilti Grease (EN) [ 735.2 KB ]

Features & Applications

Features

  • High versatility – in-line design for floor breaking and ergonomic side handle for occasional wall breaking
  • Maintenance-free brushless SR motor and triple-chamber lubrication systems for longer service intervals and tool lifetime
  • Exceptionally low tool vibration due to Hilti AVR sub-chassis (Active Vibration Reduction) system
  • Detachable supply cord for fast and easy replacement of damaged/broken supply cords on the jobsite

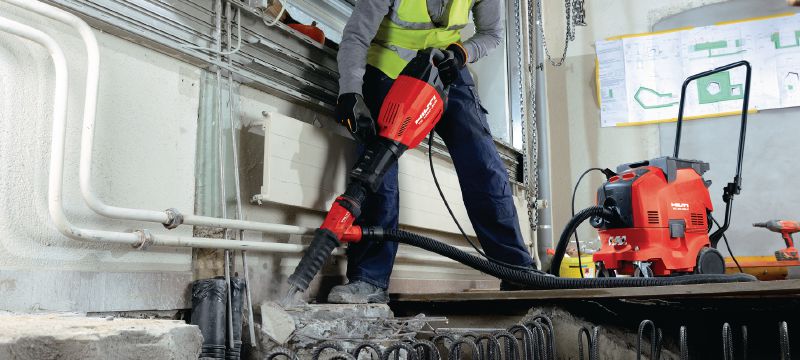

  • Optional TE DRS-B dust removal system, which collects up to 95% of dust

Applications

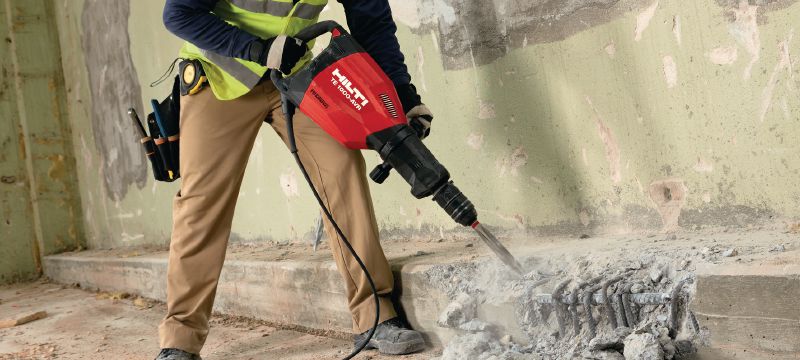

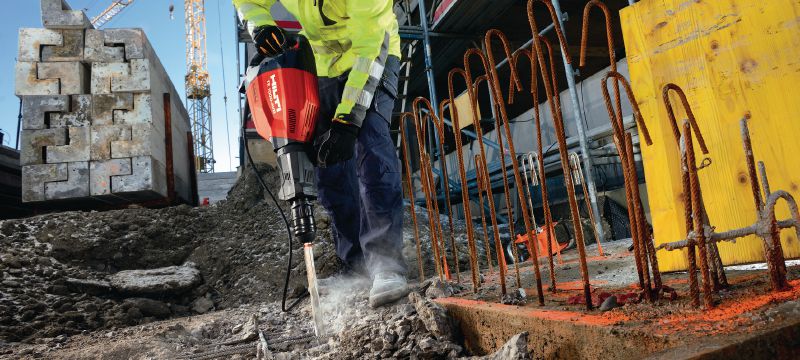

  • Demolishing concrete and masonry at floor level or below waist level
  • Renovating floors of all kinds

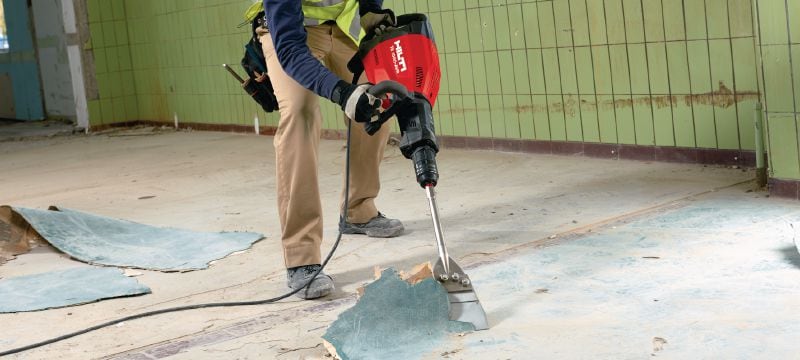

  • Removing tiles, bushing and compacting
  • Corrective chiseling, such as adjustments to door and window openings
