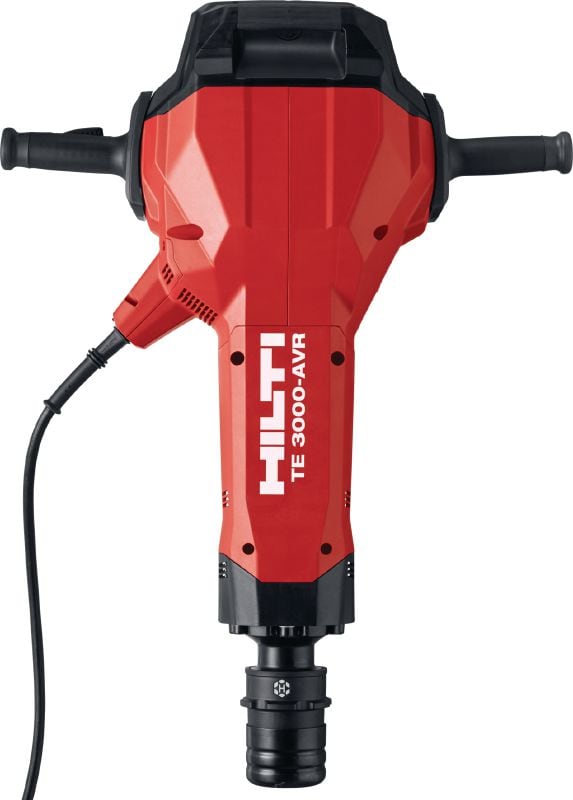

TE 3000-AVR Heavy-duty electric jackhammer

Exceptionally powerful breaker for heavy-duty concrete demolition, asphalt cutting, earthwork and driving ground rods

  • Working direction: Floor
  • Tool chuck type: TE-H (Hilti HEX 28)
  • Weight according to EPTA-Procedure 01/2003 without battery: 27.1 kg

Technical Data

Working direction
Floor
Tool chuck type
TE-H (Hilti HEX 28)
Weight according to EPTA-Procedure 01/2003 without battery
27.1 kg
Single impact energy
85 J
Full hammering frequency
858 impacts/minute
Max. chiselling performance
60000 cm³/min
Dimensions (LxWxH)
820 x 588 x 218 mm
Triaxial vibration for chiselling in concrete
6.3 m/s² 1

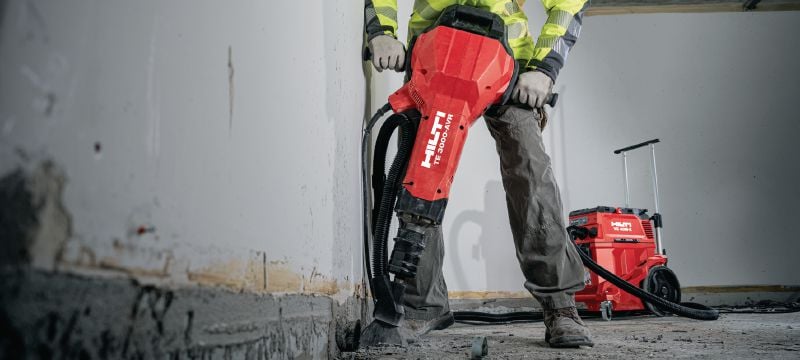

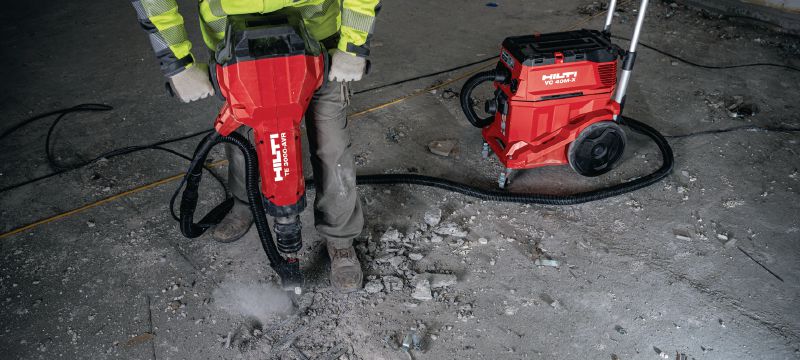

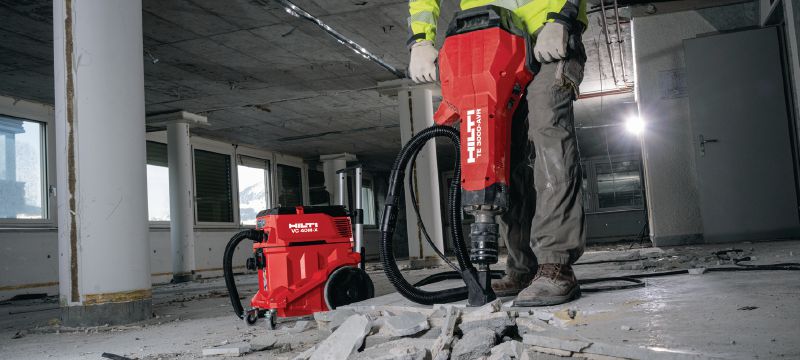

Dust removal system available
TE DRS-H
A-weighted emission sound pressure level
98 dB (A) 2
  1. according to EN 60745-2-6
  2. according to EN 60745

Documents

Features & Applications

Features

  • Upgraded performance – the TE 3000 now delivers demolition power comparable to 45 kg air-powered breakers
  • Improved handling – 10% weight reduction and new top handle make the jackhammer easier to control and transport
  • Active Vibration Reduction (AVR) – vibration-damped jackhammer with two fully decoupled handles and -10% lower vibration than previous TE 3000 models
  • Redesigned quick change chuck – takes new Hilti TE-H chisels
  • Virtually maintenance-free brushless motor and triple-chamber lubrication systems for less downtime and longer lifetime

Applications

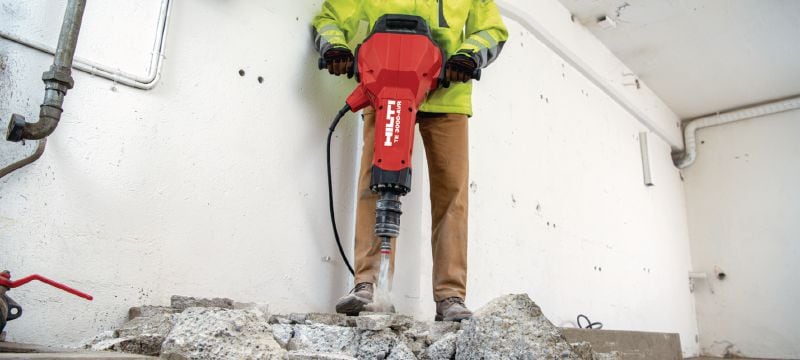

  • Demolishing reinforced concrete slabs and foundations

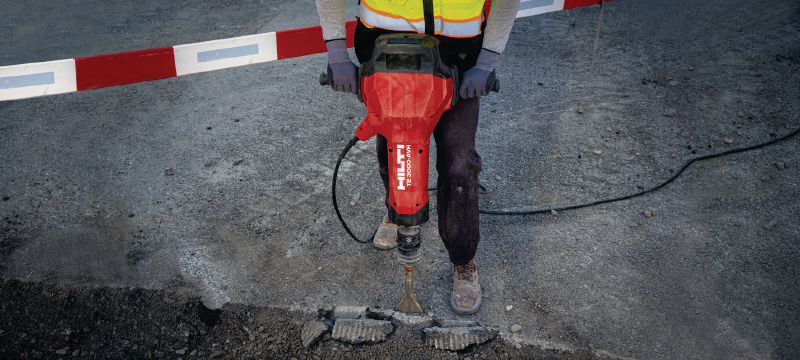

  • Breaking/cutting asphalt in civil road construction, pipe laying and pavement repair

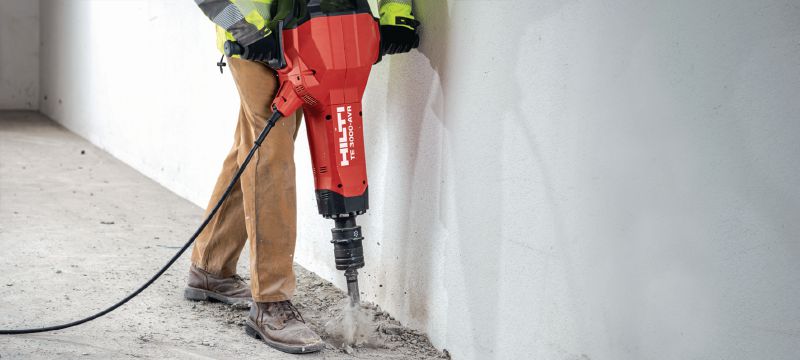

  • Removing concrete for structural restoration, slab extensions, rebar reinforcement and repair
  • Digging, trenching and tamping in rocky, hard clay and other dense earthwork
  • Setting ground rods in hard soils for a safer, ladder-free installation of earthing rods (optional TE-H PD Power Driver required)

For approval or certificate information, please see individual items.
