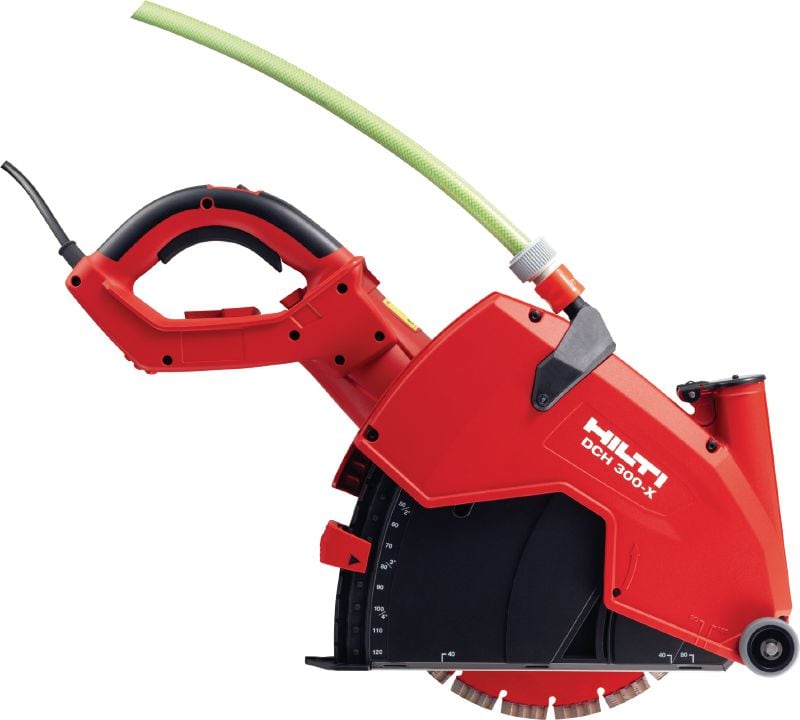

DCH 300-X Electric cutter

Wet and dry electric hand-held diamond cutter – cutting depth up to 120 mm with 305 mm blades

  • Disc diameter: 305 mm
  • Cutting depth: 120 mm
  • No load RPM: gear 1: 4900 rpm

Technical Data

Disc diameter
305 mm
Cutting depth
120 mm
No load RPM
gear 1: 4900 rpm
Triaxial vibration value for cutting concrete slab (ah)
5.1 m/s² 1
Arbor size
22.2 mm
A-weighted emission sound pressure level
106 dB (A) 2
Dimensions (LxWxH)
705 x 240 x 235 mm
Wet or dry operation
Wet and dry
  1. according to EN 60745-2-22
  2. according to EN 60745

Features & Applications

Features

  • Water kit allows wet cutting, which is 30% faster than dry cutting and virtually dust-free
  • Depth gauge – allows full control of the cutting depth in 10 mm steps from 40-120 mm

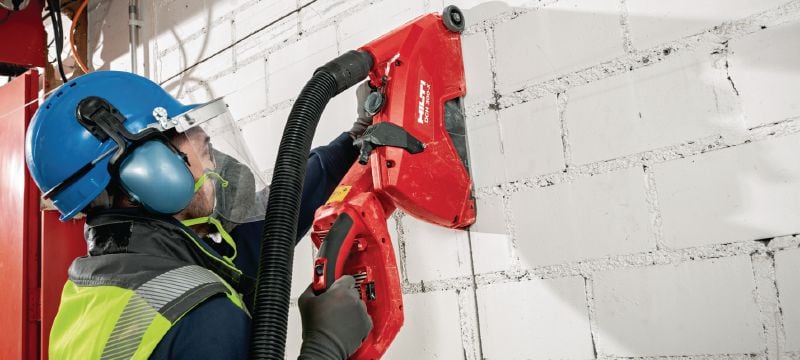

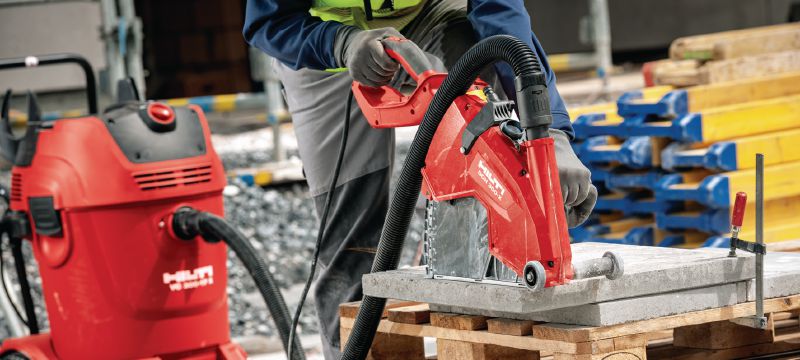

  • Ensures a virtually dust-free jobsite when used with a compatible vacuum cleaner
  • Protection against overheating, overloading and water – prolongs the tool's lifetime and increases the operator's safety when wet cutting
  • The inverted blade rotation guides the tool away from the operator's body and therefore makes cutting easier and safer

Applications

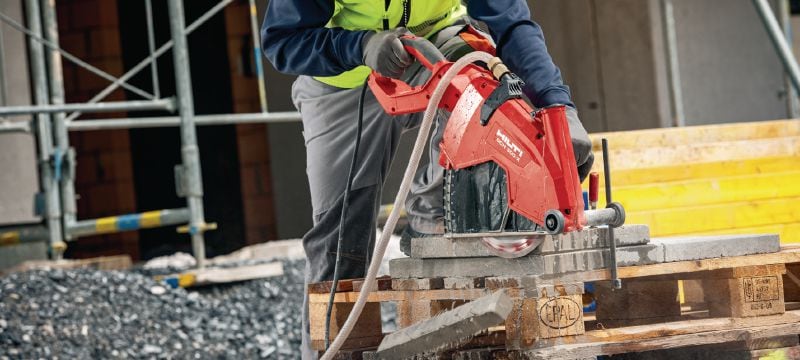

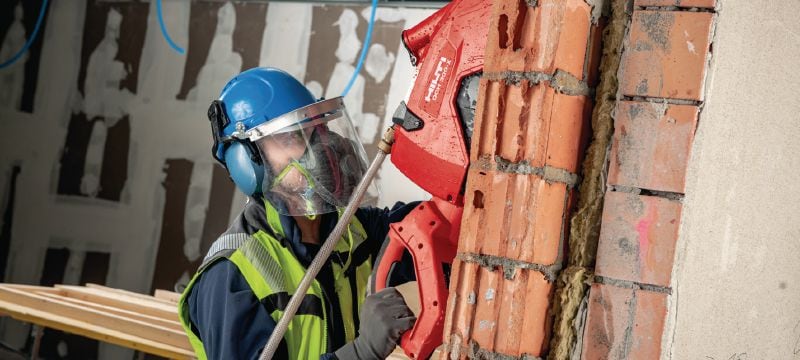

  • Cutting reinforced concrete, granite kerbstones, slabs, brick and masonry blocks

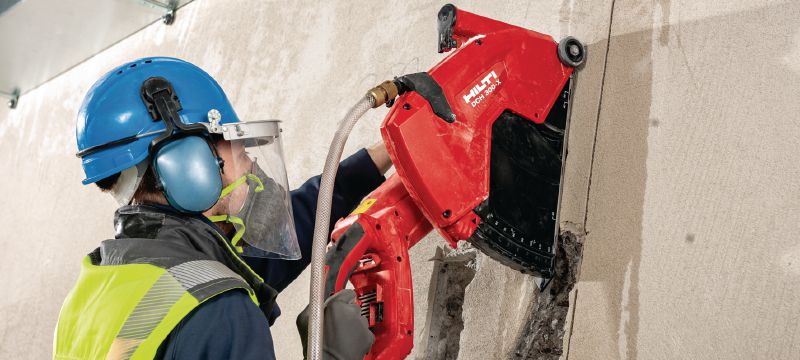

  • Cutting and extending openings for windows, doors and shafts
  • Making preliminary cuts for controlled demolition

For approval or certificate information, please see individual items.
