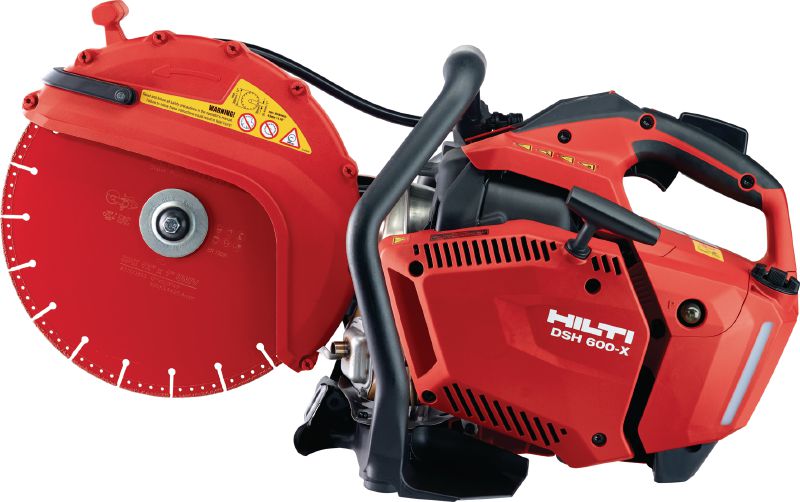

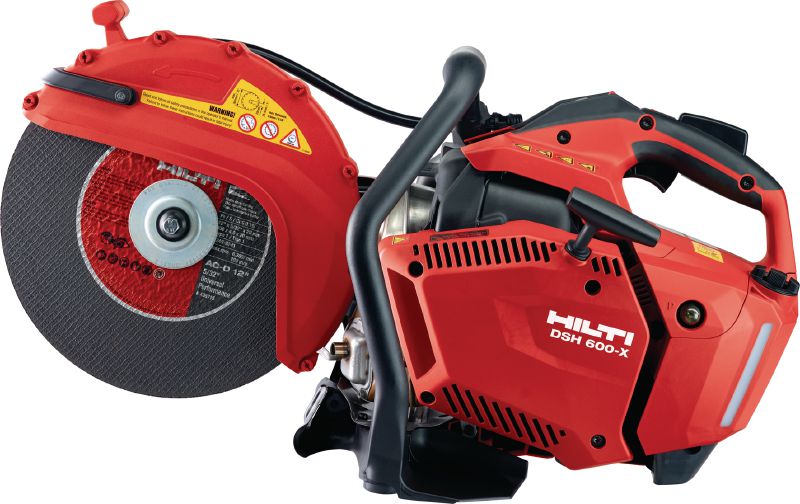

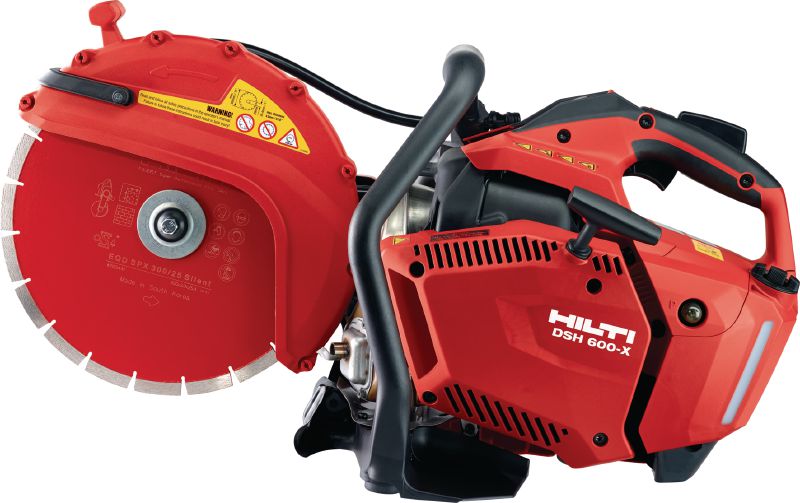

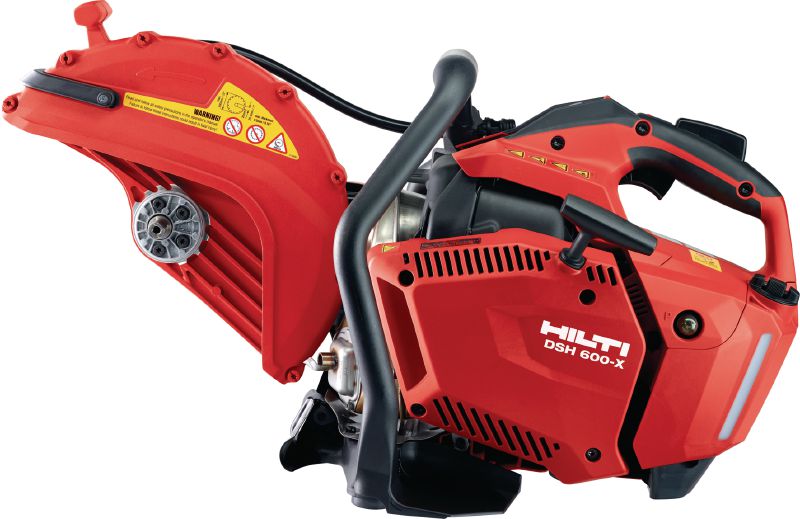

DSH 600-X Petrol cut-off saw (300mm)

L138594 (202649)
L138592 (202652)
L138593 (202646)
L138591 (202645)
L138595 (202642)
L138596 (202653)
L098223_cropped (179459)
L098229_cropped (179460)
L098323_cropped (179461)
L101863_cropped (182143)

Compact top-handle petrol saw (63cc) with blade brake, for cutting up to 120 mm with 300 mm blades in concrete, masonry and metal

  • Motor cylinder: 63.3 cm³
  • Rated power: 3.2 kW
  • Wet or dry operation: Wet and dry

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
SR 11,800.00
SR 11,800.00
/
1 Piece

Technical Data

Motor cylinder
63.3 cm³
Rated power
3.2 kW
Wet or dry operation
Wet and dry
Dimensions (LxWxH)
558 x 326 x 370 mm
Fuel mixture
50:1 (2% oil)
A-weighted emission sound pressure level
102 dB (A) 1
Disc diameter
300 mm
Cutting depth
120 mm
Triaxial vibration value for cutting concrete slab (ah)
2.5 m/s² 2
  1. according to EN 60745
  2. according to EN 60745-2-22

Documents

pdf Operating Instruction DSH 600-X, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Finnish, French, Croatian, Hungarian, Italian, Japanese, Dutch, Norwegian, Polish, Portuguese, Russian, Slovak, Slovenian, Swedish, Turkish [ 14.4 MB ]

Features & Applications

Features

  • Top-handle design for even more compactness and lighter weight
  • Fast blade stop – the blade stops in less than 10 seconds
  • Cutting depth up to 120 mm with 300 mm blades
  • Achieve even higher cutting speeds by using with customised Hilti blades
  • Pre-tensioned belt – no belt maintenance required by the user

Applications

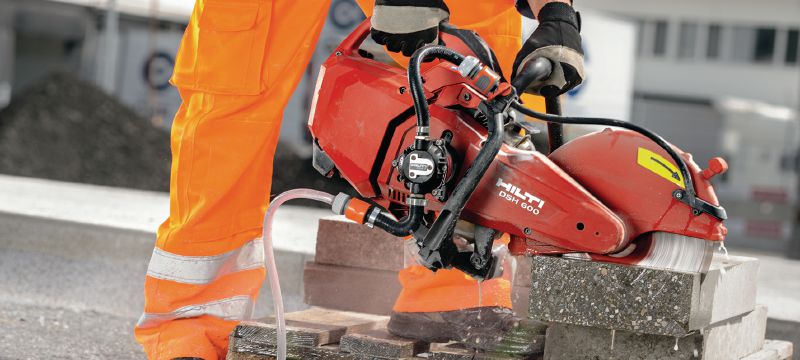

  • Laying paving – cutting kerbstones and paving slabs to size
  • Masonry work – cutting bricks and blocks to size
  • Metalwork – cutting steel profiles, pipes and steel sheets
  • Construction work – cutting out openings in brick or concrete walls
  • Sewage work – cutting where working space is limited

For approval or certificate information, please see individual items.
