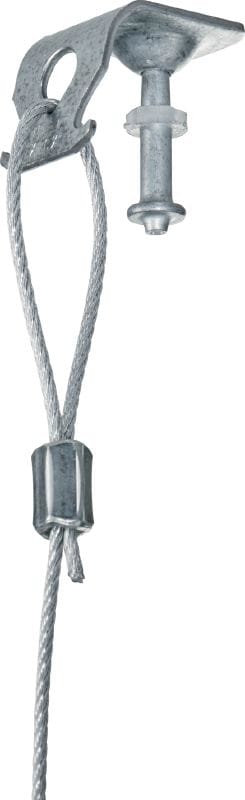

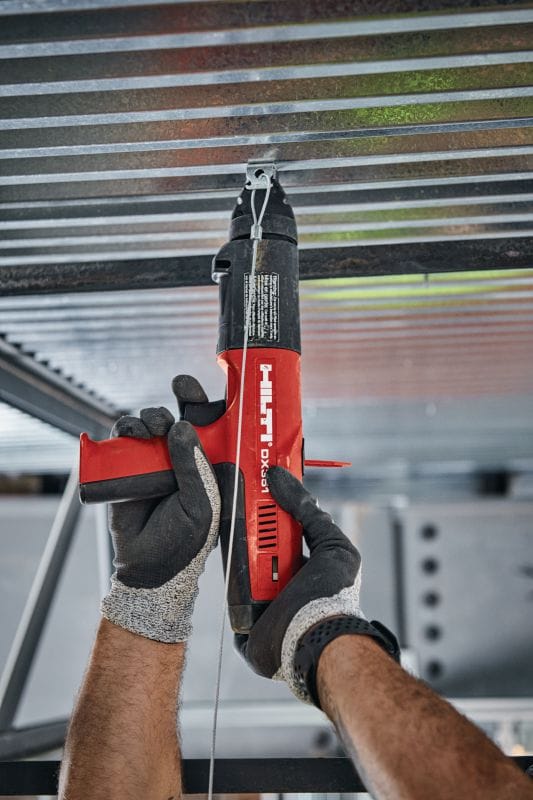

Wire hanger system for spiral HVAC ducting and lighting applications, installed using powder-actuated fastening tools

  • Material: Carbon steel
  • For use with (tools): DX 351, DX 460, DX 5, DX 6
  • Base materials: Concrete (tough), Concrete (soft), Concrete (pre-cast), Concrete (normal-weight over metal deck), Steel
ultimate

Technical Data

Material
Carbon steel
For use with (tools)
DX 351, DX 460, DX 5, DX 6
Base materials
Concrete (tough), Concrete (soft), Concrete (pre-cast), Concrete (normal-weight over metal deck), Steel
Corrosion protection
Zinc-coated
Environmental conditions
Dry indoor
Product class
Ultimate

Documents

Features & Applications

Features

  • Shorter installation time – wire rope suspensions are a faster alternative to threaded rod
  • Easier to adjust – self-closing wire lock can be adjusted tool-free, making levelling, retrofitting and long drop lengths much simpler
  • Aesthetics – wire rope suspension is a discreet installation method for exposed building services and open soffits

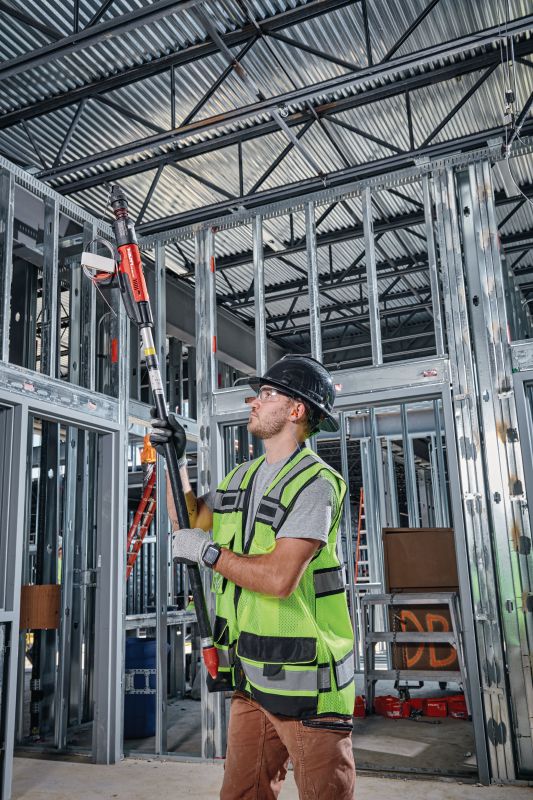

  • Can be fastened while standing on the floor using the DX pole tool – safer method of installation avoiding lifts and ladders

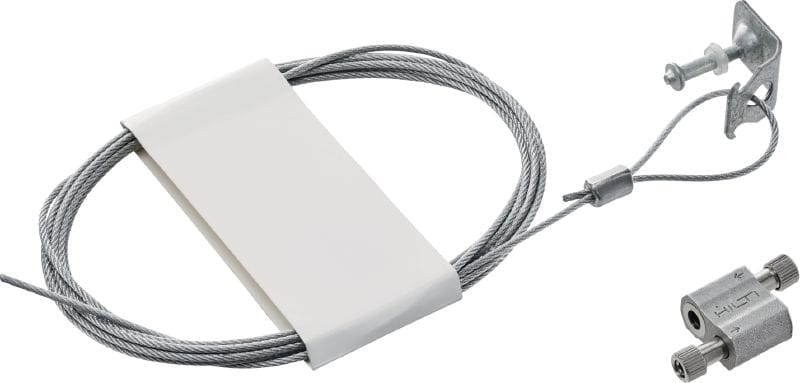

  • All you need in one sales box (lock, pre-cut wires and nail clip)

Applications

  • Suspending spiral HVAC duct from concrete

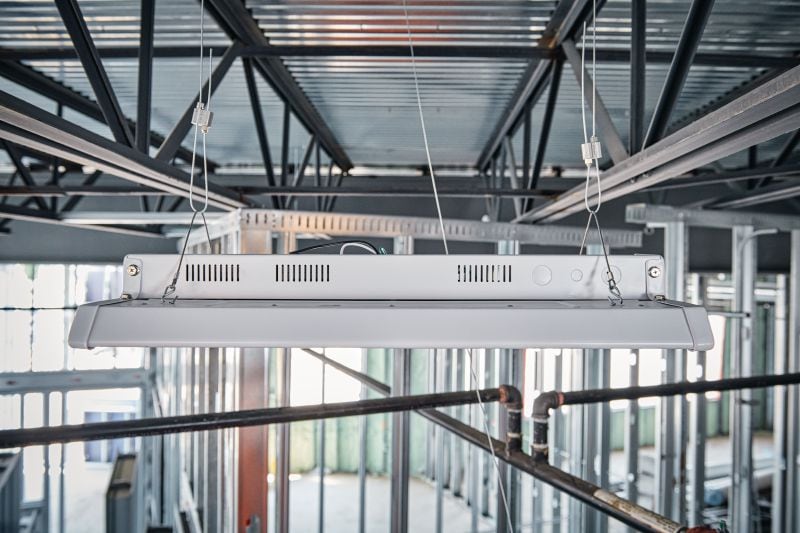

  • Suspending electrical lighting from the ceiling
  • Suspending security attachments (secondary attachment point to work if first attachment point fails)
  • Up to 100 lbs allowable load values
  • Suitable for use in dry, indoor environments only

For approval or certificate information, please see individual items.
