MQS-SP-L

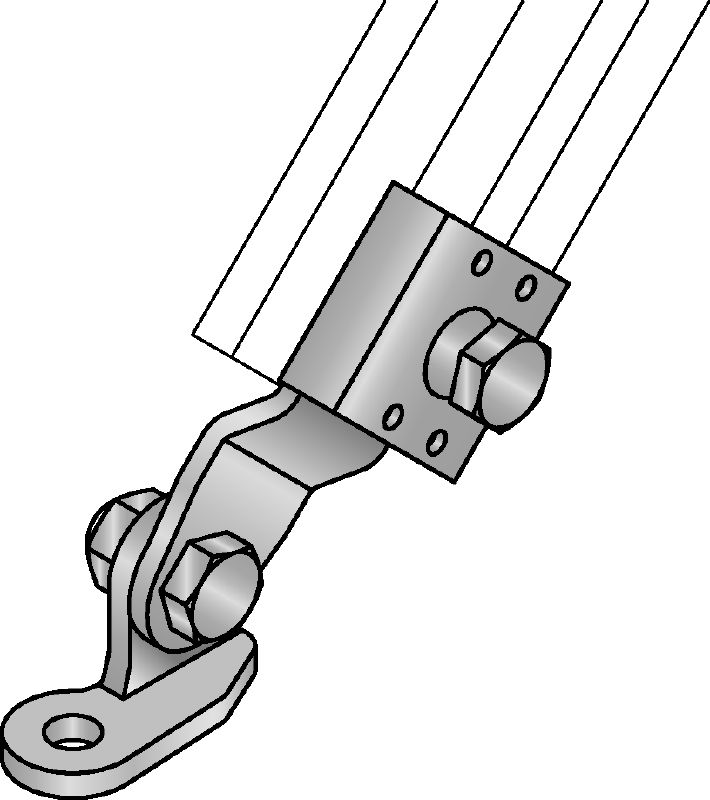

MQS-SP-L, Seismic Sprinkler connector longitudinal (81452)

Galvanised preassembled channel connector with FM approval for longitudinal seismic bracing of fire sprinkler pipes

Material composition: Connector: S275JR - DIN EN 10025, Channel plate: S275JR - DIN EN 10025, Base plate: S355MC - DIN EN 10149-2, Bolt: Steel grade 8.8, Nut: Steel grade 8
Surface finish: Indoor Coated - Electro galvanised
Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Technical Data

Material composition

Connector: S275JR - DIN EN 10025, Channel plate: S275JR - DIN EN 10025, Base plate: S355MC - DIN EN 10149-2, Bolt: Steel grade 8.8, Nut: Steel grade 8

Surface finish

Indoor Coated - Electro galvanised

Environmental conditions

Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Documents

Features & Applications

Features

Maximum installation flexibility due to adjustable angle
FM-approved system for bracing of fire sprinkler installations
Meets USA National Fire Protection Association (NFPA) requirements for seismic braces
Shear-off bolt heads make installation and inspection quicker and easier
Fully preassembled connector with pivoting functionality for quicker, easier and flexible mounting
