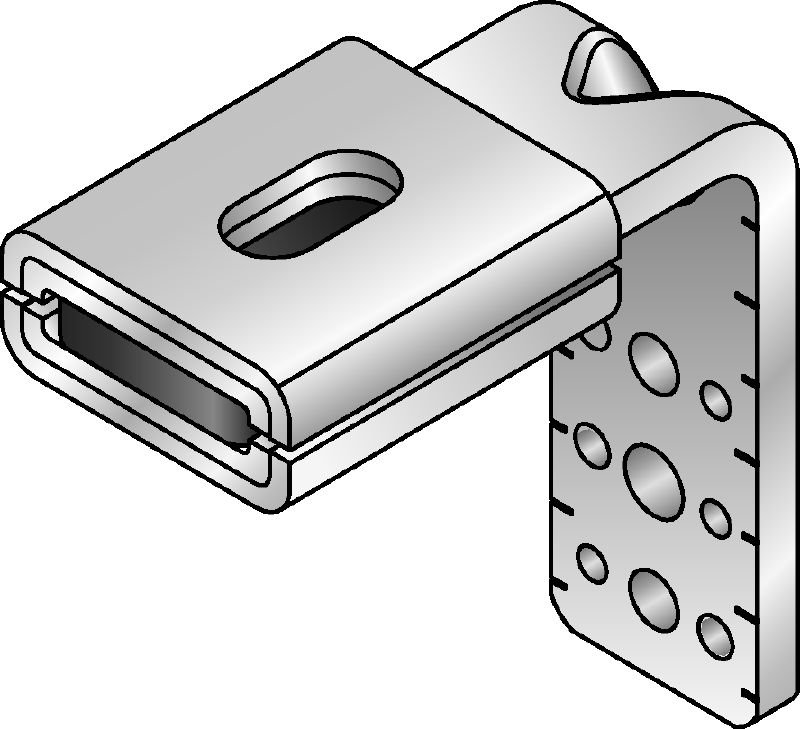

Galvanised heavy air duct bracket for fastening heavy ventilation ducts

  • Approvals: Acustic insulaton DIN 4109 inspected
  • Noise reduction: 12 dB (A)
  • Insulation material: EPDM rubber

Choose options

Quantity
Total Pieces
NaN
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

No products available

Please Contact us to find a solution.

Technical Data

MVA-LH, bemasst, metric, Bracket Kit
Approvals
Acustic insulaton DIN 4109 inspected
Noise reduction
12 dB (A)
Insulation material
EPDM rubber
Material composition
DD11 - DIN EN 10111
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Hardness insulation material
60° ±5° Shore A
Temperature resistance
-40 - 110 °C

Documents

Features & Applications

Features

  • Engineered for heavy loads
  • Convenient solution for bridging the thickness of the insulation (up to 30 mm)
  • Elongated hole – for compensation of building tolerances
  • Hole size/shape suitable for fastening to ducts using self-drilling screws (4.2, 4.8, 6.3) blind rivets and metric screws
  • Rapid installation possible with in-place parts

Applications

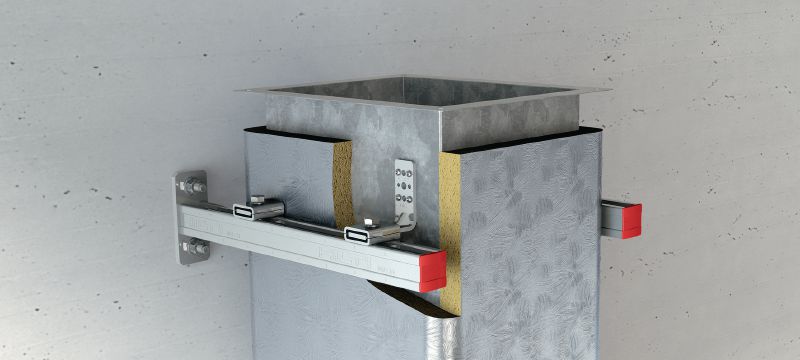

  • Fastening rectangular air ducts in vertical shafts

For approval or certificate information, please see individual items.
