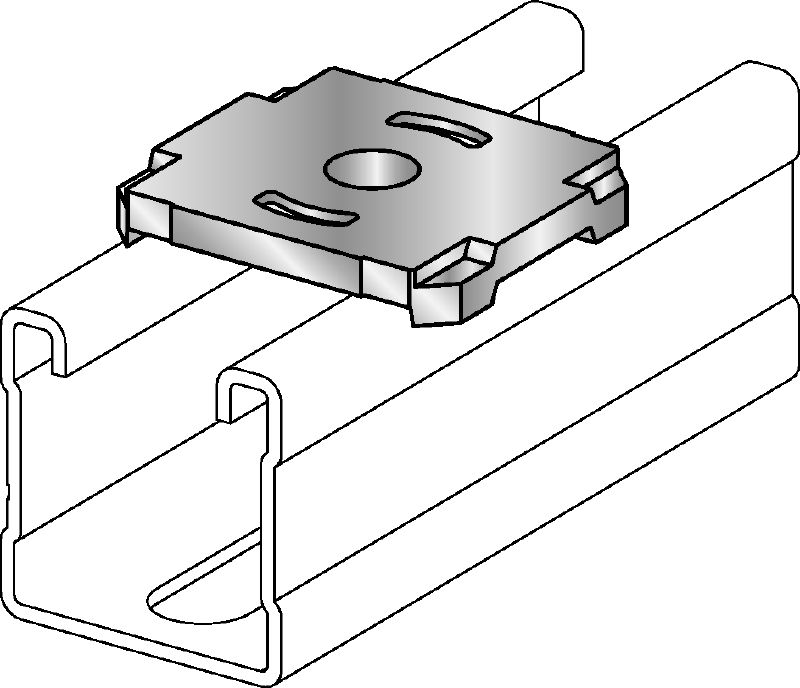

Galvanised bored plate for fire-tested trapeze assembly and anchoring

  • Material composition: S235JR - DIN EN 10025
  • Surface finish: Indoor Coated - Electro galvanised
  • Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)
standard

Customers also searched for connecting channelsinstalling metal channelsglavanised connectorsconnectors or metal connectors.

Technical Data

19957_2 (4339688)
IS_ME_100_2 (4339689)
MQZ-F
IS_HNA_238.eps
Material composition
S235JR - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Product class
Standard

Documents

Features & Applications

Features

  • Suitable for MQ strut channels and brackets
  • Easy-to-use single part
  • Suitable for MQ installation channels and brackets

Applications

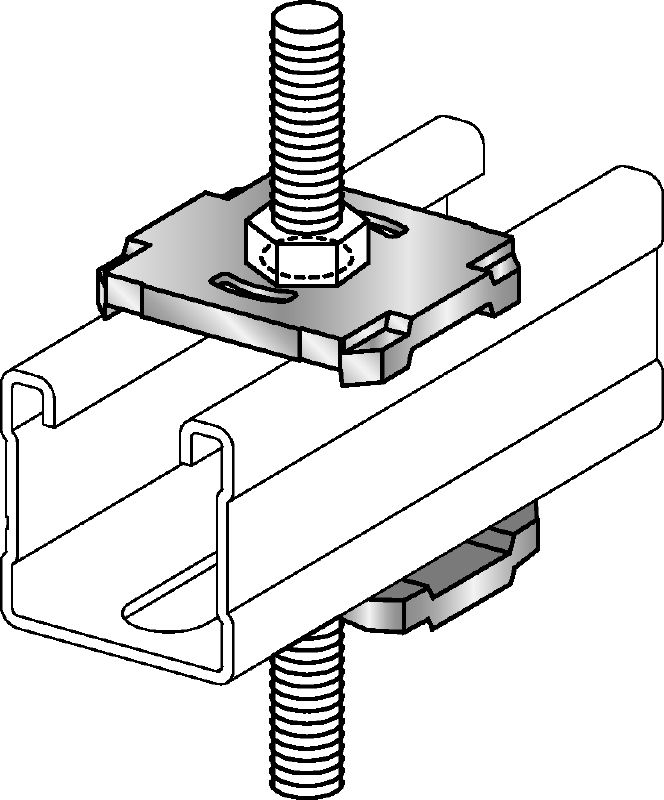

  • Attaching strut channels and brackets to walls, ceilings or floors
  • Wing nut or spring nut applications with angles, connectors and brackets
  • Anchor fastening of installation channels

For approval or certificate information, please see individual items.
