GA

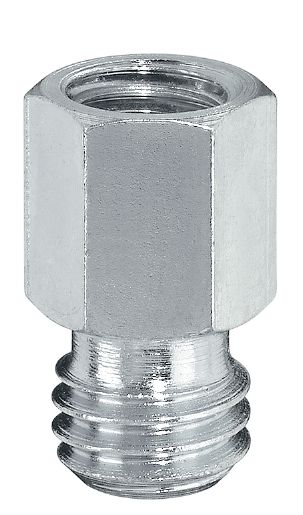

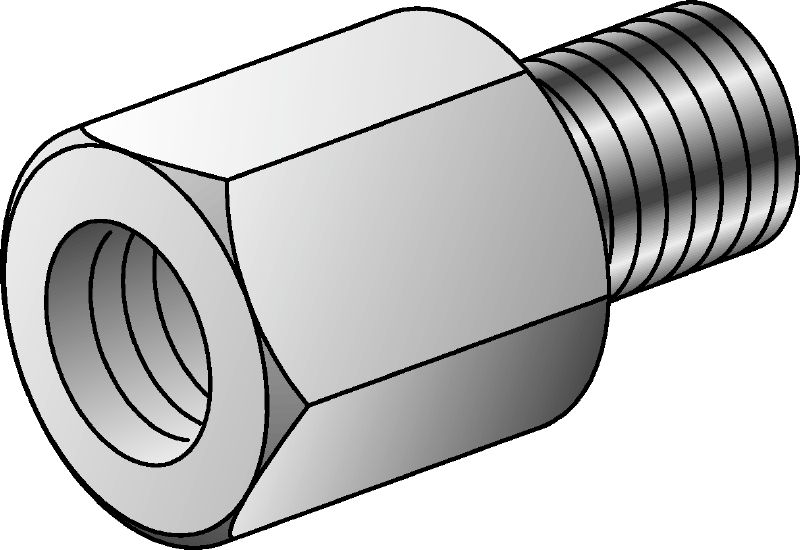

Thread adapter GA M10-M12 #47391
Galvanised thread adapters to connect various internal and external thread diameters
- Material composition: Steel grade 4.6
- Surface finish: Indoor Coated - Electro galvanised
- Wrench size - W: 17 mm
Choose options
Inside thread - MI
- M12
Outside thread - MA
- M10
Length - L
- 25 mm
Pack size
- 100 pc
Quantity
Packs
Total Piece
100
Discounted net
SR 700.00
SR 7.00 / 1 Piece
Technical Data
Material composition
Steel grade 4.6
Surface finish
Indoor Coated - Electro galvanised
Wrench size - W
17 mm
Inside thread - MI
M12
Outside thread - MA
M10
Length - L
25 mm
Weight
24 g
A
15 mm
B
8 mm
Load range
Light-duty
Maximum tensile load - F
7.18 kN
Features & Applications
Features
- Allows various compatible Hilti components to be fitted and matched together
Applications
- Connecting various internal/external thread diameters
- Recommended for use in dry, interior environments
