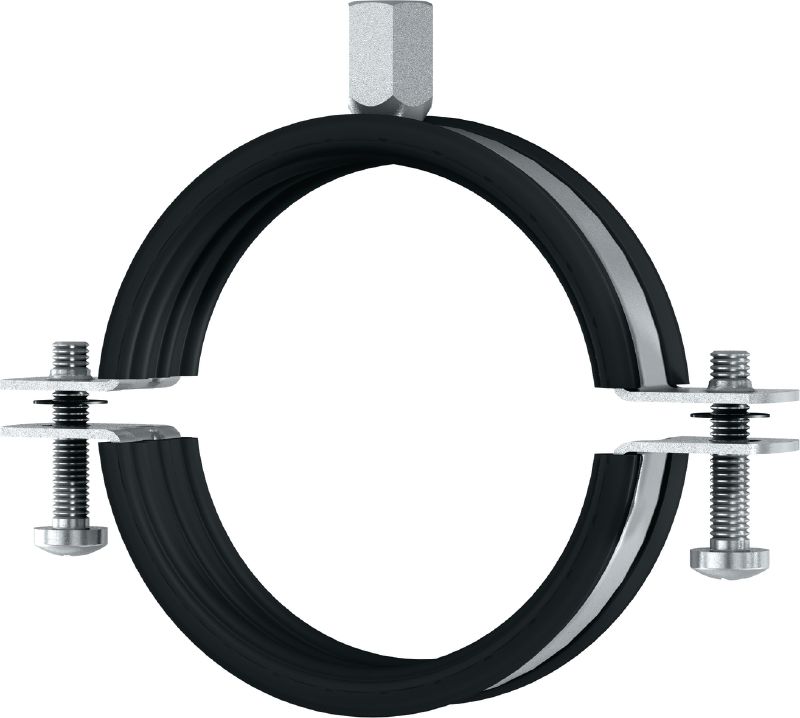

Galvanised pipe clamp with sound insulation for economical light/medium-duty applications

  • Approvals: Acustic insulaton DIN 4109 inspected, Fire Class E
  • Noise reduction: 16 dB (A)
  • Temperature resistance: -40 - 110 °C

Customers also searched for pipe clampspipe ringspipe supportsinstalling pipes or connectors.

Choose options

Clamping range - D
  • 20 - 24 mm
  • 25 - 28 mm
  • 32 - 36 mm
  • 38 - 46 mm
  • 48 - 53 mm
  • 59 - 66 mm
  • 67 - 73 mm
  • 75 - 80 mm
  • 87 - 92 mm
  • 107 - 115 mm
  • 149 - 161 mm
  • 162 - 170 mm
  • 177 - 182 mm
Thread connection - M
  • M8, M10
Nominal pipe size (imperial)
  • 1/2 in
  • 3/4 in
  • 1 in
  • 1-1/4 in
  • 1-1/2 in
  • 2 in
  • 2-1/2 in
  • 3 in
  • 4 in
  • 6 in
Pack size
  • 25 pc
  • 50 pc
  • 100 pc
  • 150 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From SR 342.25

Technical Data

Approvals
Acustic insulaton DIN 4109 inspected, Fire Class E
Noise reduction
16 dB (A)
Temperature resistance
-40 - 110 °C
Material composition
SPCC-SD FB - Q/BQB402, DC01 – EN 10130
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Insulation material
EPDM
Hardness insulation material
75° ±5° Shore A
Additional product information
The maximum load of 5000 N, in accordance with RAL-GZ 655-B, can be achieved if 8 inch diameter and larger pipe rings are installed using two threaded rods

Documents

Features & Applications

Features

  • Two-screw pipe ring to simplify pipe installation
  • Short connection head allows installation close to a wall, floor or ceiling
  • Clamping ranges suitable for all standard plastic and steel pipes
  • High quality recognised by third-party approvals
  • Securely fixed rubber inlay – virtually impossible to drop or lose

Applications

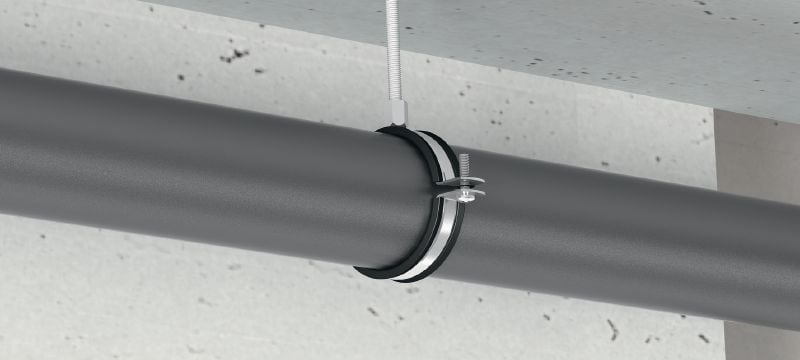

  • Light to medium-duty pipe installations
  • Fastening pipes in residential and industrial construction
  • Fastening fresh water, waste water and heating pipes in residential and industrial construction
  • Recommended for use in dry, interior environments
  • Pipe rings for use in dry interiors only

For approval or certificate information, please see individual items.
