LH Sprinkler loop hanger

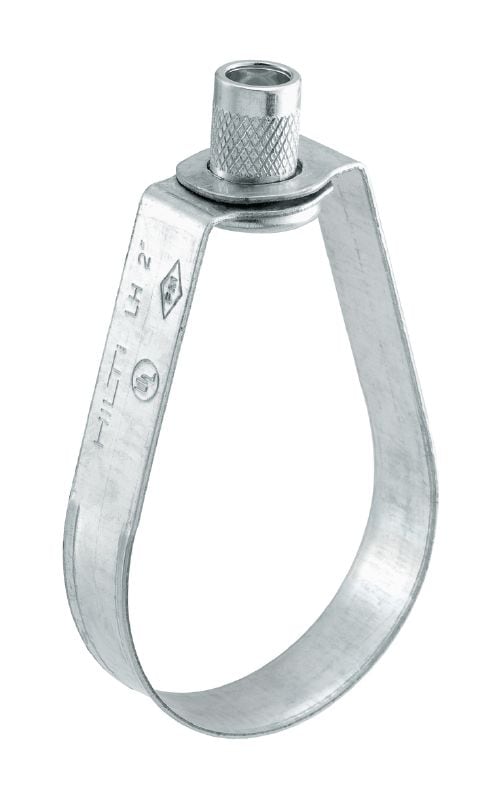

Sprinkler pipe hanger LH 1-1/4" M10 #388615

Galvanised sprinkler loop hanger with FM and UL approvals for fire sprinkler applications

  • Clamping range - D: 42 - 45 mm
  • Nominal pipe size (imperial): 1-1/4 in
  • Thread connection - M: M10

Customers also searched for Installing sprinklershanging pipes sprinkler systemspipe hangerspipe clamps or installation channel.

Choose options

Clamping range - D
  • 34 - 35 mm
  • 42 - 45 mm
  • 48 - 51 mm
  • 57 - 64 mm
  • 70 - 76 mm
Thread connection - M
  • M10
Nominal pipe size (imperial)
  • 1 in
  • 1-1/4 in
  • 1-1/2 in
  • 2 in
  • 2-1/2 in
Pack size
  • 100 pc
Product options
Quantity
Packs
Total Piece
100
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

SR 768.00

SR 7.68 / 1 Piece

Technical Data

LH Prinkler pipe hangers
Clamping range - D
42 - 45 mm
Nominal pipe size (imperial)
1-1/4 in
Thread connection - M
M10
Maximum load - F
2000 N
Approvals
UL approved EX15279, FM approved
Material composition
Carbon steel type B - ASTM A653M-06a, SGCC - JISG 3302
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Cross section thickness - s
1.2 mm
Cross section width - b
16 mm
Distance centre pipe to top - h
71 mm

Documents

Features & Applications

Features

  • Easy pipe installation thanks to two-component sprinkler loop hangers
  • Part of an extensive range of sprinkler pipe fastening solutions for virtually any fire sprinkler installation
  • Helps to save labour by making installation quicker and easier
  • Height adjuster nut to simplify leveling

Applications

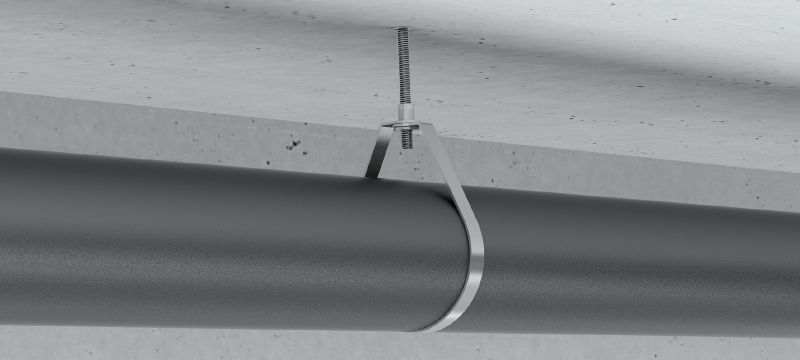

  • single-point fastening for fire sprinkler applications
  • Recommended for use in dry, interior environments
