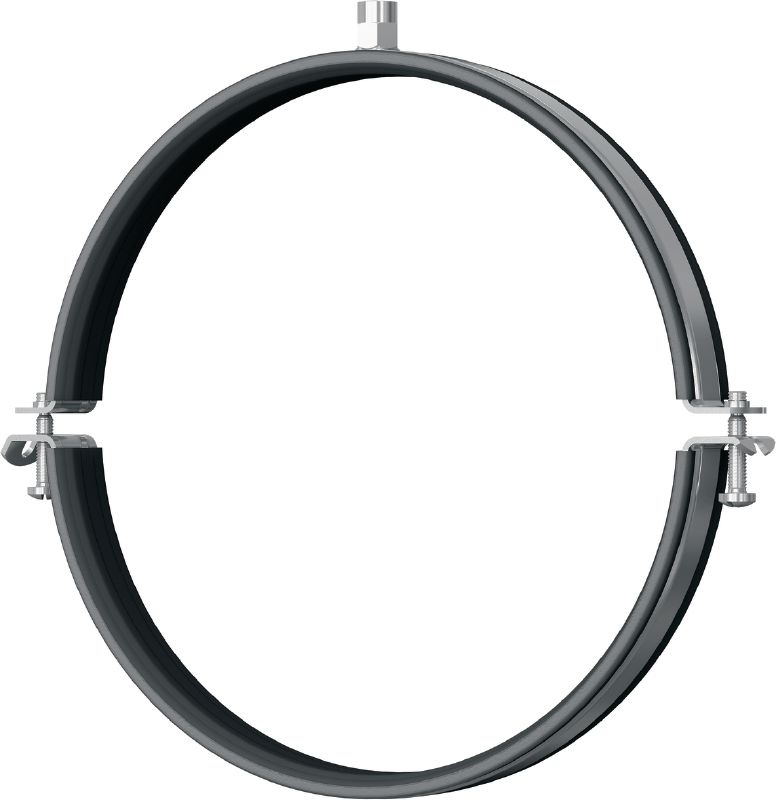

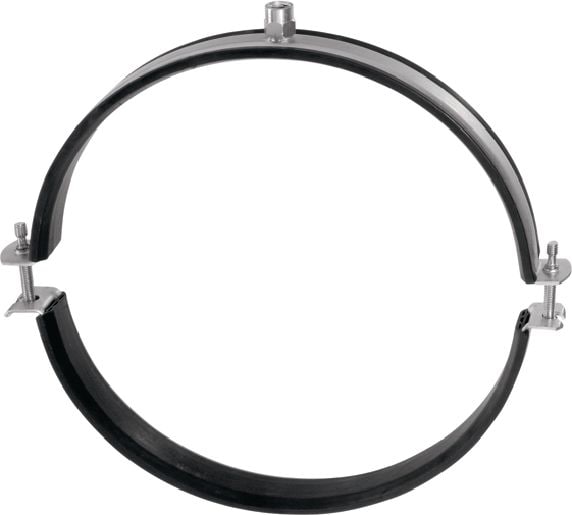

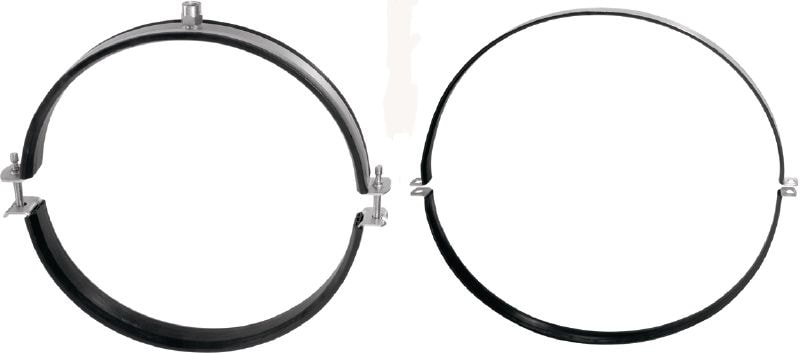

MV-PI Ventilation pipe clamp

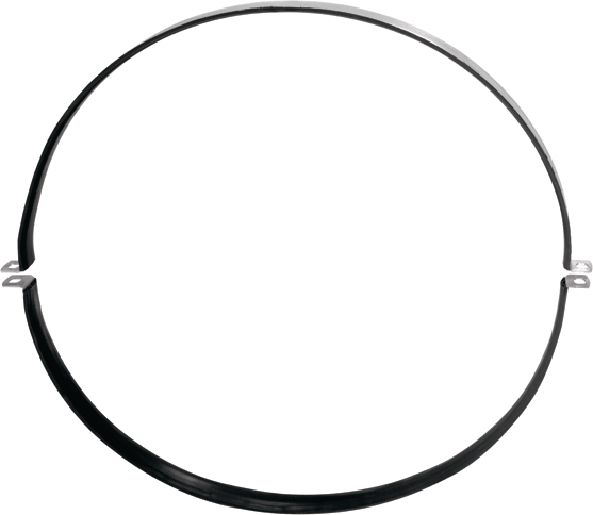

Vent. pipe ring MV-PI 710 #386500

Galvanised ventilation pipe clamp with sound insulation for high productivity in spiral duct applications

  • Thread connection - M: No thread
  • Maximum load - F: 1500 N
  • Approvals: Fire class B2

Choose options

Thread connection - M
  • No thread
Nominal pipe size
  • 710 mm
Pack size
  • 10 pc
Product options
Quantity
Packs
Total Piece
10
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

SR 1,656.00

SR 165.60 / 1 Piece

Technical Data

42897_A2.eps
Thread connection - M
No thread
Maximum load - F
1500 N
Approvals
Fire class B2
Noise reduction
21 dB (A)
Temperature resistance
-40 - 110 °C
Material composition
DD11 - DIN EN 10111
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Insulation material
EPDM rubber
Hardness insulation material
55° ±5° Shore A
Clamping screw
Slot 11x13
Tightening torque
5 Nm
Cross section thickness - s
2.5 mm
Cross section width - b
25 mm
Width - B
778 mm
Distance between holes - A
752 mm
Distance centre pipe to top - h
357 mm

Documents

Features & Applications

Features

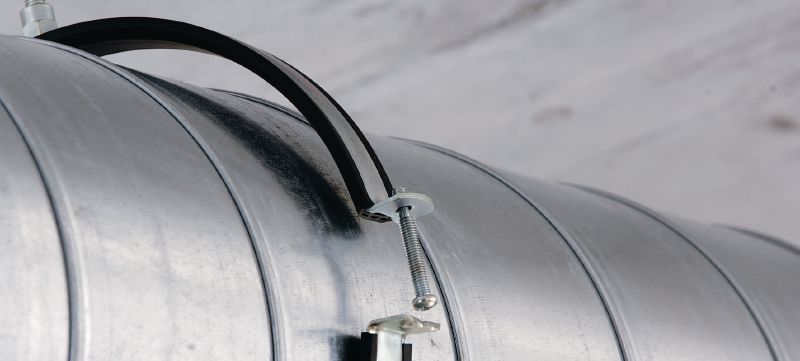

  • Click closure – pipes in different diameters can be inserted and fastened quickly and conveniently using the vertical quick-lock closure
  • Captive acoustic insulation insert – EPDM rubber insert with wide edge-gripping profile (up to 450 mm dia.); adhesive bonded on 500 mm dia. and larger to help prevent slippage during installation
  • Clamping ranges suitable for all standard-sized folded spiral-seam pipes
  • Ventilation pipe rings with M8/M10 connection head
  • Sound insulation certified for DIN 4109

Applications

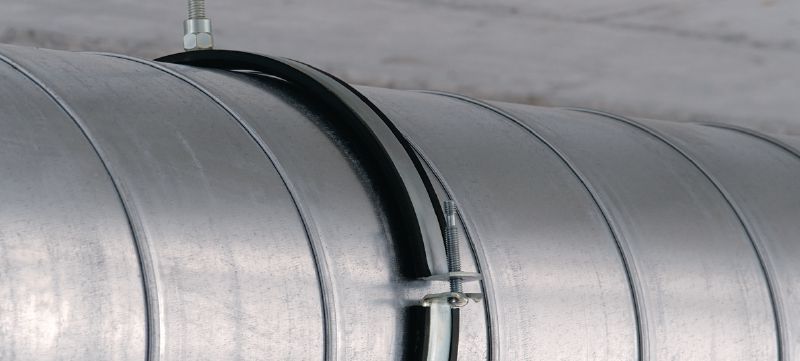

  • Fastening spiral-seam ducts as per DIN 24145/DIN EN 1506
  • Recommended for use in dry, interior environments
