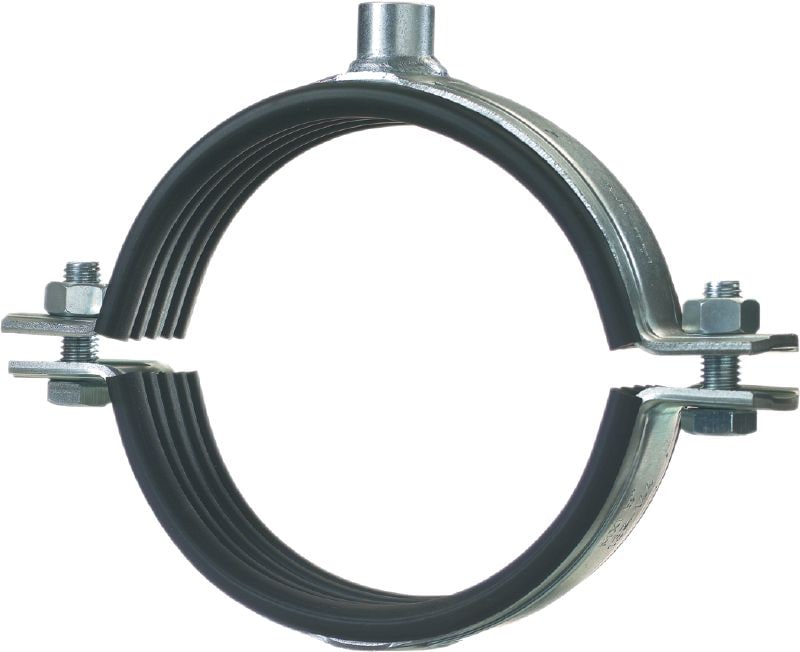

MP-MXI-F heavy-duty pipe clamp
hot-dip galvanised (HDG) pipe clamp with sound insulation for extra heavy-duty applications
- Approvals: Acustic insulaton DIN 4109 inspected, Fire class B2
- Noise reduction: 16 dB (A)
- Temperature resistance: -50 - 120 °C
Customers also searched for pipe clamps, pipe rings, pipe supports, installing pipes or connectors.
Choose options
Clamping range - D
- 108 - 116 mm
- 267 - 274 mm
- 325 - 330 mm
- 348 - 356 mm
Thread connection - M
- M16
Nominal pipe size (imperial)
- 4 in
Pack size
- 1 pc
- 10 pc
- 25 pc
Quantity
Packs
Total Pieces
1
Discounted net
From SR 376.80
Technical Data
Approvals
Acustic insulaton DIN 4109 inspected, Fire class B2
Noise reduction
16 dB (A)
Temperature resistance
-50 - 120 °C
Material composition
DD11 - DIN EN 10111
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Insulation material
EPDM rubber
Hardness insulation material
50° ±5° Shore A
Documents
Features & Applications
Features
- Solid connection head, welded all around
- Strong clamping screws for high load values
- Non-slip, pre-fitted profiled rubber inlay
- Suitable for installing pipes under dynamic loading if used with vibration-damping components
- High resistance to corrosion
Applications

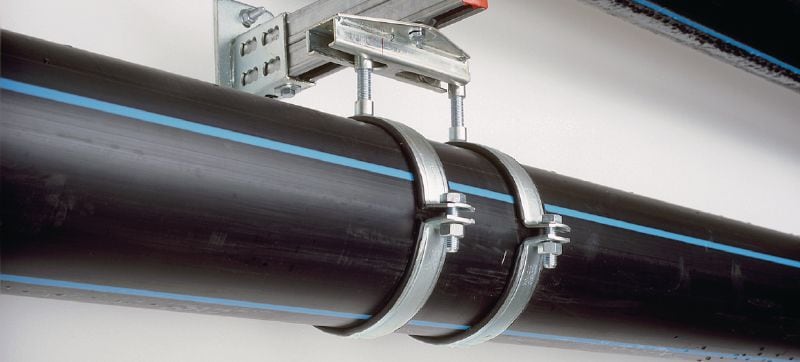

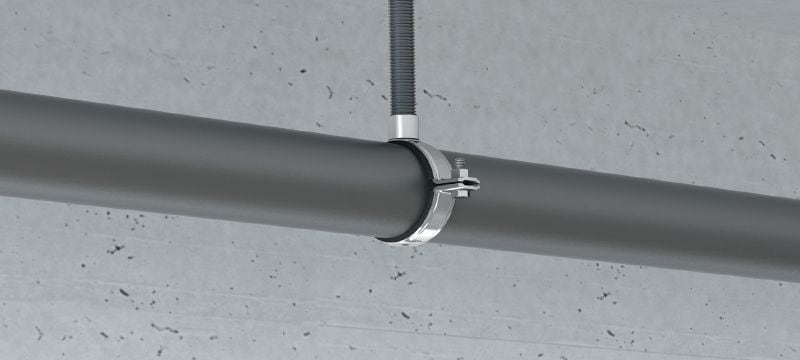

- heavy-duty pipe installations up to 508 mm
- Installing industrial pipes
- Mounting process and control queues
- heavy-duty plumbing and heating applications
- Recommended for use in moderately corrosive outdoor and indoor environments
For approval or certificate information, please see individual items.
