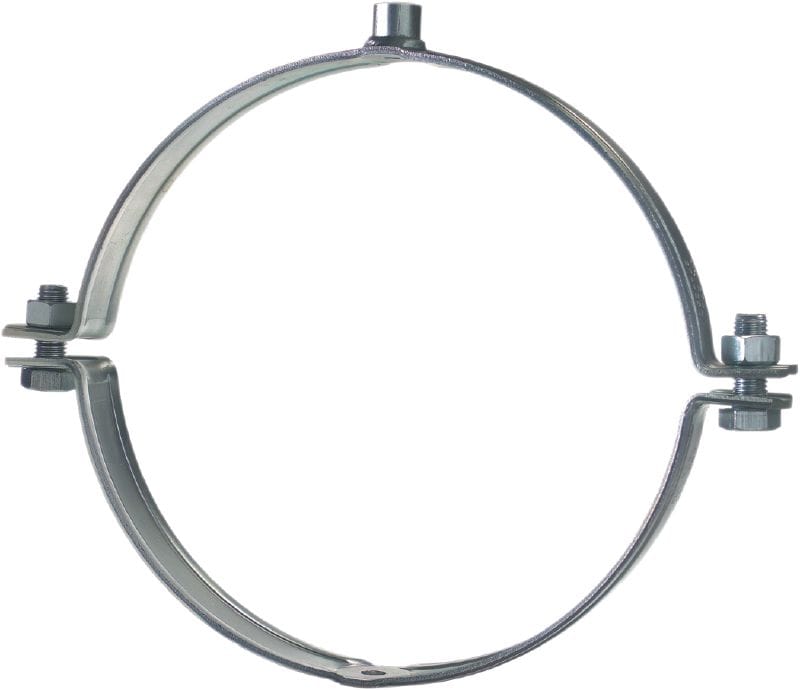

hot-dip galvanised (HDG) pipe clamp without sound insulation for extra heavy-duty applications

  • Material composition: DD11 - DIN EN 10111
  • Surface finish: Outdoor Coated - HDG
  • Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)
standard

Choose options

Clamping range - D
  • 244 - 253 mm
  • 267 - 274 mm
  • 315 - 324 mm
  • 400 - 409 mm
Thread connection - M
  • M16
Pack size
  • 1 pc
  • 10 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From SR 289.60

Technical Data

IS_PR_0018_X03_X04.eps
IS_PR_0018_X03.eps
IS_PR_0018_X04.eps
Material composition
DD11 - DIN EN 10111
Surface finish
Outdoor Coated - HDG
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Product class
Standard

Documents

Features & Applications

Features

  • Solid connection head, welded all around
  • Strong clamping screws for high load values
  • Suitable for installing pipes under dynamic loading if used with vibration-damping components

Applications

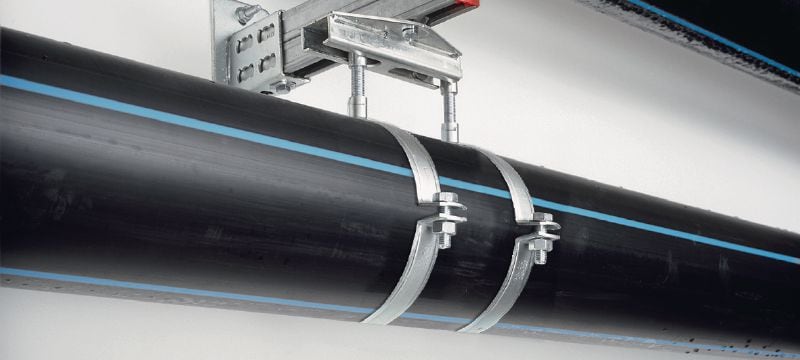

  • heavy-duty pipe installations up to 508 mm
  • Installing industrial pipes
  • Mounting process and control queues
  • Recommended for use in moderately corrosive outdoor and indoor environments
  • Process and control lines

For approval or certificate information, please see individual items.
