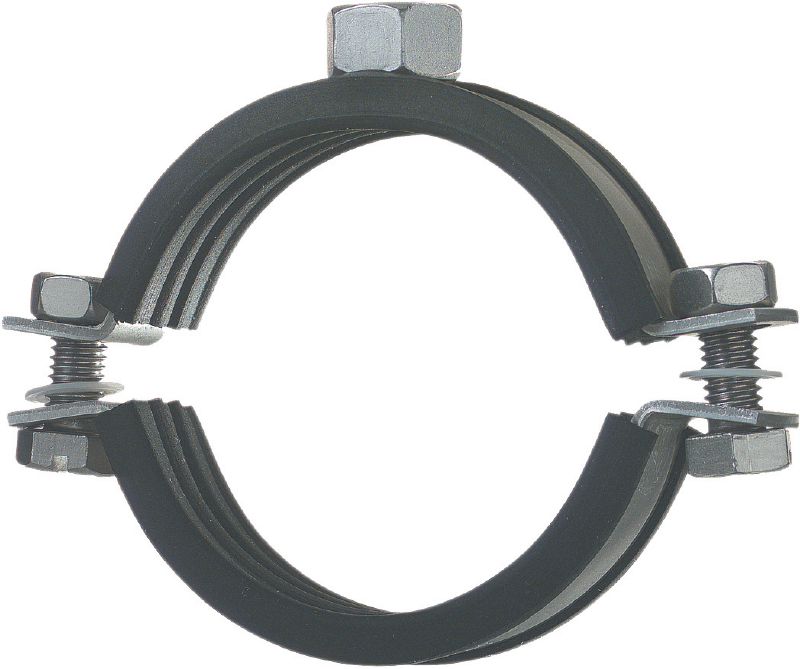

MP-SRN Pipe clamp light-duty (sound insulated)

Pipe ring MP-SRNI 48/50 M10 stnls #374193

Premium stainless steel pipe clamp with sound inlay for light-duty applications

  • Clamping range - D: 48 - 52 mm
  • Nominal pipe size (imperial): 1-1/2 in
  • Thread connection - M: M10
premium

Choose options

Clamping range - D
  • 48 - 52 mm
Thread connection - M
  • M10
Nominal pipe size (imperial)
  • 1-1/2 in
Pack size
  • 25 pc
Product options
Quantity
Packs
Total Piece
25
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

SR 2,627.00

SR 105.08 / 1 Piece

Technical Data

60290_S18_S19.eps
60290_S18.eps
EB 20M/8
Clamping range - D
48 - 52 mm
Nominal pipe size (imperial)
1-1/2 in
Thread connection - M
M10
Maximum load - F
1600 N
Approvals
Fire class B2
Noise reduction
15 dB (A)
Temperature resistance
-50 - 120 °C
Material composition
Stainless steel, 1.4571/1.4404 (A4) - EN 10088, AISI 316Ti / AISI 316L
Surface finish
Outdoor Plus - Stainless Steel
Environmental conditions
Outdoor high pollution (C4 – high / C5)
Insulation material
EPDM rubber
Hardness insulation material
50° ±5° Shore A
Clamping screw
M8
Tightening torque
3 Nm
Cross section thickness - s
2 mm
Cross section width - b
17.5 mm
Width - B
91 mm
Product class
Premium
Distance centre pipe to top - h
39 mm

Documents

Features & Applications

Features

  • Higher resistance to corrosion (A4 stainless steel)
  • Short connection head allows installation close to a wall, floor or ceiling
  • Pipe ring with verified fire resistance as per DIN 4102, part 2
  • Closure screw secured to help prevent loss
  • Non-slip (bonded), pre-fitted rubber inlay

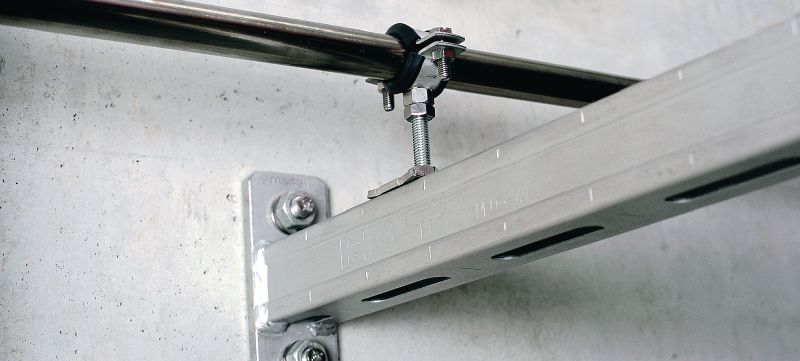

Applications

  • Light-duty pipe installations up to 2" (or 64mm)
  • Heating, plumbing and industry applications in corrosive environments
  • Mounting pipes in food industry (except production) and in water treatment
  • Water treatment
  • For fastening pipes up to 2" in corrosive environments
