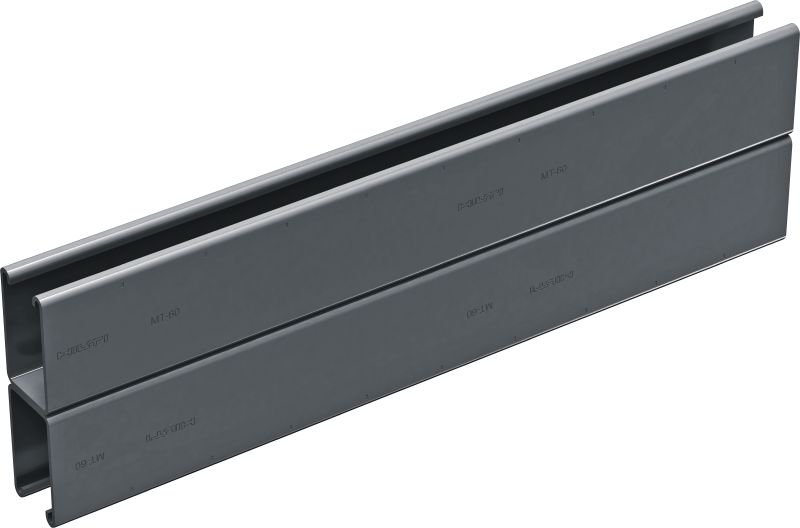

MT-60D OC C-Channel profile

Channel MT-60D OC #2362801

Medium-duty double C-Channel profile for use with MT-FL/MT-TL components in outdoor environments

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

SR 50,212.50

SR 334.75

1 m

Technical Data

Material composition

S280GD

Surface finish

Outdoor Coated - HDG

Material thickness

2.75 mm

Weight

8.03 kg

Environmental conditions

Outdoor, low to moderate pollution (C3)

pdf ETA-23-0105 Static Fire MT Channels, English [ 3.1 MB ]

Economical – high load/weight ratio and rapid assembly make MT strut channel a more efficient alternative to welded MEP support structures
Corrosion resistance – coated with zinc magnesium, which helps MT strut to resist moisture and chemical corrosion without any additional treatment, even of cut edges
Simpler to design – you can use Hilti MT components for all MEP installations from the lightest trapeze to the heaviest-duty modular framing
Simpler to install – compatible with the innovative MT System Twist-Lock, enabling the use of a wide range of MT connectors and baseplates
Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families, and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering
