MT-10 Basic profile

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG003266_v1 (217095)
LCG003464_v2_cropped (224161)
01_IS_MT-10_0001 (218610)

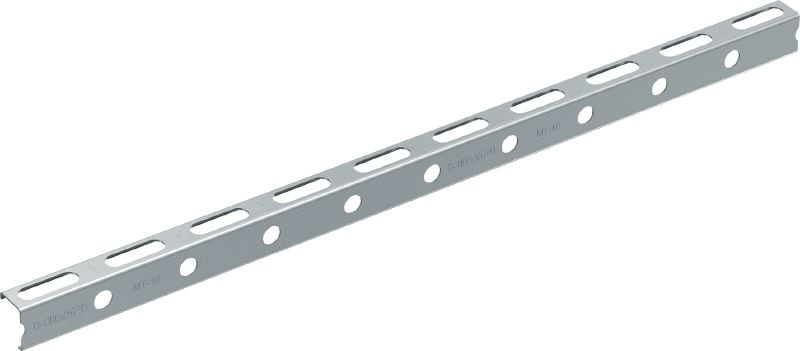

Light-duty basic profile for use in indoor environments

  • Material composition: S280 or better steel
  • Surface finish: Indoor Coated - Pre-galvanised
  • Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Choose options

Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Details
Technical illustrations
Material composition
S280 or better steel
Surface finish
Indoor Coated - Pre-galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Documents

pdf Corrosion handbook, English [ 9.6 MB ]

Features & Applications

Features

  • Economical – high load/weight ratio and rapid assembly make MT strut channel a more efficient alternative to welded MEP support structures
  • Complexity kept to the minimum – optimising logistical and on-site operations, as well as providing simplicity in installation
  • Economical solution for simple threaded rod trapeze frames
  • Fully compatible with the MT System – direct mounting on MT girders possible
  • Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering

Applications

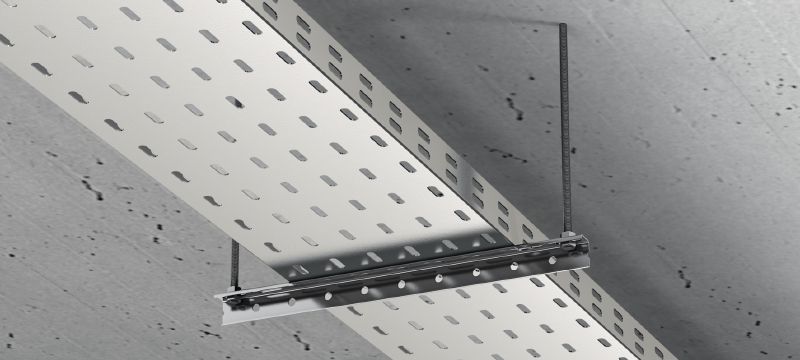

  • Strut trapeze to support pipes, ducts and cable trays in dry, indoor environments
  • Suitable for use in dry, indoor environments

For approval or certificate information, please see individual items.
