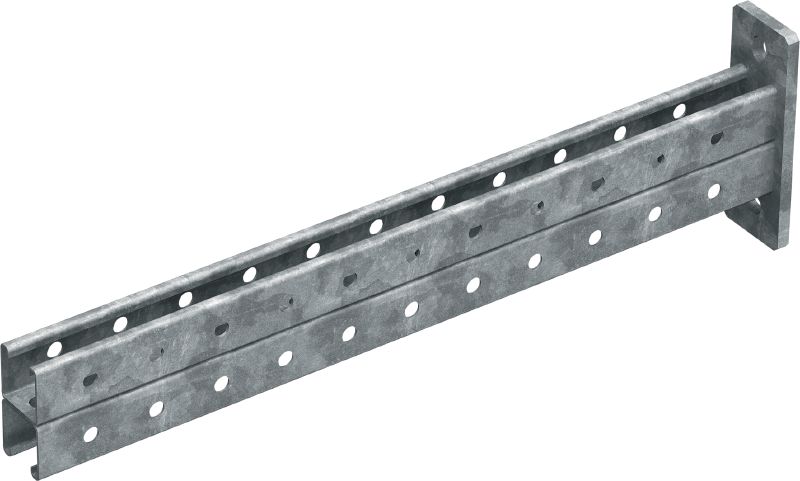

MT-BR-40D OC bracket

Bracket MT-BR-40D 600 OC #2271449

medium-duty C-Channel double-bracket for indoor applications

  • Material composition: Q235 or better steel
  • Surface finish: Hot-dip galvanised - for outdoor use
  • Material thickness: 10 mm

Choose options

Length - L
  • 600 mm
Pack size
  • 6 pc
Product options
Quantity
Packs
Total Piece
6
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

SR 2,086.50

SR 347.75 / 1 Piece

Technical Data

03_IS_MT-BR-40D_0001 (218680)
Material composition
Q235 or better steel
Surface finish
Hot-dip galvanised - for outdoor use
Material thickness
10 mm
Weight
3.2 kg
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Length - L
600 mm

Documents

Features & Applications

Features

  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
  • Economical – high load/weight ratio and rapid assembly make MT strut channel a more efficient alternative to welded MEP support structures
  • Easy to instal – compatible with the Hilti MT Twist-Lock, a faster alternative to spring nuts for assembling a modular support system
  • Adjustable – two slotted holes simplify leveling and fine adjustment
  • Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering

Applications

  • Supporting pipe rings, ventilation ducts, cable trays and other MEP support hardware
  • Mounting medium-duty MEP installations on concrete
  • Suitable for use in moderately corrosive environments
