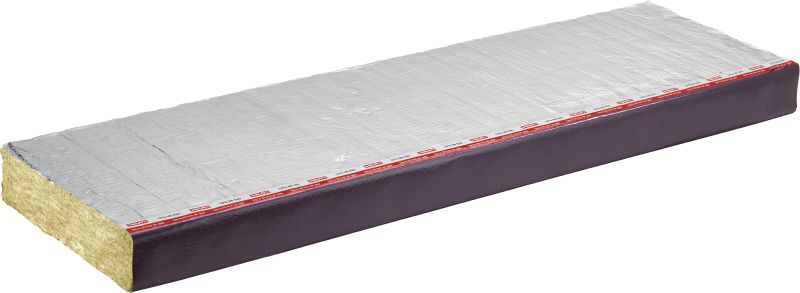

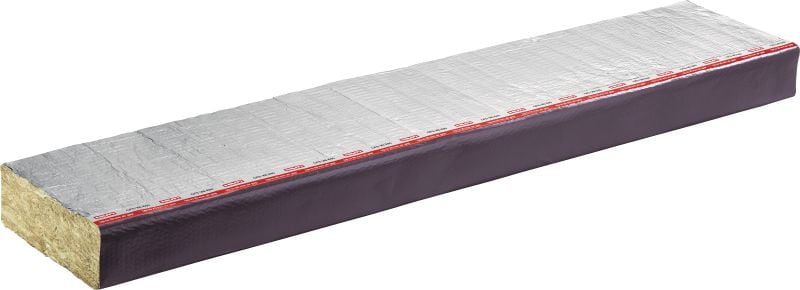

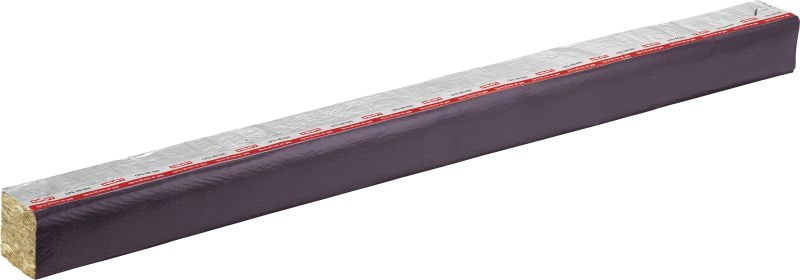

Pre-formed fire cavity barrier for rainscreen cladding with 60 minutes of fire integrity and air gaps up to 25 mm

  • Length: 1200 mm
  • Height: 80 mm
  • Density: 80 kg/m³

Choose options

Cavity depth
  • 100 mm
  • 150 mm
  • 200 mm
  • 250 mm
  • 300 mm
  • 350 mm
  • 400 mm
Pack size
  • 5 pc
  • 10 pc
  • 15 pc
  • 25 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From SR 1,885.00

Technical Data

Length
1200 mm
Height
80 mm
Density
80 kg/m³
Application
Cladding, Ventilated façade
Base materials
Concrete, Masonry, SFS
Mold and mildew performance
Class 0 (ASTM G21, ISO 846 Method A)
Storage and transportation temperature range
-20 - 60 °C
Shelf life
Unlimited 1
  1. at 77°F/25°C and 50% relative humidity; from date of manufacture

Documents

Features & Applications

Features

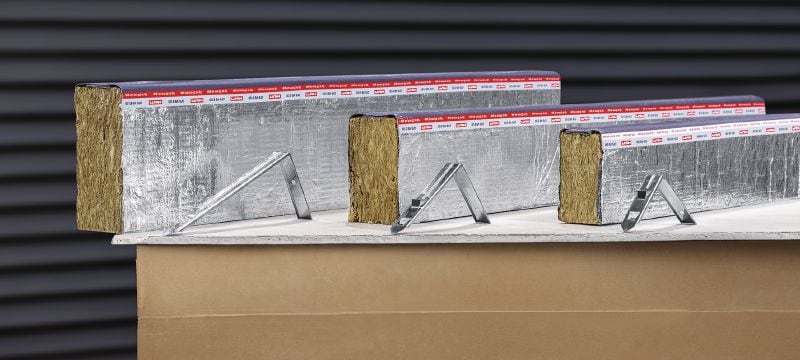

  • Faster installations – new push-to-fit bracket system eliminates bending, cutting and trimming, so you can instal up to 40% faster than standard brackets
  • Reduced rework – strengthened brackets help prevent barrier sagging for fewer adjustments
  • Extensive test evidence – tested and approved for a wide variety of Speciality applications
  • Full system solution – pair with Hilti façade substructures and anchors for an all-in-one solution for rainscreen cladding
  • Direct fastening tested – combine with our range of direct fastening solutions for even faster installations

Applications

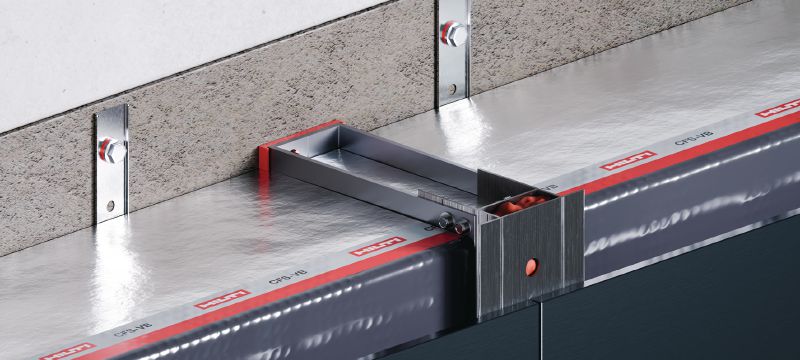

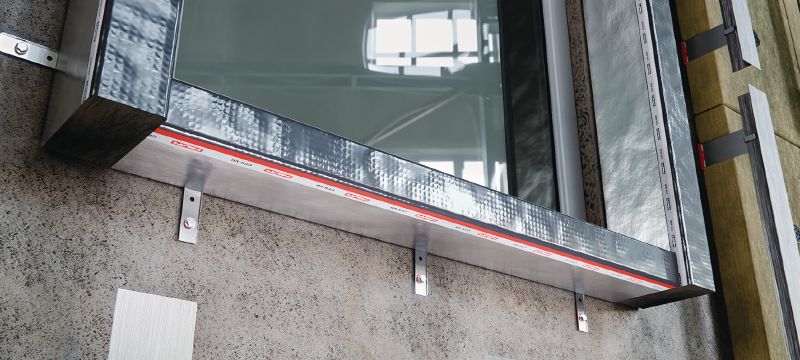

  • Sealing building envelope cavities to better prevent the spread of fire via the façade

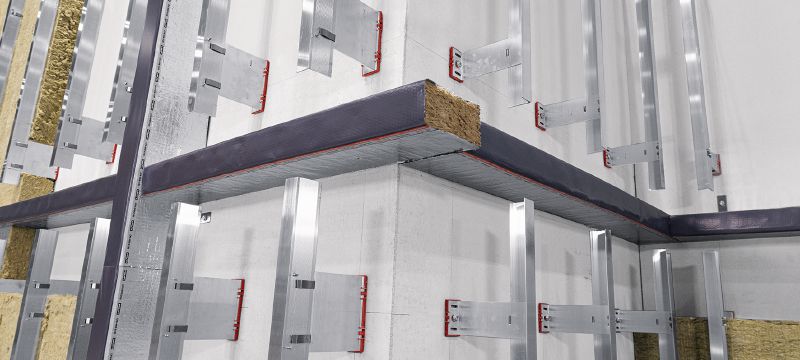

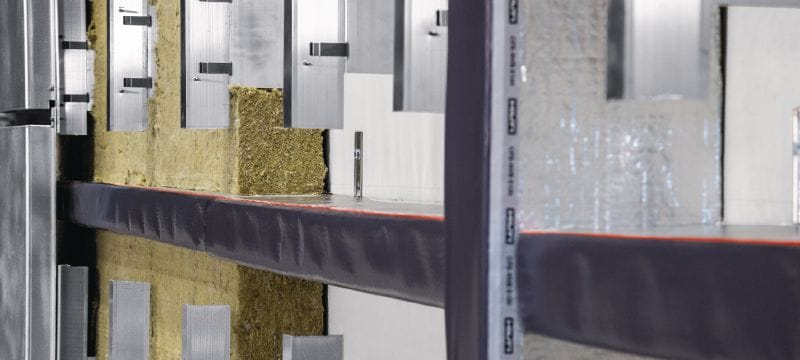

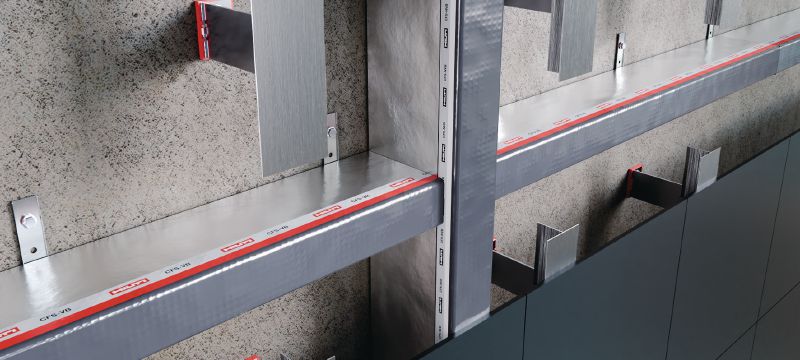

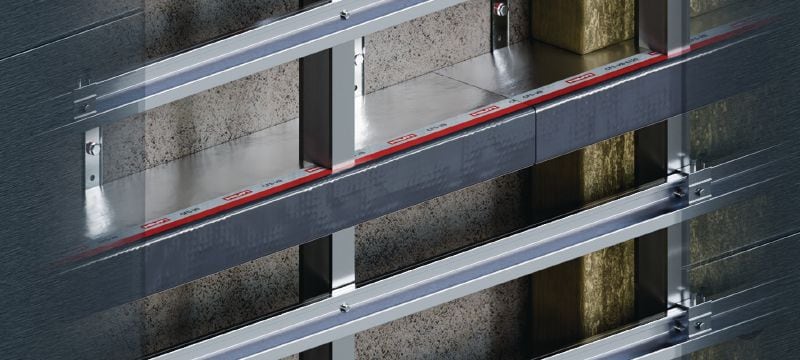

  • Firestopping ventilated rainscreen cladding while leaving an air gap of up to 25mm
  • Verified fire resistance for 60 minutes integrity and up to 30 minutes insulation according to ASFP TGD19

For approval or certificate information, please see individual items.
