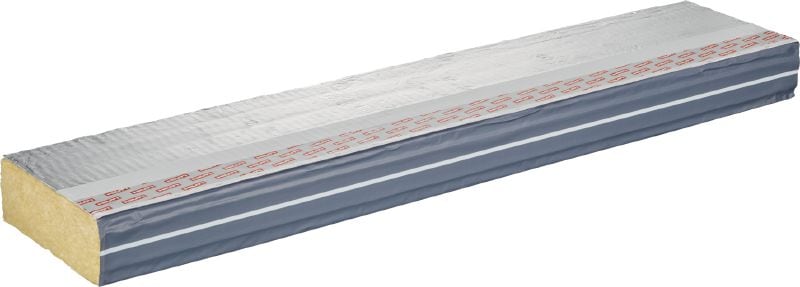

Pre-formed intumescent fire cavity barrier for ventilated façades

  • Application: Ventilated façade
  • Movement: No
  • Product class: Ultimate
ultimate

Choose options

Width
  • 150 mm
  • 200 mm
  • 250 mm
  • 300 mm
  • 400 mm
Pack size
  • 12 pc
  • 14 pc
  • 20 pc
  • 24 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From SR 7,672.00

Technical Data

Application
Ventilated façade
Movement
No 1
Product class
Ultimate
  1. according to HTC 1250

Documents

Features & Applications

Features

  • Faster, easier installation – cavity barriers arrive on-site ready to fasten in place using the included stainless steel brackets
  • Verified fire resistance – tested according to Association for Specialist Fire Protection (ASFP) TGD 19
  • Extensive range – barriers and brackets available for most common cavity widths
  • Design support available – contact your local Hilti Building Envelope Specialists for advice on complex passive fire protection detailing

Applications

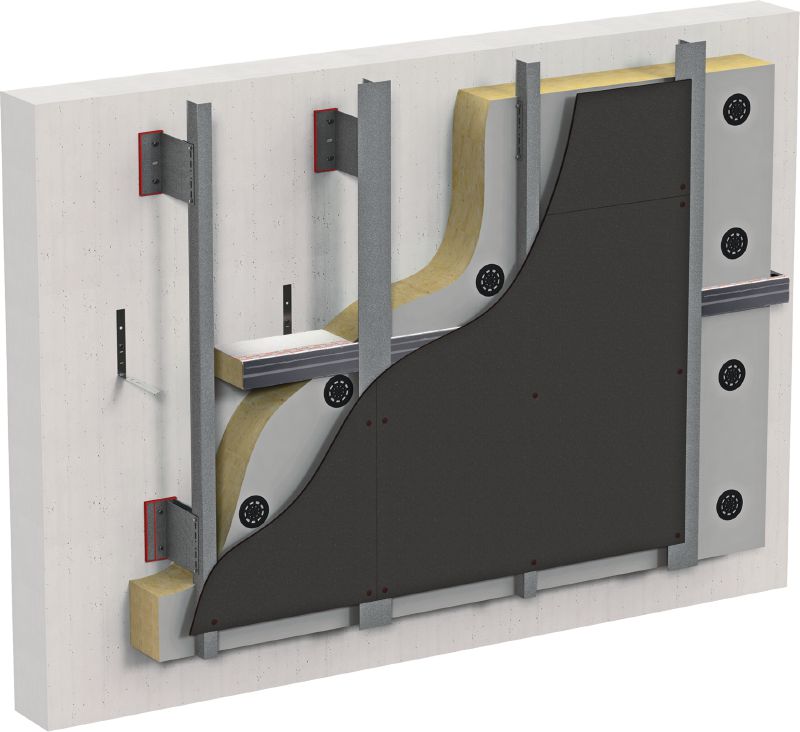

  • Sealing building envelope cavities to better prevent the spread of fire via the façade
  • Firestopping ventilated rainscreen cladding facades with gaps of 25 mm or less
  • Providing up to 60 minutes fire integrity and 30 minutes insulation according to TGD19
  • Providing up to 90 minutes fire integrity and 60 minutes insulation according to BS476-20

For approval or certificate information, please see individual items.
