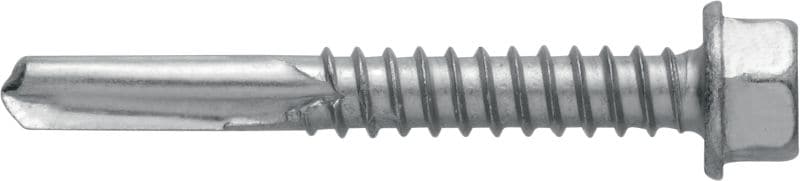

S-MD05SS Self-drilling metal screws
Self-drilling screw (A4 stainless steel) without washer for thick metal-to-metal fastenings (up to 15 mm)
- Screw drive/recess type: Hexagon 8
- Base materials: Carbon steel, Aluminium
- Environmental conditions: Dry indoor, Indoor with temporary condensation, Outdoor with low pollution, Outdoor with moderate concentration of pollution, Outdoor, areas with heavy industrial pollution, Close proximity to roads, Coastal areas
premium
Technical Data
Screw drive/recess type
Hexagon 8
Base materials
Carbon steel, Aluminium
Environmental conditions
Dry indoor, Indoor with temporary condensation, Outdoor with low pollution, Outdoor with moderate concentration of pollution, Outdoor, areas with heavy industrial pollution, Close proximity to roads, Coastal areas
Screw diameter d
5.5 mm
Screw head diameter
10 mm
Product class
Premium
Washer type
none
Documents
Features & Applications
Features
- Self-drilling screw for fast assembly in one step
- For more reliable fastening in highly corrosive environments
- Fast and robust drill tip for use on high-strength steel (up to grade S 450 GD) with Racing Tip technology – a wave-form cutting edge which removes chips much faster and helps prevent point burn-out
- For more reliable fastenings with defined load values
- Attractive final appearance – screw head can be coloured to match the façade
Applications
- Fastening sheet metal and profiles to steel substructures and framing, with or without intermediate insulation layers
- Stainless steel (A4) for fastening in highly corrosive environments
- Thick metal-to-metal connections (up to 15 mm)
- Fastening aluminium façade systems
For approval or certificate information, please see individual items.
