S-MD 55 S Self-drilling metal screws

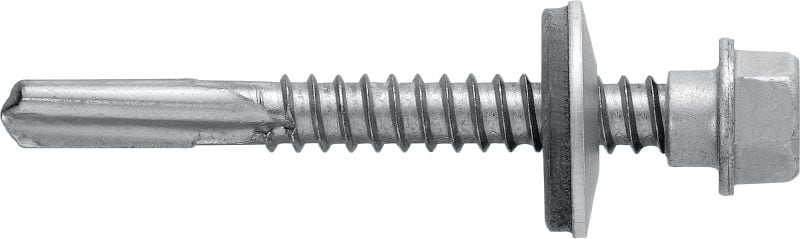

Self-drill screw S-MD55S 5,5x65 #2209962

Self-drilling screw (A2 stainless steel) with 16 mm washer for thick metal-to-metal fastenings (up to 15 mm)

  • Screw drive/recess type: Hexagon 8
  • Washer size: 16 mm
  • Base materials: Carbon steel, Aluminium
premium

Choose options

Thickness fastened range MF
  • 4.6 - 36 mm
Length
  • 65 mm
Pack size
  • 100 pc
Product options
Quantity
Packs
Total Piece
100
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

SR 490.00

SR 4.90 / 1 Piece

Technical Data

Screw drive/recess type
Hexagon 8
Washer size
16 mm
Base materials
Carbon steel, Aluminium
Environmental conditions
Dry indoor, Indoor with temporary condensation, Outdoor with low pollution, Outdoor with moderate concentration of pollution
Screw diameter d
5.5 mm
Length
65 mm
Screw head diameter
10 mm
Product class
Premium
Washer type
Bonded EPDM

Documents

Features & Applications

Features

  • Self-drilling screw for fast assembly in one step
  • Perfect Sealing (PS) feature – specially engineered geometry below the head which prevents over-compression of the EPDM washer, helping to more reliably seal out water
  • Fast and robust drill tip for use on high-strength steel (up to grade S 450 GD) with Racing Tip technology – a wave-form cutting edge which removes chips much faster and helps prevent point burn-out
  • For more reliable fastenings with defined load values
  • Attractive final appearance – screw head can be coloured to match the façade

Applications

  • Fastening sheet metal and profiles to steel substructures and framing, with or without intermediate insulation layers
  • Stainless steel (A2) for fastening in mildly corrosive environments
  • Thick metal-to-metal connections (up to 15 mm)
  • For applications requiring watertight fastenings with 16 mm washer
