S-WD 11 Z M Wing-tip self-drilling screws

Wood screw S-WD11Z 3,8x41 M #413806

Configurator
Technical Data
Documents
Features & Applications
Related Products
S-WD 11C 3.8xL
L029385_cropped (194675)

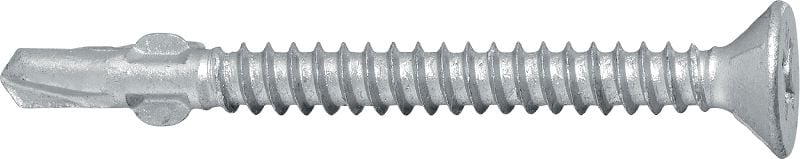

Collated wing-tip wood screw (zinc-plated) for the SMD 57 screw magazine – for fastening wood or cement boards to metal

  • Screw drive/recess type: PH #2
  • Base materials: Metal
  • Environmental conditions: Dry indoor
premium

Choose options

Thickness fastened range MF
  • 10 - 26 mm
Length
  • 41 mm
Pack size
  • 1000 pc
 Product options
Quantity
Packs
Total Pieces
1000
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
SR 1,000.00
SR 1.00 / 1 Piece

Technical Data

Screw drive/recess type
PH #2
Base materials
Metal
Environmental conditions
Dry indoor
Screw diameter d
3.8 mm
Length
41 mm
Product class
Premium
Washer type
none

Documents

Reference document
Technical information
pdf Powder-actuated fasteners and fastening screws in steel construction, Reprint from Stahlbau-Kalender 2019, Ernst & Sohn, English [ 7 MB ]

Features & Applications

Features

  • Designed for use with the SMD 57 magazine and SD 5000-A22, SD 5000, SD 6000 and SD 2500 drivers
  • High driving frequency – get more done in less time
  • Optimised system of collated screws, magazines and plasterboard screwdrivers
  • Wings help to prevent thread engagement in wood

Applications

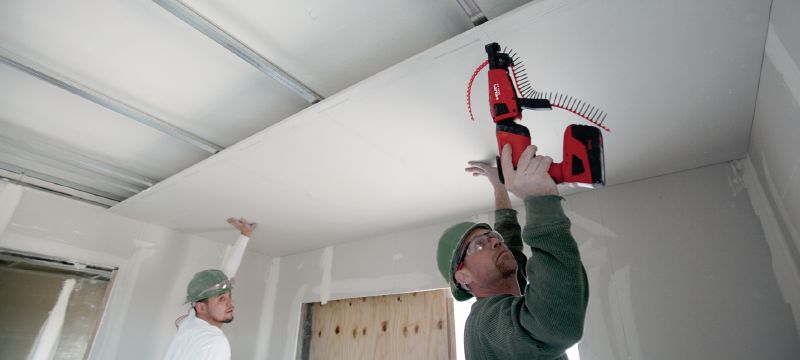

  • Fastening wood boards to metal substructures (0.88-2.25 mm)
  • Fastening cement boards to metal substructures (0.88-2.25 mm)
