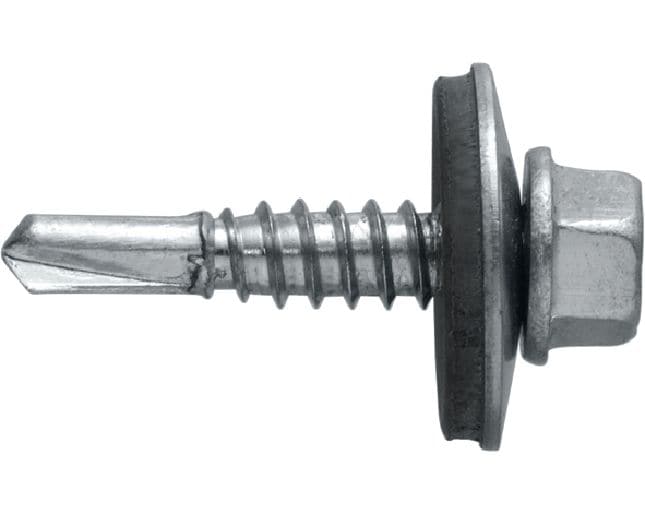

S-MD LS Self-drilling metal screws
Self-drill screw S-MD51LS 5,5x50 #2166430
Self-drilling screw (A2 stainless steel) with washer for thin-medium metal-to-metal fastenings (up to 4 mm)
- Screw drive/recess type: Hexagon 8
- Washer size: 16 mm
- Base materials: Carbon steel, Aluminium
premium
Choose options
Thickness fastened range MF
- 1.2 - 30 mm
Length
- 50 mm
Pack size
- 250 pc
Quantity
Packs
Total Piece
250
Discounted net
SR 866.25
SR 3.46 / 1 Piece
Technical Data
Screw drive/recess type
Hexagon 8
Washer size
16 mm
Base materials
Carbon steel, Aluminium
Environmental conditions
Dry indoor, Indoor with temporary condensation, Outdoor with low pollution, Outdoor with moderate concentration of pollution
Screw diameter d
5.5 mm
Length
50 mm
Screw head diameter
10 mm
Product class
Premium
Washer type
Bonded EPDM
Documents
Features & Applications
Features
- Self-drilling screw for fast assembly in one step
- Reliable, corrosion-resistant fastenings
- EPDM rubber washer – creates a more reliable seal against water
- Fast and robust drill tip
- For reliable fastenings with defined load values
Applications
- Fastening sheet metal and profiles to steel substructures and framing, with or without intermediate insulation layers
- Stainless steel (A2) for fastening in mildly corrosive environments
- Thin metal-to-metal connections (up to 4 mm)
- Fastening trapezoidal metal sheets to liner trays
