S-MD 53Z Self-drilling metal screws

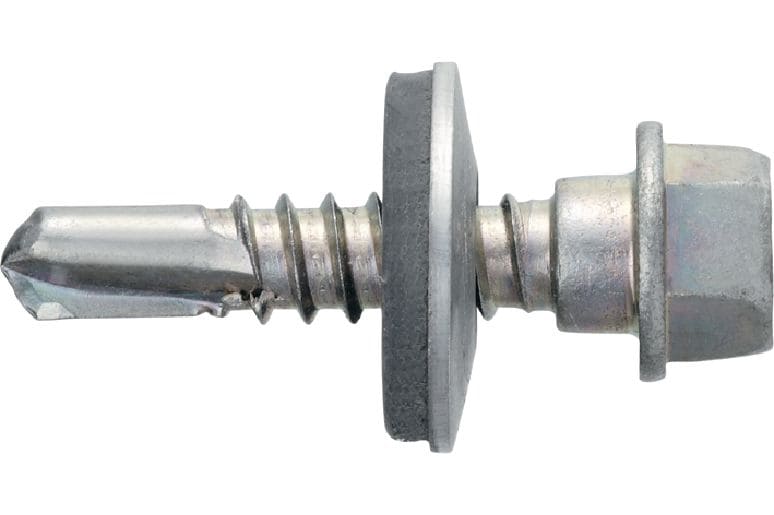

Self-drill screw S-MD53Z 6,3x25 #413446

Self-drilling screw (zinc-plated carbon steel) with 16 mm washer for medium-thick metal-to-metal fastenings (up to 6 mm)

  • Screw drive/recess type: Hexagon 8
  • Washer size: 16 mm
  • Base materials: Carbon steel
premium

Customers also searched for metal screwsscrew fasteningssteel sheeting fasteningfastening steel or screws.

Choose options

Thickness fastened range MF
  • 2.6 - 10 mm
Length
  • 25 mm
Pack size
  • 500 pc
Product options
Quantity
Packs
Total Piece
500
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

SR 932.00

SR 1.86 / 1 Piece

Technical Data

Screw drive/recess type
Hexagon 8
Washer size
16 mm
Base materials
Carbon steel
Environmental conditions
Dry indoor
Screw diameter d
6.3 mm
Length
25 mm
Screw head diameter
10 mm
Product class
Premium
Washer type
Bonded EPDM

Documents

Features & Applications

Features

  • Self-drilling screw for fast assembly in one step
  • Perfect Sealing (PS) feature – specially engineered geometry below the head which prevents over-compression of the EPDM washer, helping to reliably seal out water
  • Fast and robust drill tip with Racing Tip technology – a wave-form cutting edge which removes chips much faster and helps prevents point burn-out
  • For reliable fastenings with defined load values
  • Attractive final appearance – screw head can be coloured to match the façade

Applications

  • Fastening sheet metal and profiles to steel substructures and framing, with or without intermediate insulation layers
  • Galvanised carbon steel for fastening in dry, indoor environments
  • Thin to medium-thick metal-to-metal connections (up to 6 mm)
  • For applications requiring watertight fastenings with 16 mm washer
