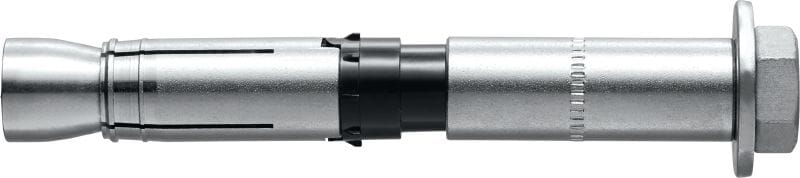

HSL-3-R Heavy-duty wedge anchor

Heavy-duty anchor HSL-3-R M12 25/-/- #2159983

Configurator
Technical Data
Documents
Features & Applications
Related Products
L102720 (182498)

Ultimate-performance removable heavy-duty wedge anchor with approvals for fire, seismic and cracked concrete (A4 stainless steel, hex head)

  • Material, corrosion: Stainless steel, A4
  • Head configuration: Hex head
  • Approvals / test reports: ETA, Fire, Seismic

Choose options

Anchor size
  • M12
Anchor length
  • 124 mm
Pack size
  • 20 pc
 Product options
Quantity
Packs
Total Pieces
20
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
SR 3,580.00
SR 179.00 / 1 Piece

Technical Data

Material, corrosion
Stainless steel, A4
Head configuration
Hex head
Approvals / test reports
ETA, Fire, Seismic
PROFIS software
Yes

Documents

Approval document
Brochure
Operating Instruction
pdf ETA 02/0042 for HSL-3 heavy-duty expansion anchor, English, German, French, Polish [ 6 MB ]

Features & Applications

Features

  • Combining high tension and shear load resistance along with an easy and reliable installation, HSL-3 are a safe and cost efficient alternative to classical fastening solution such as studs or chemical anchors
  • Excels in cracked concrete from C20/25 to C50/60
  • Extreme shear load resistance thanks to high strength sleeve
  • Backed by both international ETA and ICC-ESR approvals
  • Collapsing element prevents anchor from spinning in the hole and ensures reliable clamping of the fixture

Applications

  • Structural steel
  • Curtain walls
