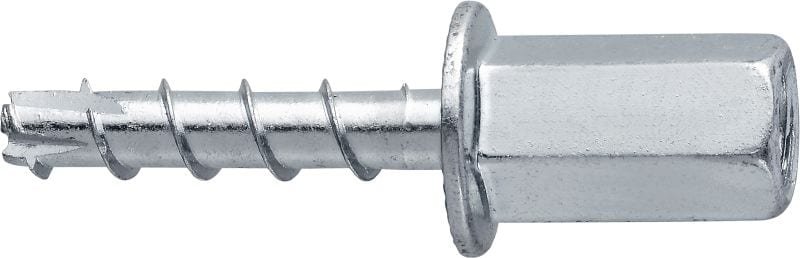

HUS3-I 6 Concrete screw anchor

Ultimate-performance screw anchor for quicker permanent fastening in concrete (carbon steel, internally multi-threaded head)

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Inner thread
  • Approvals / test reports: ETA, Fire, VDS

Customers also searched for screw anchorsreusable anchorsadjustable anchorinternal thread anchor or anchoring.

Choose options

Quantity
Total Pieces
NaN
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

No products available

Please Contact us to find a solution.

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Inner thread
Approvals / test reports
ETA, Fire, VDS
Base materials
Concrete (cracked), Masonry (solid)
Type of fastening
Pre-fastening
Reusable (and removable)
Not possible
Cleaning procedures
Manual cleaning
PROFIS software
Yes
Environmental conditions
Dry indoor
Installation direction
All
Material composition
Steel, zinc-plated (min. 5 µm)

Documents

Features & Applications

Features

  • Higher productivity – less drilling and fewer operations than with conventional anchors
  • M8 and M10 internally threaded heads for direct attachment of threaded rods
  • Simplifies work - optimized for seismic C1/C2 applications and suitable for single point fastenings
  • More reliable and easy to set – HSE product profile available
  • Innovative cutting edge geometry for superior setting characteristics

Applications

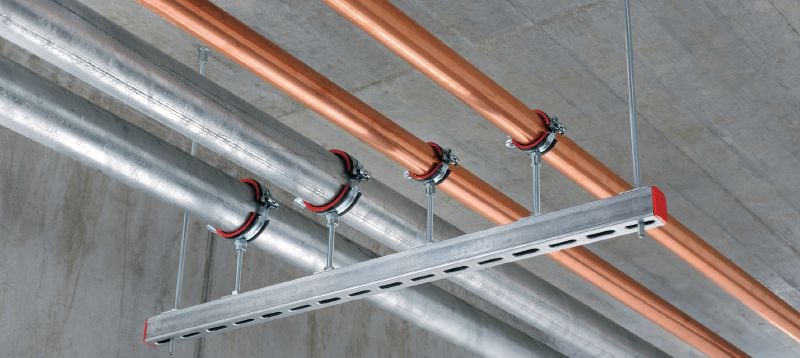

  • Various pipe or ventilation system installation applications

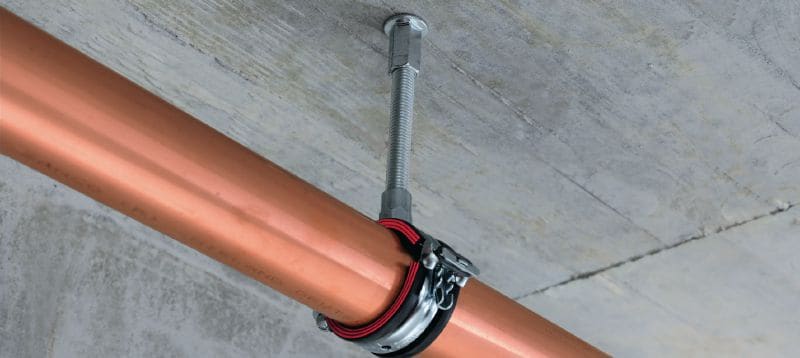

  • Threaded rod hangers for single or multiple pipes
  • Suitable for repetitive installation tasks

For approval or certificate information, please see individual items.
