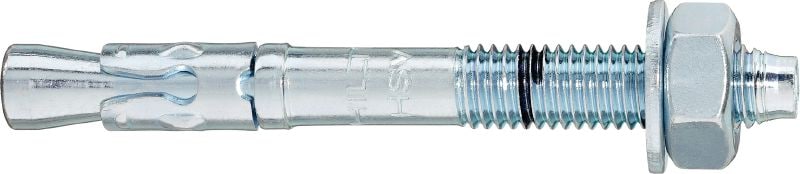

HSV Wedge anchor
Economical wedge anchor for static loads uncracked concrete (carbon steel)
- Material, corrosion: Carbon steel, zinc-plated
- Head configuration: Externally threaded
- Approvals / test reports: N/A
Customers also searched for Stud anchor, stud bolt, expansion anchor, economical steel anchors or anchoring.
Choose options
Anchor size
- M8
- M10
- M12
Anchor length
- 75 mm
- 100 mm
- 110 mm
Pack size
- 30 pc
- 50 pc
- 100 pc
Quantity
Packs
Total Pieces
1
Discounted net
From SR 128.25
Technical Data
Material, corrosion
Carbon steel, zinc-plated
Head configuration
Externally threaded
Approvals / test reports
N/A
Base materials
Concrete (non-cracked)
Type of fastening
Pre-fastening, Through-fastening
PROFIS software
No
Documents
Features & Applications
Features
- Made from cold-formed carbon steel, zinc-plated to 5µm
- Two embedment depths for a wide range of fastening thicknesses
- Setting mark for easy checking of correct installation depth
- Raised impact section prevents thread damage during installation
- Pre-assembled to save time
Applications

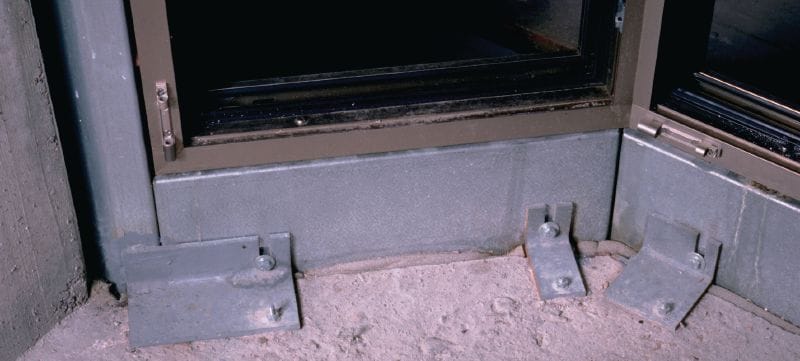

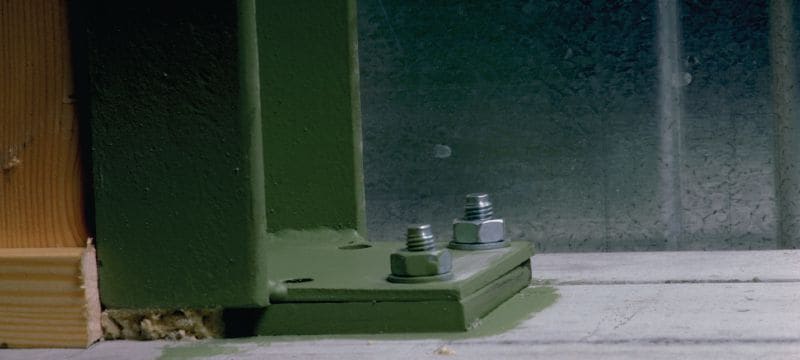

- Wide range of applications in uncracked concrete
For approval or certificate information, please see individual items.
