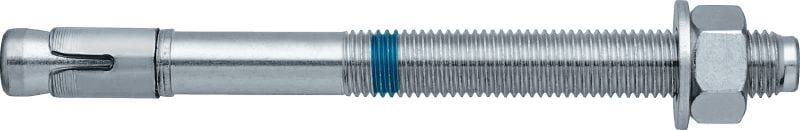

HSA Wedge anchor
High-performance wedge anchor for everyday static in uncracked concrete (carbon steel)
- Material, corrosion: Carbon steel, zinc-plated
- Head configuration: Externally threaded
- Approvals / test reports: ETA
Customers also searched for Stud anchor, stud bolt, expansion anchor, kwik bolt or anchoring.
Choose options
Anchor size
- M6
- M8
- M10
- M12
- M16
- M20
Anchor length
- 50 mm
- 55 mm
- 65 mm
- 68 mm
- 70 mm
- 83 mm
- 85 mm
- 98 mm
- 100 mm
- 102 mm
- 113 mm
- 115 mm
- 117 mm
- 125 mm
- 130 mm
- 133 mm
- 137 mm
- 145 mm
- 170 mm
- 182 mm
- 232 mm
Pack size
- 10 pc
- 16 pc
- 25 pc
- 40 pc
- 50 pc
- 80 pc
- 100 pc
- 200 pc
Quantity
Packs
Total Pieces
1
Discounted net
From SR 146.25
Technical Data
Material, corrosion
Carbon steel, zinc-plated
Head configuration
Externally threaded
Approvals / test reports
ETA
Type of fastening
Pre-fastening, Through-fastening
Installation tools
SIW 4AT-22 ½” Cordless impact wrench
PROFIS software
Yes
Documents
Features & Applications
Features
- First ETA-compatible stud anchor for torque-controlled setting using an impact wrench and Hilti torque bar for higher productivity in serial applications
- Excellent edge and spacing distances
- 3 embedment depths offering maximum flexibility
Applications

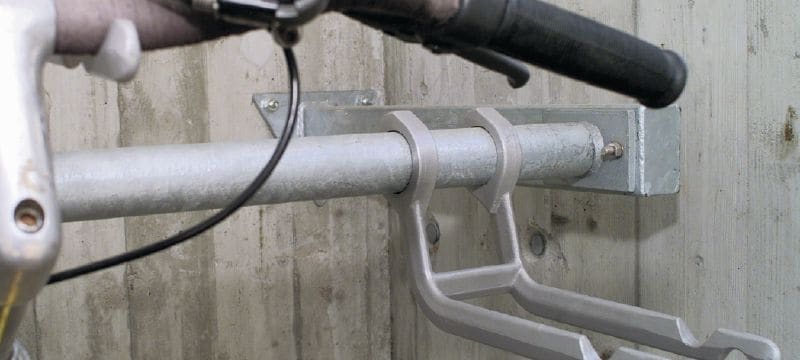

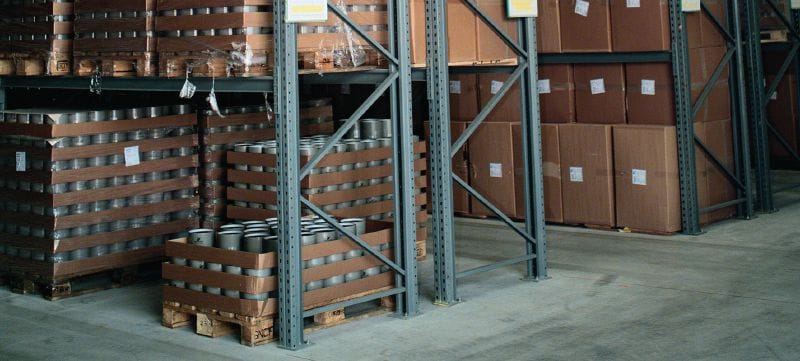

- Wide range of fastening applications in un-cracked concrete
- Handrails and balustrades
- Ladders and staircases
- Guard rails
For approval or certificate information, please see individual items.
