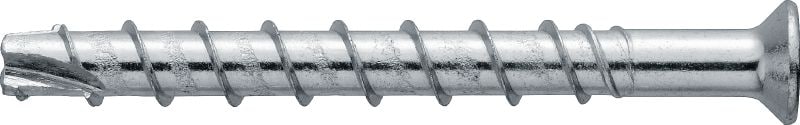

HUS3-C 6 Screw anchor
Ultimate-performance screw anchor for quicker permanent fastening in concrete (carbon steel, countersunk head)
- Material, corrosion: Carbon steel, zinc-plated
- Head configuration: Countersunk Torx
- Approvals / test reports: ETA, Fire, VDS
Technical Data
Material, corrosion
Carbon steel, zinc-plated
Head configuration
Countersunk Torx
Approvals / test reports
ETA, Fire, VDS
Base materials
Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (solid)
Reusable (and removable)
Not possible
Cleaning procedures
Manual cleaning
PROFIS software
Yes
Environmental conditions
Dry indoor
Material composition
Steel, zinc-plated (min. 5 µm)
Documents
Features & Applications
Features
- Higher productivity – less drilling and fewer operations than with conventional anchors
- Neat head design saves time – no finishing required
- More reliable and easy to set – HSE product profile available
- Unbeaten for overhead installation – greatly simplifies the work
- Removable
Applications

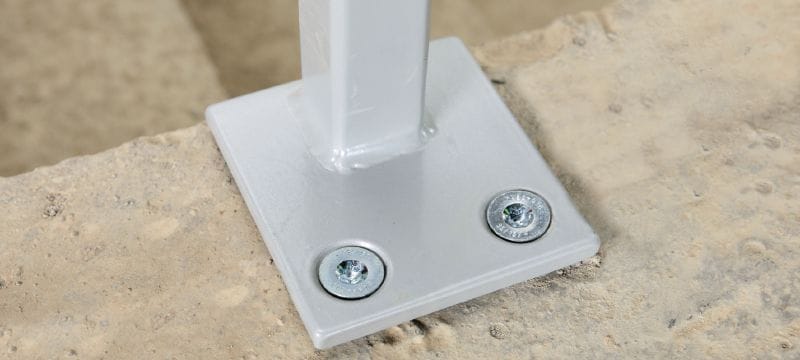

- Fastening handrails, railings and other ornamental steelwork
- Architectural steel plates
- Piping or ventilation applications
For approval or certificate information, please see individual items.
