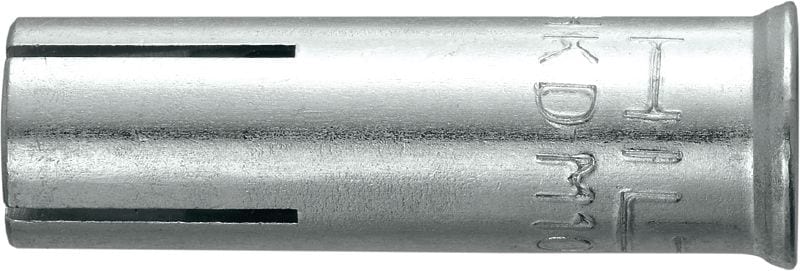

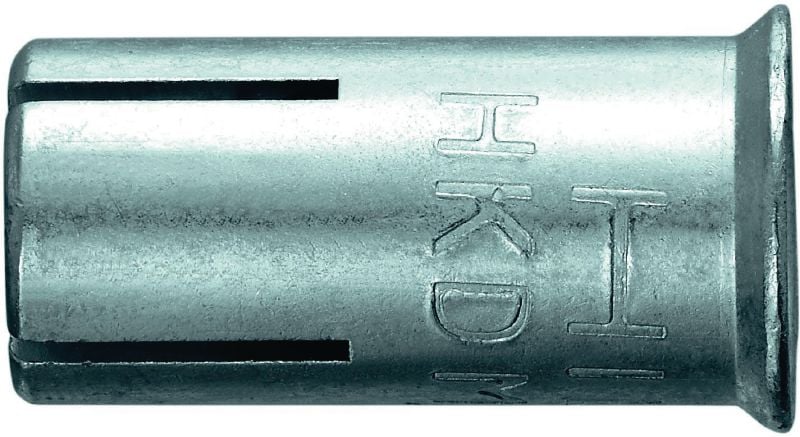

HKD Drop-in anchor (metric)
High-performance carbon steel tool-set drop-in anchor with metric thread
- Environmental conditions: Dry indoor
- Approvals / test reports: DIBt, ETA, Fire, FM (Factory Mutual)
- Material, corrosion: Carbon steel, zinc-plated
Customers also searched for drop-in anchor, flush anchor, internal thread anchor, pipe ring fixing or anchoring.
Choose options
Internal thread size
- 6 mm
- 8 mm
- 10 mm
- 12 mm
- 16 mm
- 20 mm
Anchor length
- 25 mm
- 30 mm
- 40 mm
- 50 mm
- 65 mm
- 80 mm
Anchor size
- M6
- M8
- M10
- M12
- M16
- M20
Pack size
- 1 pc
- 25 pc
- 50 pc
- 100 pc
Quantity
Packs
Total Pieces
1
Discounted net
From SR 77.20
Technical Data
Environmental conditions
Dry indoor
Approvals / test reports
DIBt, ETA, Fire, FM (Factory Mutual)
Material, corrosion
Carbon steel, zinc-plated
Base materials
Concrete (cracked), Concrete (uncracked)
PROFIS software
Yes
Documents
Features & Applications
Features
- “Intelligent” stepped expansion cone allows easy, correct setting even in harder materials
- Available in a variety of sizes for maximised coverage of applications
- Visual check for correct setting when used with the Hilti setting tool
- Features a lip for flush setting regardless of hole depth
- Shallow drilling depth (25 mm)
Applications

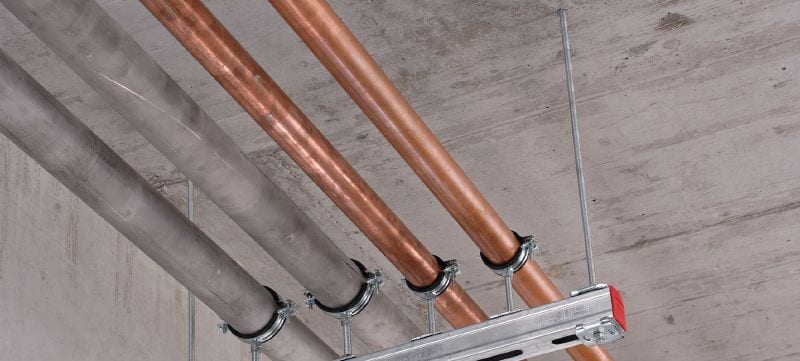

- Medium-duty loads with anchor bolts and threaded rods, e.g. suspension systems for pipes, air ducts, sprinkler systems, etc.
For approval or certificate information, please see individual items.
