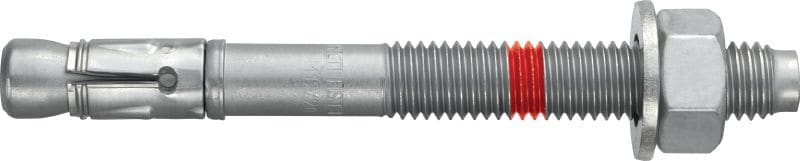

HST3-R Wedge anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
HST3-R M12x115 40/20
HST3 (76002)
5969.tif
77575.tif
HST3 (74487)
HST3 (74484)

Ultimate-performance expansion anchor for cracked concrete under static and seismic conditions (A4 SS)

  • Material, corrosion: Stainless steel, A4
  • Head configuration: Externally threaded
  • Approvals / test reports: ETA, Fire, Seismic

Customers also searched for stud bolt, expansion anchor, stainless steel anchors or anchoring.

Choose options

Anchor size
  • M8
  • M10
  • M16
Anchor length
  • 90 mm
  • 95 mm
  • 135 mm
  • 145 mm
Pack size
  • 12 pc
  • 50 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From SR 852.00

Technical Data

Material, corrosion
Stainless steel, A4
Head configuration
Externally threaded
Approvals / test reports
ETA, Fire, Seismic
Base materials
Concrete (cracked)
Installation tools
DD 30-W Core drill
PROFIS software
Yes
Environmental conditions
Indoor with temporary condensation

Documents

Technical information
Approval document
Brochure
Sustainability Documentation
Operating Instruction
pdf Technical data sheet for the HST3 metal expansion anchor, English [ 1.7 MB ]
pdf Solutions for fastening: Improved design for anchors under shear loading, English [ 1.6 MB ]

Features & Applications

Features

  • High resistance – to meet geometrically challenging requirements, e.g. reduced member thickness or smallest spacing and edge distances
  • Increased undercut percentage in combination with optimized coating
  • Greater flexibility thanks to two embedment depths included in the ETA
  • Minimum edge and spacing distances reduced by up to 25% compared to HST expansion anchors

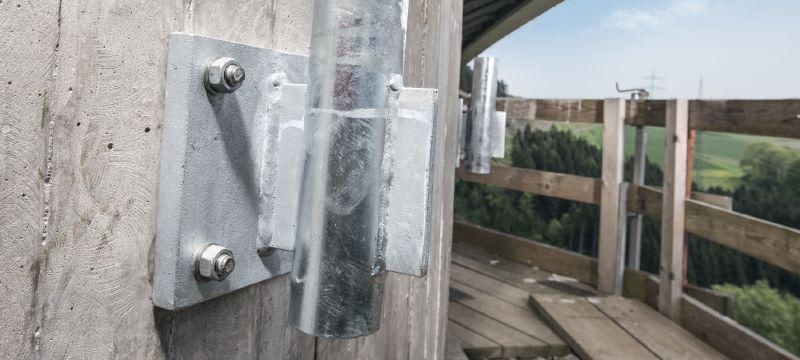

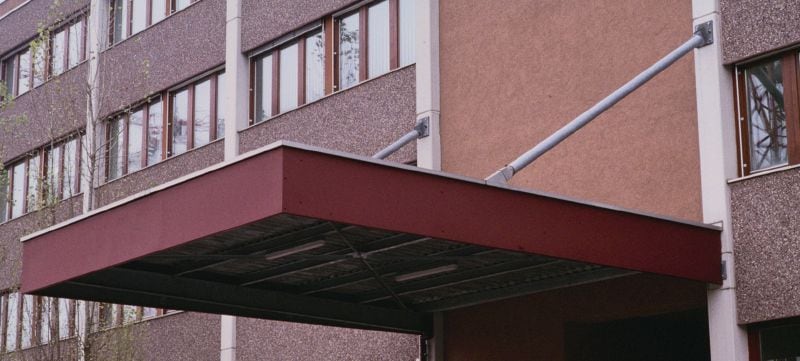

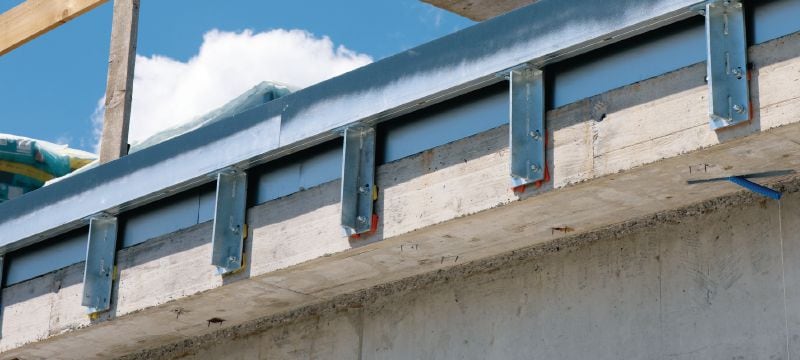

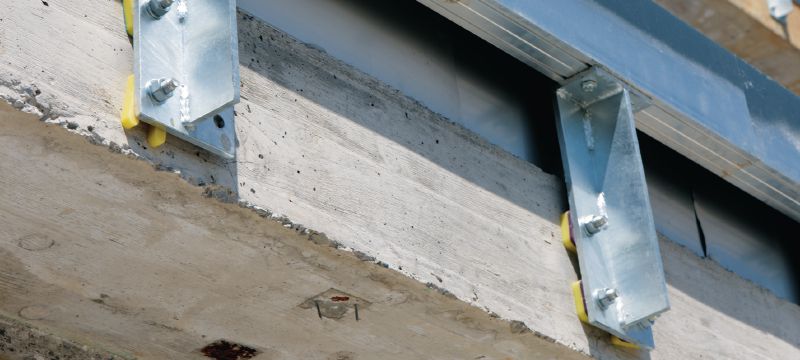

Applications

  • Particularly suited to safety-relevant applications in corrosive environments
  • All safety-relevant fastenings in cracked and uncracked concrete
  • All safety-relevant fastenings in seismic loading conditions, category C1 for non-structural elements and category C2 for structural elements

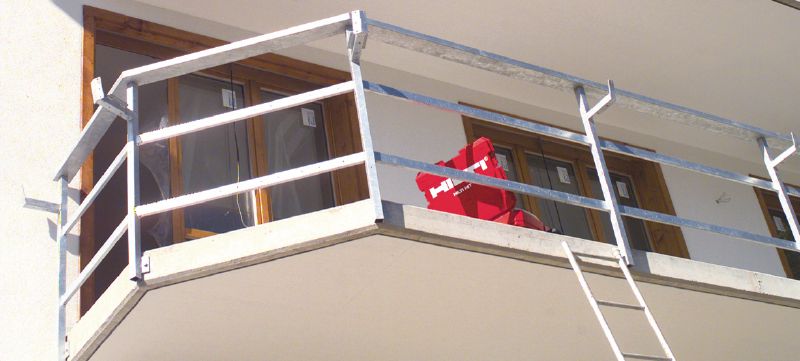

  • Handrails

For approval or certificate information, please see individual items.
